Hobson WRMSZS012004003 1/8" x 3/64" Imperial Spring Washer, Flat Section, Zinc Plated
Available
This page lists 25 items of the Hobson imperial spring washer, flat section (mild steel, zinc plated): 1/8" to 1-1/2".

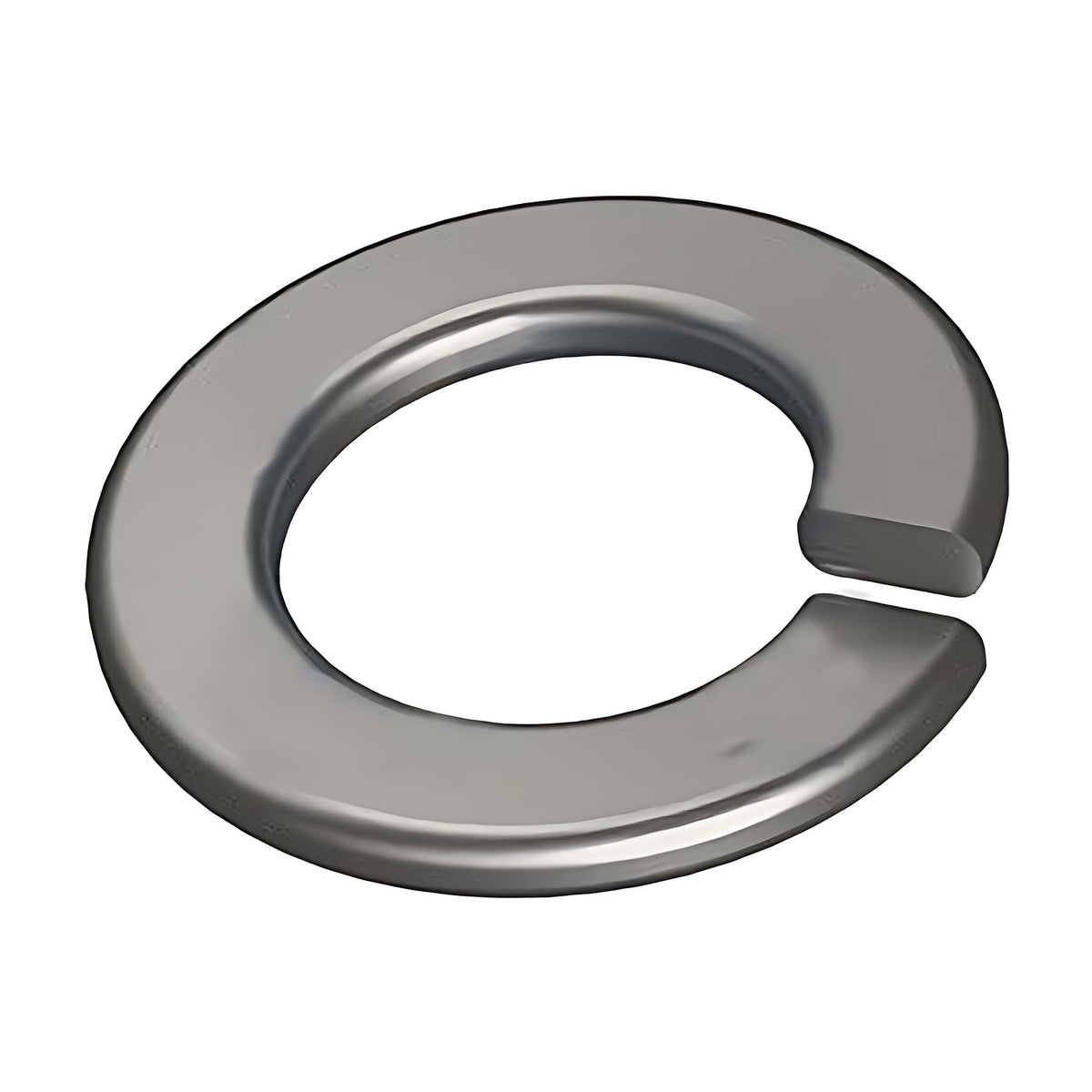

A spring washer is a split ring fitted under a nut or bolt head. In a flat section spring washer the ring is cut from flat strip, so its cross-section is a rectangle.
Pack quantity varies by size and is shown for each item in the table.
Where this product is used
- Fitted under a nut or bolt head as a spring washer
- Where an assembly calls for a spring washer under the nut
Features
- 25 items: 1/8" to 1-1/2"
- Mild steel, zinc plated
- Dimensions shown as listed by the supplier
- Pack quantity shown for each item
Common specifications
| Specification | Detail |
|---|---|
| Sizes | 1/8" to 1-1/2" |
| Material | Mild steel |
| Finish | Zinc plated |
Key specifications
| Model | Size | Listed dimensions | Supplied as |
|---|---|---|---|
| WRMSZS012004003 | 1/8" | 1/8" x 3/64" | Box of 200 |
| WRMSZS015006004 | 5/32" | 5/32" x 1/16" | Box of 200 |
| WRMSZS018006004 | 3/16" | 3/16" x 1/16" | Box of 200 |
| WRMSZS018009006 | 3/16" | 3/16" x 3/32" | Box of 200 |
| WRMSZS025012006 | 1/4" | 1/4" x 1/8" | Box of 200 |
| WRMSZS025009006 | 1/4" | 1/4" x 3/32" | Box of 200 |
| WRMSZS031012007 | 5/16" | 5/16" x 1/8" | Box of 200 |
| WRMSZS031014009 | 5/16" | 5/16" x 9/64" | Box of 200 |
| WRMSZS037012009 | 3/8" | 3/8" x 1/8" | Box of 200 |
| WRMSZS037015009 | 3/8" | 3/8" x 5/32" | Box of 200 |
| WRMSZS043018012 | 7/16" | 7/16" x 3/16" | Box of 200 |
| WRMSZS043015009 | 7/16" | 7/16" x 5/32" | Box of 200 |
| WRMSZS050018012 | 1/2" | 1/2" x 3/16" x 1/8" | Box of 200 |
| WRMSZS050018015 | 1/2" | 1/2" x 3/16" x 5/32" | Box of 200 |
| WRMSZS056018012 | 9/16" | 9/16" x 3/16" x 1/8" | Box of 200 |
| WRMSZS062022018 | 5/8" | 5/8" x 7/32" x 3/16" | Box of 100 |
| WRMSZS062022015 | 5/8" | 5/8" x 7/32" x 5/32" | Box of 200 |
| WRMSZS075025018 | 3/4" | 3/4" x 1/4" x 3/16" | Box of 100 |
| WRMSZS087025022 | 7/8" | 7/8" x 1/4" x 7/32" | Box of 100 |
| WRMSZS087031025 | 7/8" | 7/8" x 5/16" x 1/4" | Box of 50 |
| WRMSZS100031025 | 1" | 1" x 5/16" x 1/4" | Box of 100 |
| WRMSZS112031025 | 1-1/8" | 1-1/8" x 5/16" x 1/4" | Box of 25 |
| WRMSZS125037031 | 1-1/4" | 1-1/4" x 3/8" x 5/16" | Box of 25 |
| WRMSZS125031025 | 1-1/4" | 1-1/4" x 5/16" x 1/4" | Box of 25 |
| WRMSZS150037025 | 1-1/2" | 1-1/2" x 3/8" x 1/4" | Box of 25 |
Selecting the right option
Choose the washer by the bolt size it is made for, then check the dimensions in the table against your joint. Zinc plating is a thin zinc coating; hot dip galvanised washers carry a thicker one.
