Maxigear Diamond Wheel Dresser, WDD0.25x6 to WDDT

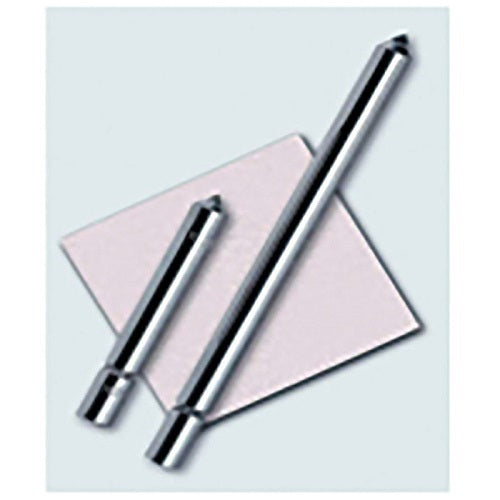

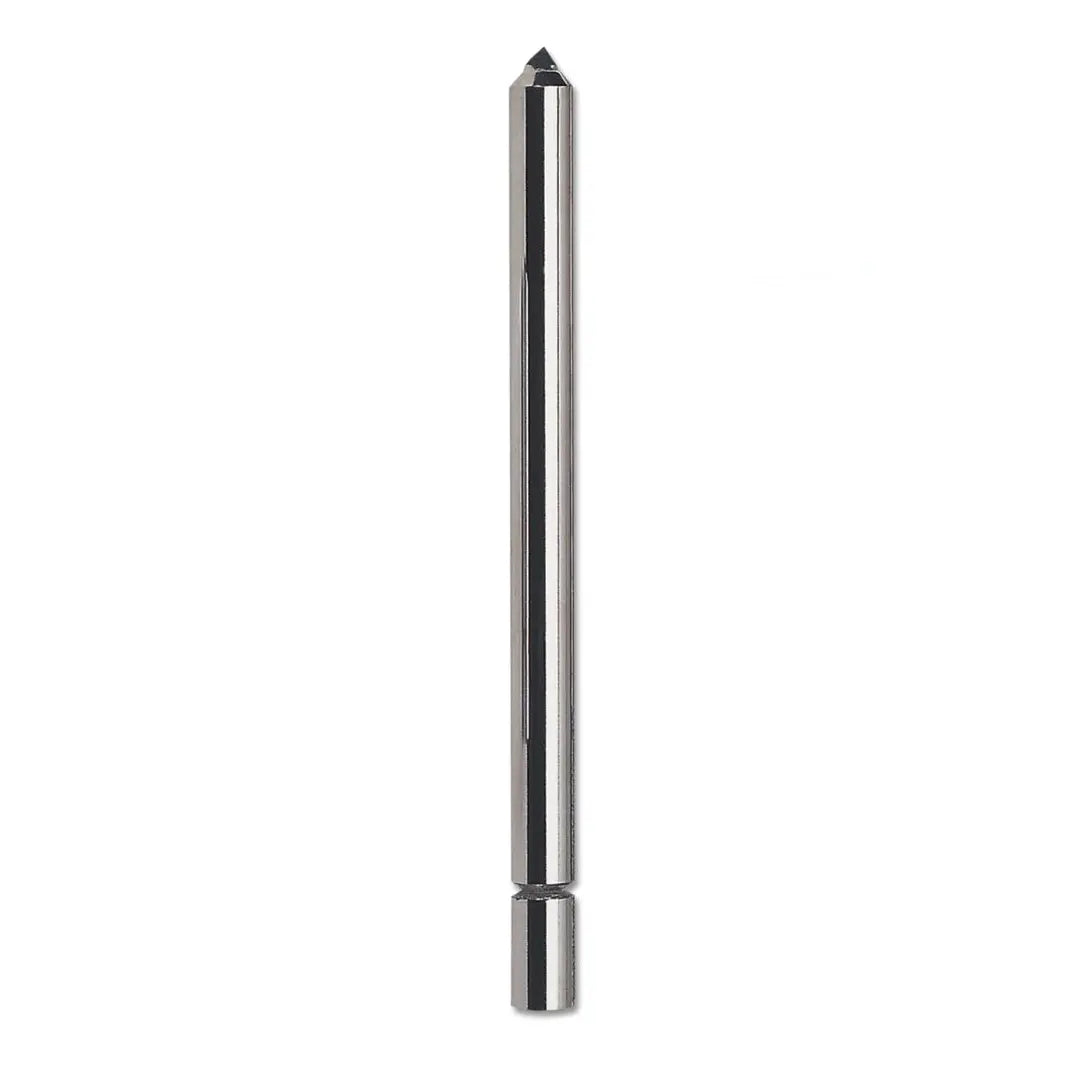

Maxigear diamond wheel dressers are available in seven part numbers: six with a 12.7 x 150mm shank in 0.25, 0.5, 0.75, 1, 1.5 and 2 carat, and the T-Pattern WDDT, 0.5 carat with a 40 x 120mm shank.

Industrial diamonds for dressing wheels on surface grinders, universal grinders and similar machines. Each part number has its own diamond size and shank size.

Where this product is used

• Dressing wheels on surface grinders, universal grinders and similar machines

Features

• Industrial diamond, from 0.25 to 2 carat across the part numbers
• Shank size 12.7 x 150mm on the straight pattern dressers
• WDDT T-Pattern with a 40 x 120mm shank
• Part numbers: WDD0.25x6 to WDDT (7 part numbers)

Key specifications

Choosing the right option

Choose by diamond size: the straight dressers run from 0.25 carat (WDD0.25x6) to 2 carat (WDD2.0x6) on a 12.7 x 150mm shank, and the WDDT is the T-Pattern with a 0.5 carat diamond and a 40 x 120mm shank. WDD0.5 and WDDT are both 0.5 carat but differ in pattern and shank. For cast iron dressers with cutter wheels see the WD0 and WD1 wheel dressers.

Cast iron wheel dressers: WD0 and WD1, No. 2 large.
