M6 x 3.2mm Lag/swage Rigging Screw, 316 Stainless Steel - RLSA4M5X32

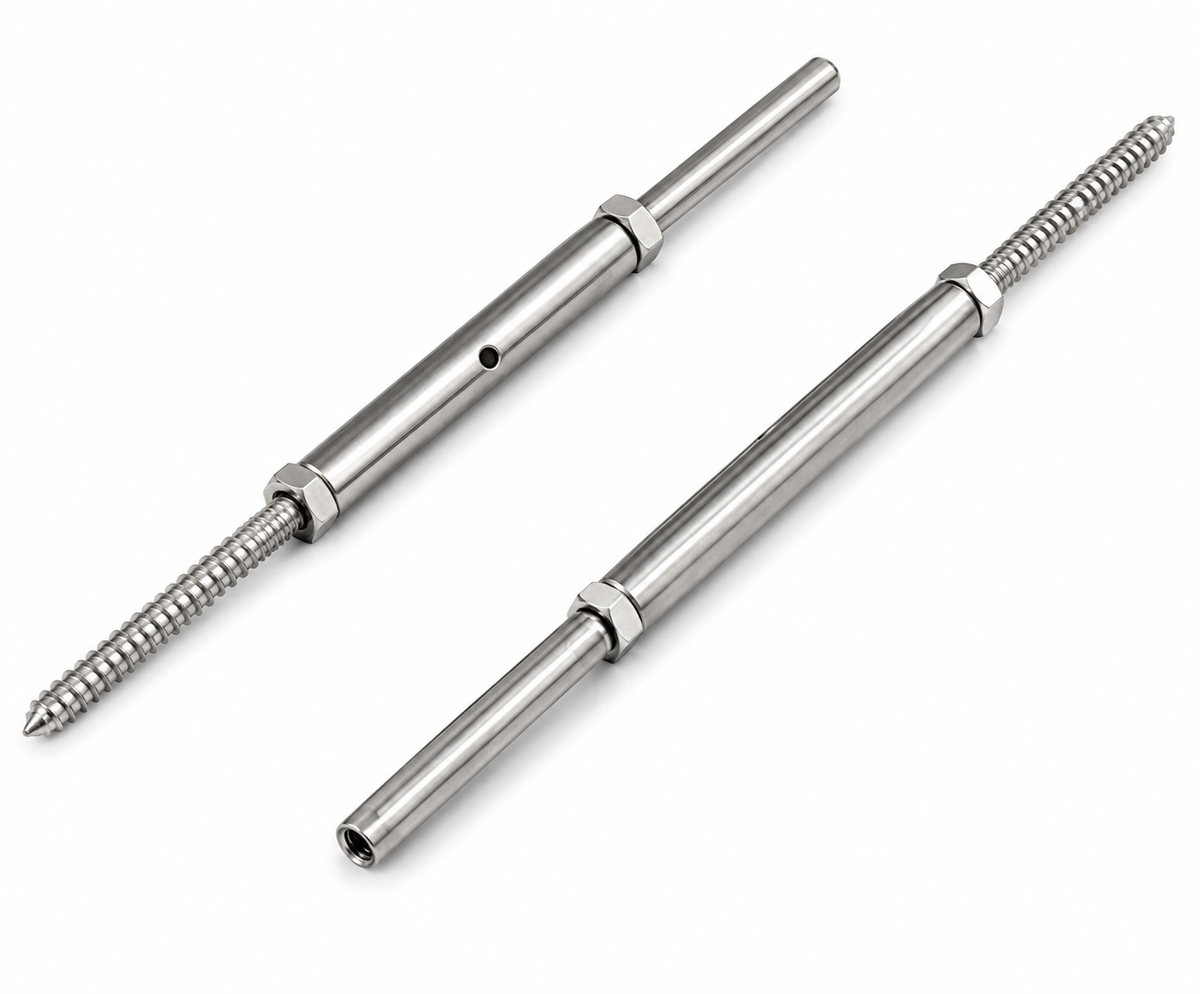

Made in 316 (A4) stainless steel, the Rigging Screw Lag/Swage is a rigging screw that tensions wire rope. It has a lag-style threaded end and a swage end for wire rope, and turning the body tightens or loosens the line.

A4 (316) stainless steel contains molybdenum (about 2 to 3 per cent), which improves its resistance to chlorides. It is the grade normally chosen for coastal, pool, marine and food-processing settings, and it costs more than A2 (304).

This listing covers one size: M6 x 3.2mm. Each variant is supplied in packs of 10.

Austenitic stainless steel is generally non-magnetic, although cold-worked parts can show weak magnetism. In wet conditions, keep stainless steel apart from aluminium and galvanised steel with a washer or sleeve, to reduce the risk of galvanic corrosion.

Where this product is used

• Coastal and marine installations
• Coastal and architectural fittings
• Boat, jetty and waterfront structures
• Balustrade and wire fencing
• Marine rigging, boat and yacht fittings

Features

• A4 (316) stainless steel with molybdenum, for coastal and chloride-exposed settings
• Supplied in packs of 10
• Swage end is pressed onto the wire rope
• Adjusts the tension of a wire rope run

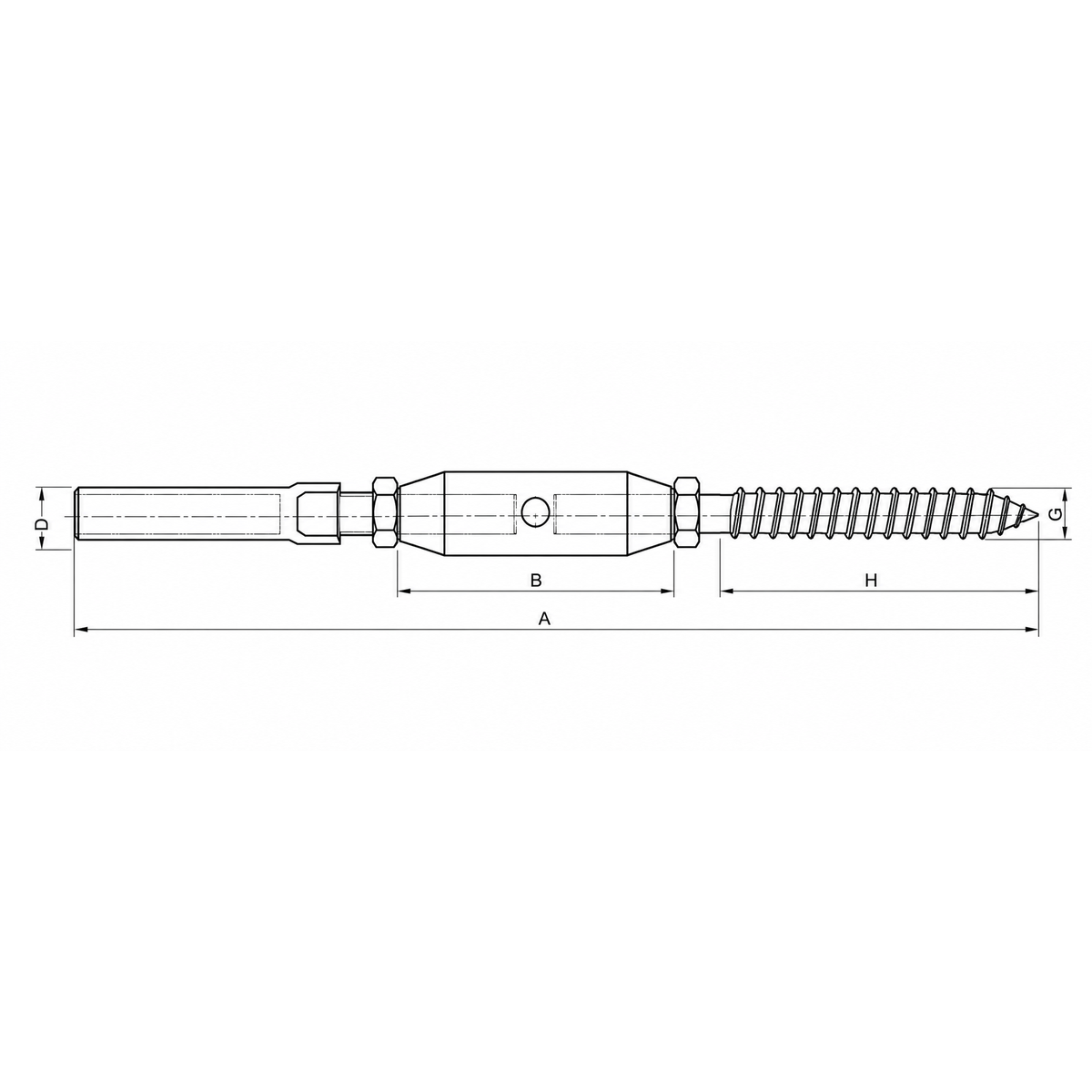

Key specifications

Selecting the right option

Choose the rigging screw by the thread size and the wire rope diameter listed on the variant. A swaging tool is needed for the swage end, and the thread should be lubricated with anti-seize.

Important

This product is not stated as lifting rated in the supplier data. Do not use it to lift or suspend people or loads unless it is marked with a working load limit (WLL). Rigging and lifting hardware should be selected, inspected and used in line with your site procedures and the relevant Australian Standards, and a qualified rigger should be consulted for any lift.
