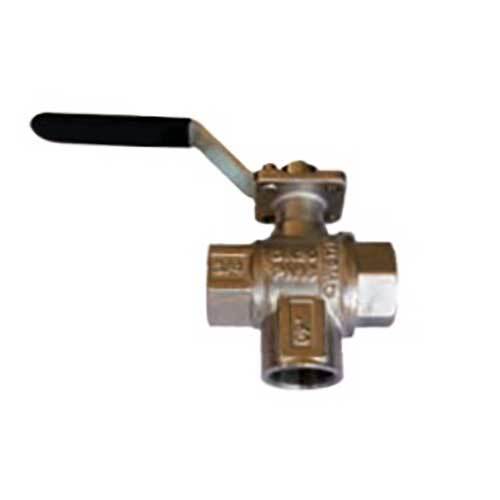

AAP Brass Ball Valve 3-way L-Port PN10

• For flow to medium gas applications. Can also be used forificertain chemicals and oils

MATERIAL LISTS
PART
MATERIAL
Body
Brass (Nickel Plated)
Seat Retainer
Brass (Nickel Plated)
Seat
P.T.F.E.
Ball
Brass (Chromium plated)
Stem
Brass
Gland
Brass
Packing
Viton (Double O-Ring)
Lever
Stainless Steel (Plastic Coated)
Lever Retaining Nut
Brass (Nickel Plated)
T-Handle (Optional)
DR Brass

About Ball Valves:

• A ball valve is a valve with a spherical ball with an orifice straight through mounted between teflon seats in either a screwed or flanged body in various materials.
• When the orifice is in line with both ends of the valve flow will occur.
• When the valve is closed the orifice is perpendicular to the ends of the valve.
• The lever/handle will be in line with the orificeposition, an indication of the valve position.

Specifications
Thread
AS1722.1
Max Working Temperature
60°C
Cold Working Pressure
2500kPa
