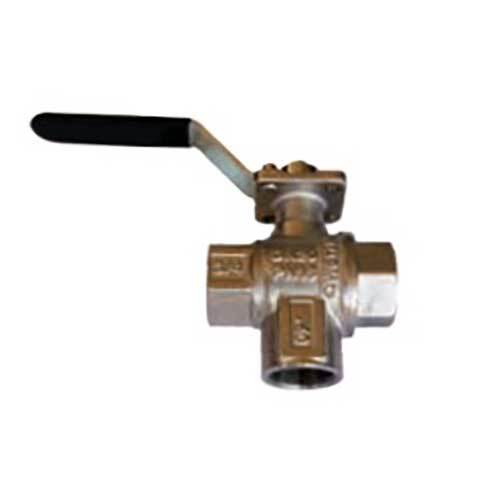

1/4 in (8 mm) Brass 3-Way Ball Valve, T-Port, PN10 | VBBTW08
Available
This AAP brass 3-way ball valve has an T-port ball, is rated PN10 and is listed as a PN10 valve with an ISO 5211 direct mounting pad. It is supplied in 8 sizes from 1/4 in (8 mm) to 2 in (50 mm).
A T-port ball can connect the common port to either of the other two ports and can also connect all three, so it can mix or split flow. The handle shows the position of the ball. AAP does not list the end thread form or the body and seat materials for this range in its catalogue, so confirm those with AIMS where they matter for your duty.
Where this product is used
- Diverting flow between two lines from one supply
- Mixing or splitting flow in water, air and process lines
- Switching a pump or tank between two branches
- Actuated diverting in automated pipework
Features
- 8 sizes from 1/4 in (8 mm) to 2 in (50 mm)
- T-port 3-way ball
- PN10 pressure rating (manufacturer-stated)
- ISO 5211 direct mounting pad for an actuator (manufacturer-stated)
- Brass construction
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Product | Brass 3-way ball valve |
| Port | T-port |
| Rating (manufacturer-stated) | PN10 (nominal pressure 10 bar) |
| Body style (manufacturer-stated) | PN10 valve with an ISO 5211 direct mounting pad |
| Material | Brass |
| Sizes | 1/4 in (8 mm) to 2 in (50 mm) (8 sizes) |
Options and part numbers

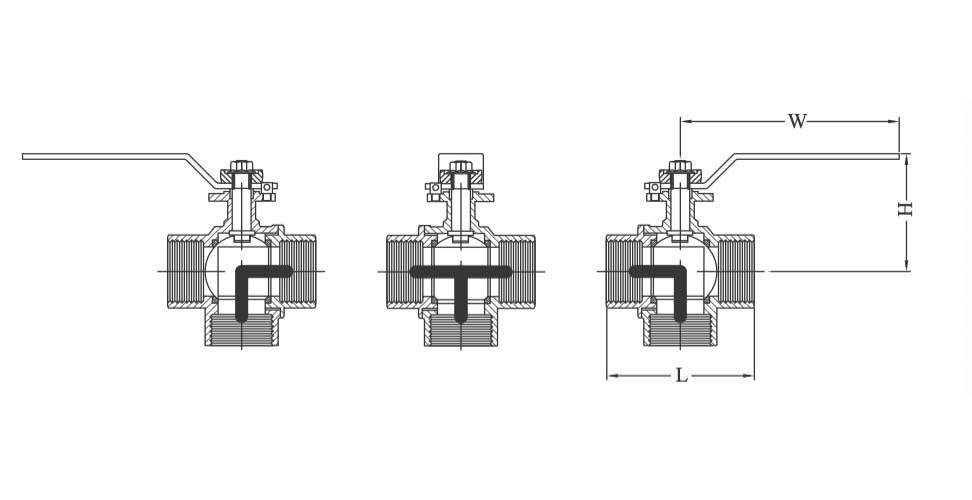

| Size | Part number | Length L (mm) | Handle height H (mm) | Handle length W (mm) | Weight (kg) |
|---|---|---|---|---|---|
| 1/4 in (8 mm) | VBBTW08 | 52 | 42 | 98 | 0.25 |
| 3/8 in (10 mm) | VBBTW10 | 52 | 42 | 98 | 0.25 |
| 1/2 in (15 mm) | VBBTW15 | 64 | 45 | 98 | 0.34 |
| 3/4 in (20 mm) | VBBTW20 | 74 | 57 | 118 | 0.49 |
| 1 in (25 mm) | VBBTW25 | 89 | 60 | 118 | 0.77 |
| 1-1/4 in (32 mm) | VBBTW32 | 100 | 66 | 118 | 1.1 |
| 1-1/2 in (40 mm) | VBBTW40 | 110 | 81 | 153 | 1.64 |
| 2 in (50 mm) | VBBTW50 | 130 | 103 | 170 | 2.66 |
Selecting the right option
Choose the size to match your pipework and pick the port type for the job: L-port to divert between two lines, T-port to mix or split flow. AAP does not list the end thread form for this range, so confirm it with AIMS before you order. The ISO 5211 pad lets an actuator mount directly, so check the pad size against your actuator.
Related products
See also AAP Brass 3-Way Ball Valve, L-Port, PN10, ISO 5211 Pad, AAP Brass 3-Way Ball Valve, L-Port, PN16, Side Entry, AAP Stainless Steel 3-Way Ball Valve, L-Port and AAP Brass Ball Valve, Stainless Steel Lever, Female x Female.
