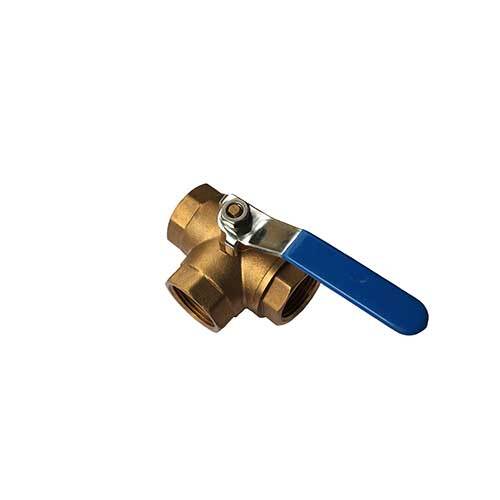

1/2 in (15 mm) Brass 3-Way Ball Valve, L-Port, PN16 | VBBTN315

This AAP brass 3-way ball valve has an L-port ball, is rated PN16 and is listed as a PN16 side-entry valve. It is supplied in 6 sizes from 1/2 in (15 mm) to 2 in (50 mm).

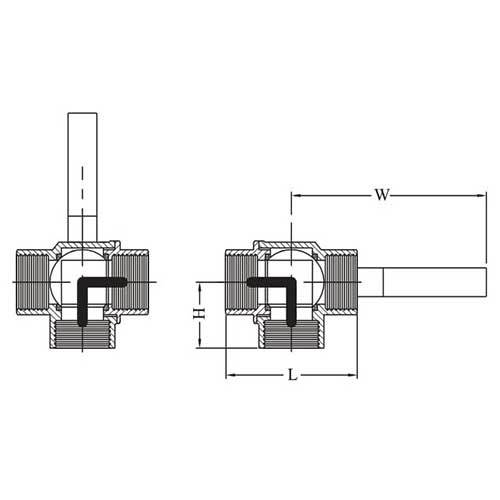

An L-port ball connects the common port to either of the other two ports, so it diverts flow from one line to another. The handle shows the position of the ball. AAP does not list the end thread form or the body and seat materials for this range in its catalogue, so confirm those with AIMS where they matter for your duty.

Where this product is used

• Diverting flow between two lines from one supply
• Mixing or splitting flow in water, air and process lines
• Switching a pump or tank between two branches
• Actuated diverting in automated pipework

Features

• 6 sizes from 1/2 in (15 mm) to 2 in (50 mm)
• L-port 3-way ball
• PN16 pressure rating (manufacturer-stated)
• Side-entry body (manufacturer-stated)
• Brass construction

Key specifications

Options and part numbers

Selecting the right option

Choose the size to match your pipework and pick the port type for the job: L-port to divert between two lines, T-port to mix or split flow. AAP does not list the end thread form for this range, so confirm it with AIMS before you order. This is the PN16 side-entry version, so choose it where the higher pressure class is needed.

Related products

See also AAP Brass 3-Way Ball Valve, L-Port, PN10, ISO 5211 Pad, AAP Brass 3-Way Ball Valve, T-Port, PN10, ISO 5211 Pad, AAP Stainless Steel 3-Way Ball Valve, L-Port and AAP Brass Ball Valve, Stainless Steel Lever, Female x Female.
