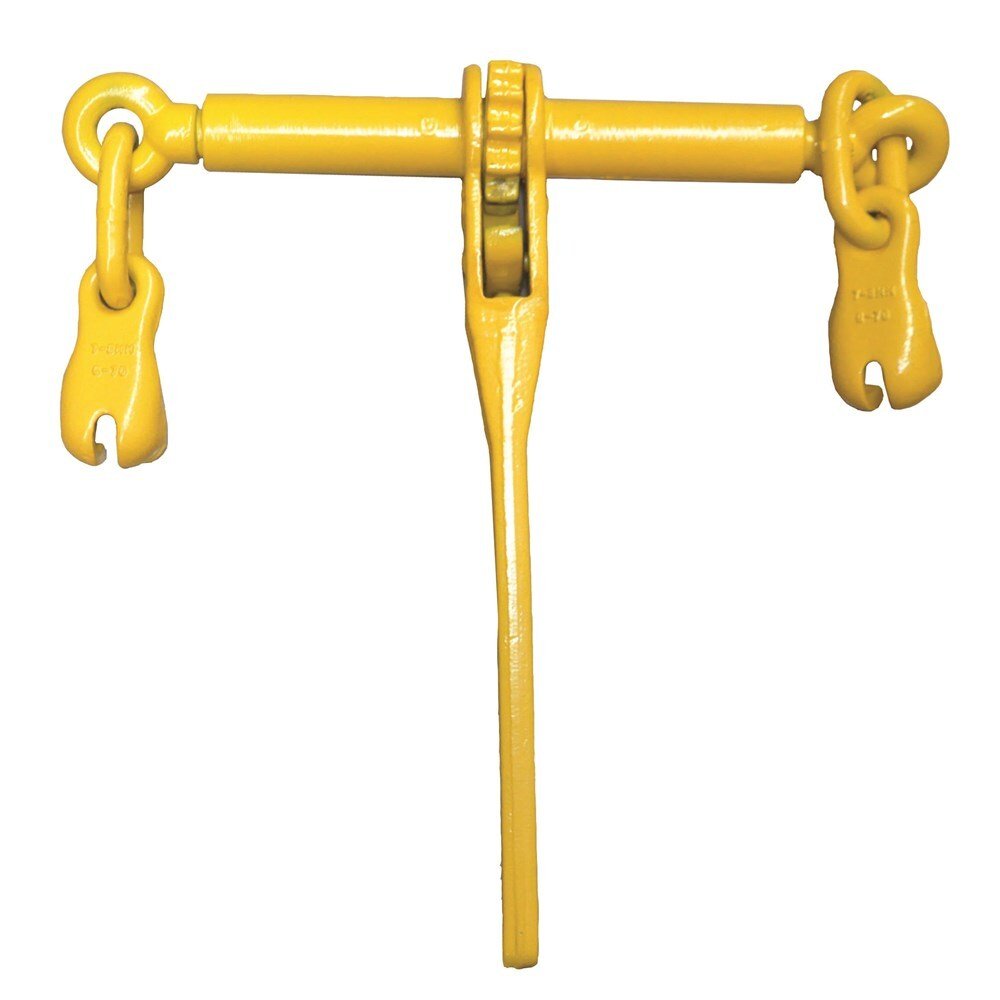

Beaver g70 ratchet loadbinders, chain size (mm) 10

The Beaver G70 ratchet type loadbinder with eye claw hooks tensions Grade 70 transport chain. Lashing capacities (LC) are 3,800kg and 6,000kg.

The loadbinders are to AS/NZS 4344. Grade 70 lashings and fittings are not approved for lifting. Do not use this product to lift or suspend loads; for lifting use a rated lifting product marked with a working load limit (WLL).

Where this product is used

• Tensioning chain over a load on a trailer or truck
• Securing loads for transport

Features

• Ratchet type loadbinder in two chain sizes, 7-8mm and 10mm
• Eye claw hooks
• Yellow painted finish, to AS/NZS 4344
• Lashing capacities of 3,800 and 6,000kg

Key specifications

Supplied with

• Operate by hand only, from a standing position, and stay clear of the handle, as load binding systems store energy that can release suddenly
• Inspect the loadbinder before each use for wear, bending, cracks and gouges, and replace it if any are present
• Use only the appropriate size and grade of chain with the loadbinder
• Do not use handle extensions such as pipes or cheater bars, as they can overload and weaken the system
• Check the loadbinder is tight before moving, and stop and recheck tightness frequently

Dimensions

Choosing the right option

Choose the loadbinder to match the chain size you are tensioning, then check the lashing capacity of the whole system against the load. The lashing capacity of the weakest part of the system governs.

Other Beaver loadbinders: the: Beaver G70 Ratchet Type Loadbinders with Winged Eye Grab Hooks, 6mm to 13mm Chain, Beaver G70 Safety Release (Recoilless) Loadbinders, 7-8mm and 10mm Chain, Beaver G70 Double Swivel Lever Loadbinder with Winged Eye Grab Hooks, 6mm Chain, 2,300kg LC, Beaver G70 Web Dog Loadbinder, 1 m x 50mm Webbing with 8mm Grab Hooks, 3,800kg LC.
