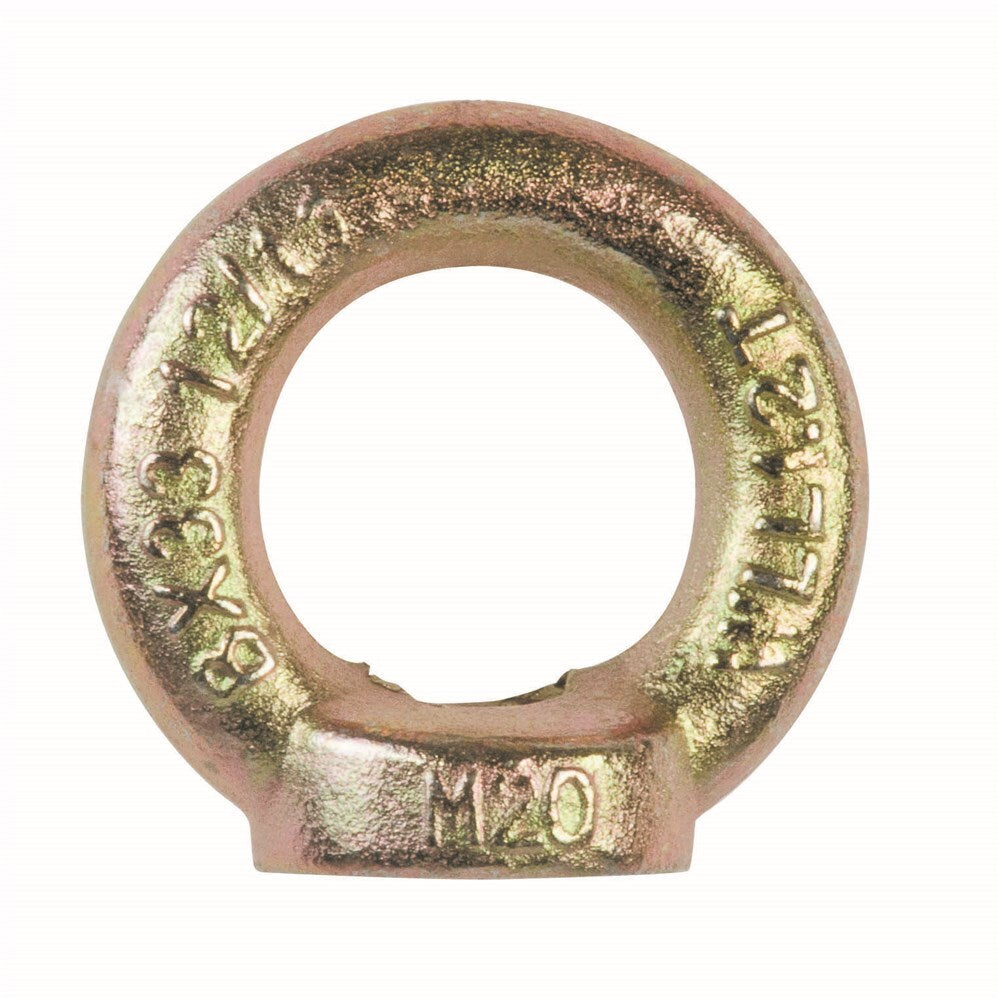

Beaver metric shouldered eye nuts, size (mm) 8

Beaver metric shouldered eye nuts to DIN 582 are shouldered eye nuts with a metric thread and a gold zinc dichromate finish with a working load limit (WLL) and a transverse load for each size. The eyebolts and eye nuts are predominately used for lifting applications.

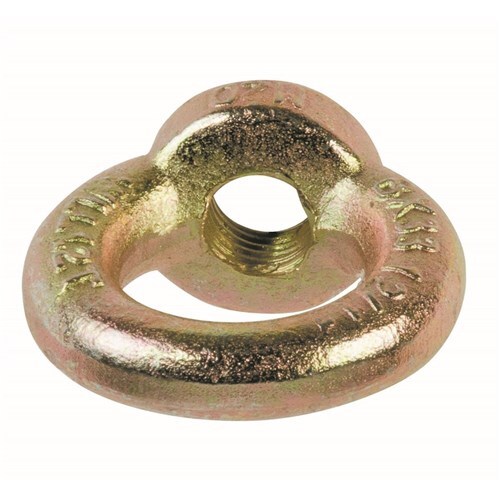

An eye nut threads onto a bolt or stud to give a lifting eye in place of a standard nut.

Where this product is used

• Providing a lifting point on a threaded stud
• Rigging and lifting assemblies

Features

• Shouldered eye nut, metric thread, to DIN 582
• Gold zinc dichromate finish
• WLL for each size, from 0.14 t to 1.8 t

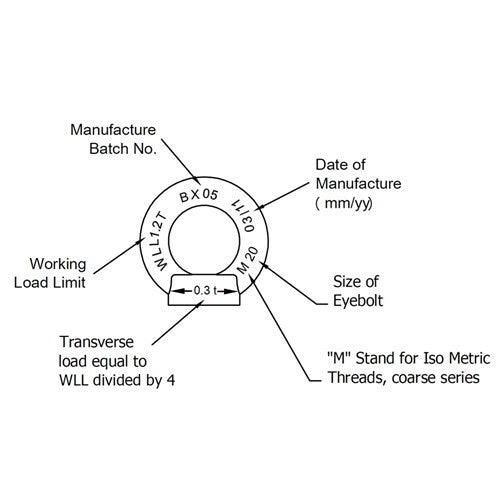

• Transverse load for each size, equal to the WLL divided by four

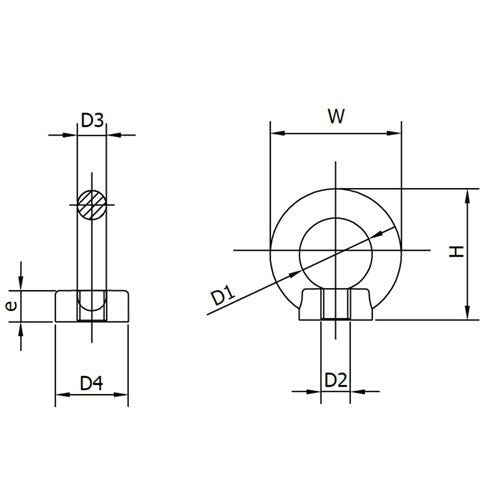

• Seven sizes, 8 to 24mm, with dimensions, weight and Beaver pack quantity for each

Key specifications

Choosing the right option

The WLL applies to a pull in line with the thread. Lifting equipment must be used within its marked working load limit (WLL), inspected before each use, and selected and used in line with your site lifting procedure and the relevant Australian Standards.

The 22mm size is marked NS (non-standard) by Beaver. Beaver sells the eye nuts singly (unit of measure: each).

Choose the size by the WLL your lift needs, in line with the thread, then check the dimensions against your bolt, stud and sling or shackle. The size is the metric thread size.

Related Beaver lifting points: Beaver Lifting Metric Shoulder Eye Bolts, 8 to 24mm, Beaver Lifting Collared Eyebolts with Metric Thread BS 4278, 8 to 24mm, Beaver Lifting Collared Eyebolts with UNC Thread, 3/8 to 1-1/2", Beaver BSW Thread Collared Lifting Eyebolts, 3/8 to 1-1/4".
