Beaver collared eyebolts, size (mm) 8
Available

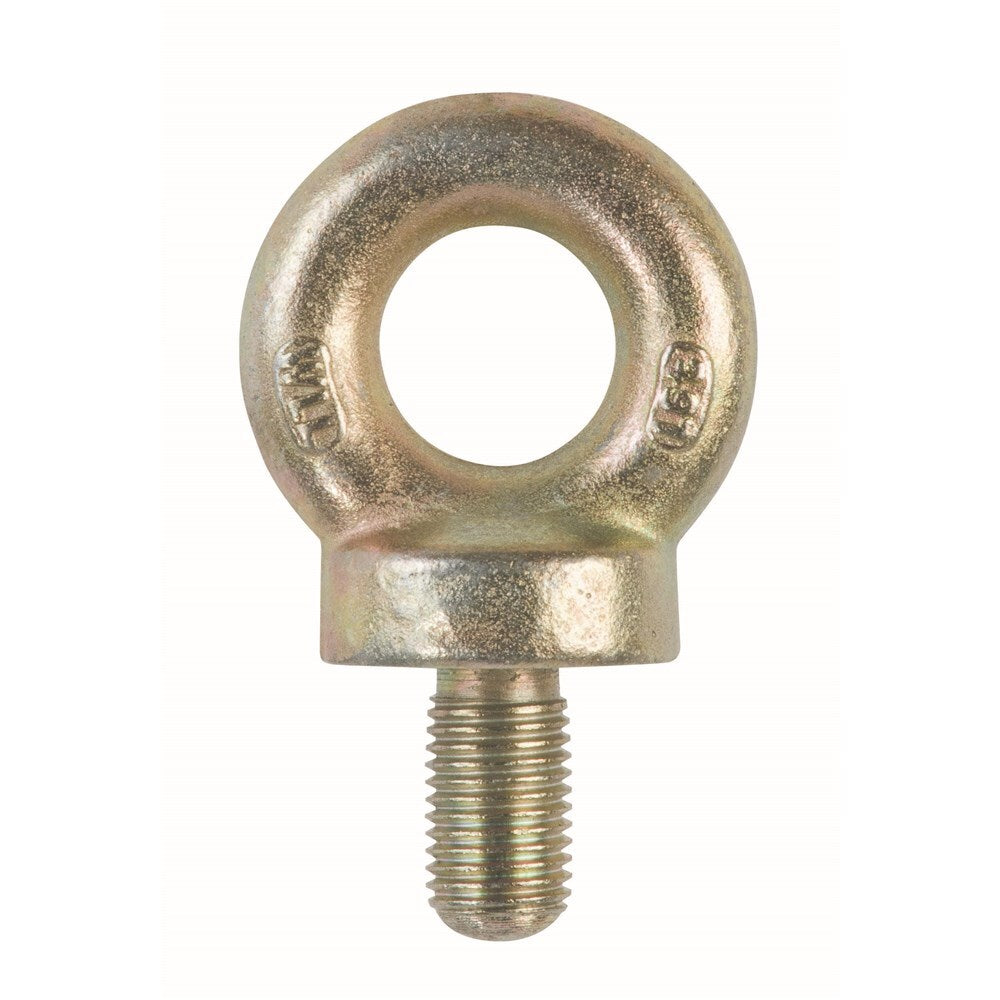

Beaver collared eyebolts with metric thread BS 4278 are lifting eyebolts with a metric (BS 4278) thread, a gold zinc dichromate finish and an integral collar with a working load limit (WLL) and a transverse load for each size. The eyebolt conforms to AS 2317 and gives the thread are BS 4278. The eyebolts and eye nuts are predominately used for lifting applications.
An eyebolt screws into a tapped hole to give a lifting eye on machinery, plant or fabricated steel.
Where this product is used
- Providing a lifting point on equipment with a tapped hole
- Rigging and lifting assemblies
Features
- Collared eyebolt, metric (BS 4278) thread
- Gold zinc dichromate finish

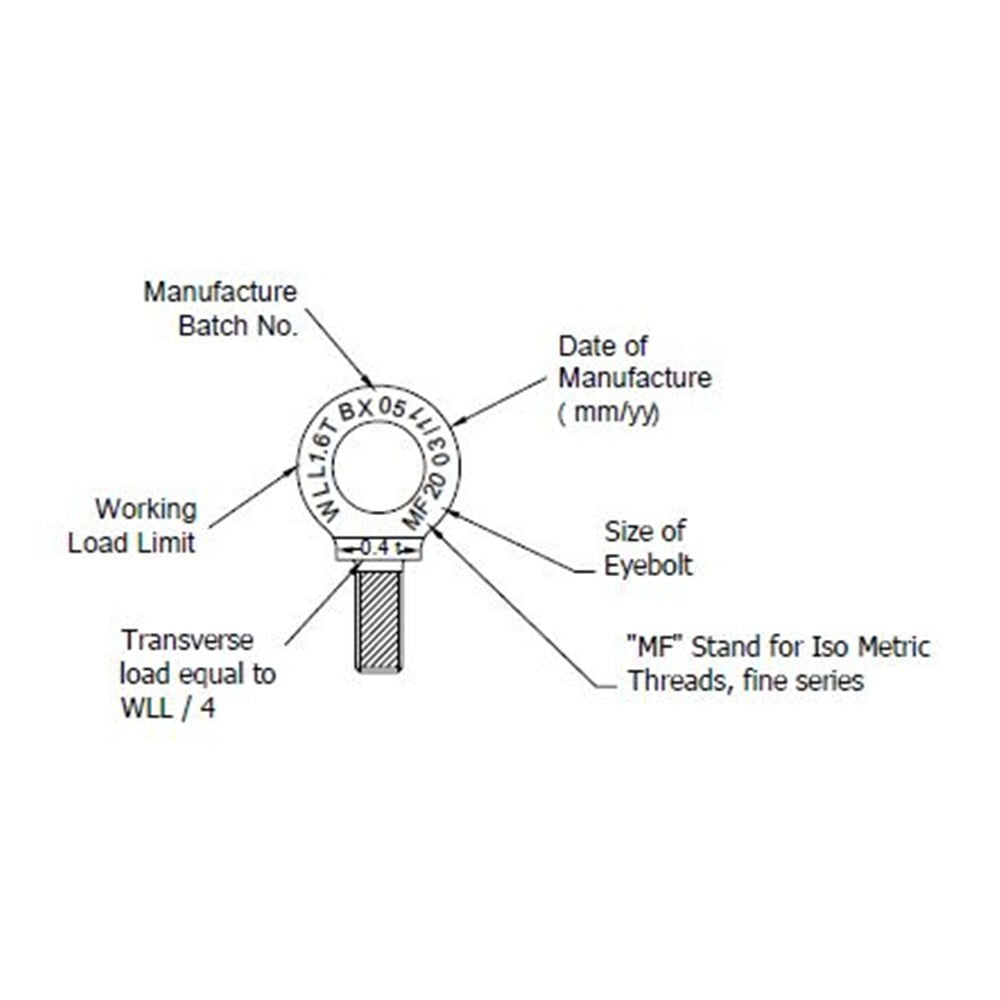

- WLL for each size, from 0.15 t to 2.5 t
- Transverse load for each size, equal to the WLL divided by four
- 6 sizes, 8 to 24mm, with dimensions, weight and Beaver pack quantity for each
Key specifications
| Specification | Detail |
|---|---|
| Brand | Beaver |
| Product type | Lifting Eye Bolt |
Choosing the right option
The WLL applies to a pull in line with the shank. The a plain eyebolt is acceptable for vertical lifts only and a collared eyebolt only for angled lifts. Lifting equipment must be used within its marked working load limit (WLL), inspected before each use, and selected and used in line with your site lifting procedure and the relevant Australian Standards.
It is not reproduced here. Inspect the eyebolt before each use and do not use one that is bent, damaged or corroded.
Beaver sells the eyebolts singly (unit of measure: each).
Choose the thread and size to suit the tapped hole (thread: metric - BS 4278), then the WLL for an in-line pull. Check the dimensions against your sling, shackle or hook.
Related Beaver lifting points: Beaver Lifting Metric Shoulder Eye Bolts, 8 to 24mm, Beaver Lifting Collared Eyebolts with UNC Thread, 3/8 to 1-1/2", Beaver BSW Thread Collared Lifting Eyebolts, 3/8 to 1-1/4", Beaver Metric Shouldered Eye Nuts to DIN 582, 8 to 24mm.
Shackles: Beaver Grade S Screw Pin Bow Shackle, Beaver Grade S Screw Pin Dee Shackle.
The: Beaver G316 Stainless Steel Eye Bolts - Not for Lifting.

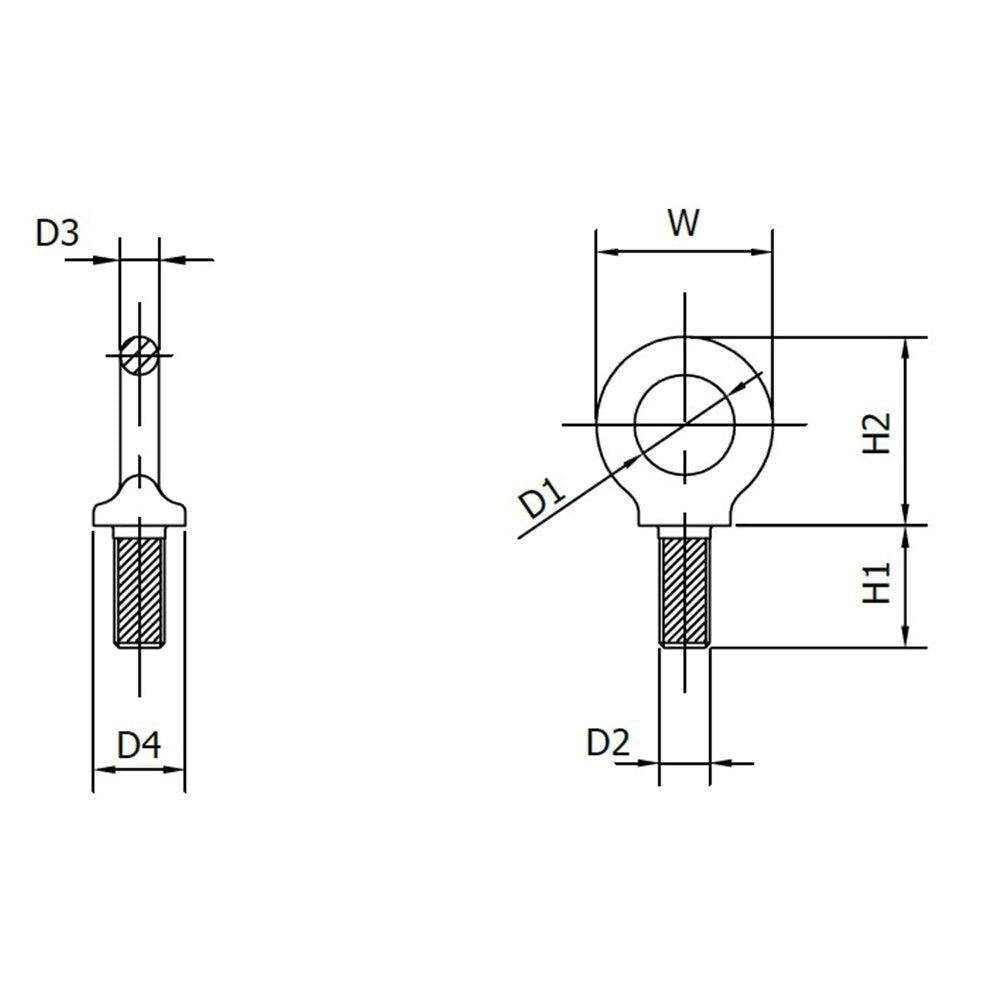

| Code | Size (mm) | WLL (t) | Transverse load (t) | W | H1 | H2 | D1 | D2 | D3 | D4 | Weight (kg each) | Beaver pack qty |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 359008 | 8 | 0.15 | 0.04 | 33 | 18 | 36 | 15 | 8 | 18 | 22 | 0.06 | 400 |
| 359010 | 10 | 0.25 | 0.06 | 33 | 18 | 36 | 15 | 10 | 18 | 22 | 0.06 | 180 |
| 359012 | 12 | 0.4 | 0.1 | 33 | 18 | 36 | 15 | 12 | 18 | 22 | 0.06 | 110 |
| 359016 | 16 | 0.8 | 0.2 | 44 | 23 | 48 | 20 | 16 | 24 | 29 | 0.15 | 80 |
| 359020 | 20 | 1.2 | 0.3 | 59 | 32 | 65 | 27 | 20 | 32 | 40 | 0.38 | 45 |
| 359024 | 24 | 2.5 | 0.62 | 77 | 40 | 84 | 35 | 24 | 42 | 52 | 0.85 | 10 |
