Sutton E401 8mm Endmill 3 Flute - Carbide VHM Ultra - CrN - Regular
Available

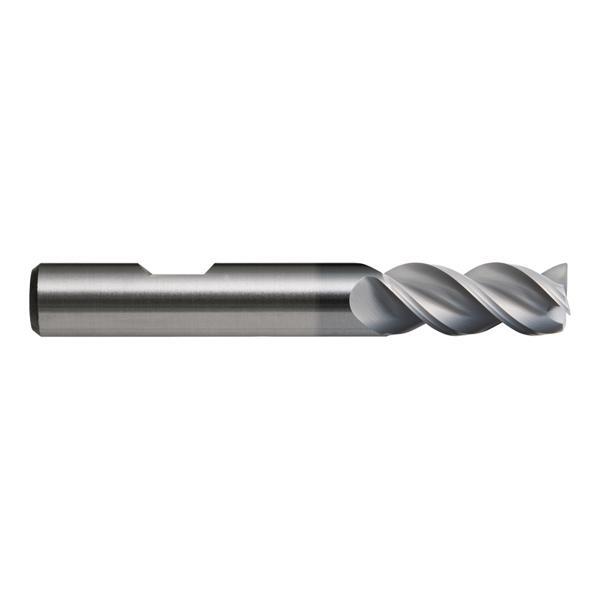

The Sutton E401 is a 3 flute endmill made from VHM-ULTRA grade solid carbide, with a CrN coating. It is in the regular length series. This listing covers 9 metric sizes from 6 mm to 25 mm.
The cutting edge has a 45/46/44° variable helix and the designation is Al. The shank is a cylindrical shank with Weldon flat (DIN 6535 form HB), with h5 shank tolerance and e8 cutting diameter tolerance. The cutting length is to DIN 6527 L.
Where this product is used
- Soft materials, where the geometry is optimised for them.
Design features
- VHM-ULTRA grade solid carbide construction.
- CrN coating for copper and non-ferrous materials.
- 3 flutes, 45/46/44° variable helix.
- Cylindrical shank with Weldon flat (DIN 6535 form HB).
- Tolerances: cutting diameter (d1) e8, shank h5.
Sizes
Diameters and lengths are in millimetres. Item numbers are the Sutton catalogue numbers.
| Item no. | d1 (mm) | l1 overall (mm) | l2 flute (mm) | d2 shank (mm) | Flutes | Corner radius (mm) |
|---|---|---|---|---|---|---|
| E401 0600 | 6 | 57 | 13 | 6 | 3 | 0.2 |
| E401 0800 | 8 | 63 | 19 | 8 | 3 | 0.2 |
| E401 1000 | 10 | 72 | 24 | 10 | 3 | 0.3 |
| E401 1200 | 12 | 83 | 28 | 12 | 3 | 0.4 |
| E401 1400 | 14 | 83 | 30 | 14 | 3 | 0.4 |
| E401 1600 | 16 | 92 | 35 | 16 | 3 | 0.5 |
| E401 1800 | 18 | 92 | 38 | 18 | 3 | 0.5 |
| E401 2000 | 20 | 104 | 42 | 20 | 3 | 0.6 |
| E401 2500 | 25 | 120 | 50 | 25 | 3 | 0.6 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | E401 |
| Type | Endmill, 3 flute, regular length |
| Material | VHM-ULTRA solid carbide |
| Finish | CrN |
| Helix / geometry | R45/46/44 |
| Designation | Al |
| Shank form | cylindrical shank with Weldon flat (DIN 6535 form HB) |
| Cutting diameter tolerance (d1) | e8 |
| Shank tolerance | h5 |
| Cutting length | DIN 6527 L |
| Sizes in this listing | 9 sizes, 6 to 25 mm |
Related products
Related Sutton carbide endmills: E400 metric endmill (regular), CrN, plain shank, E402 metric endmill (long reach), CrN, plain shank, E403 metric endmill (long reach), CrN, Weldon flat shank, E410 metric endmill (regular), Helica, plain shank, E411 metric endmill (regular), Helica, Weldon flat shank.
