Sutton E411 3mm Endmill 3 Flute - Carbide VHM Ultra - Helica - Regular
Available

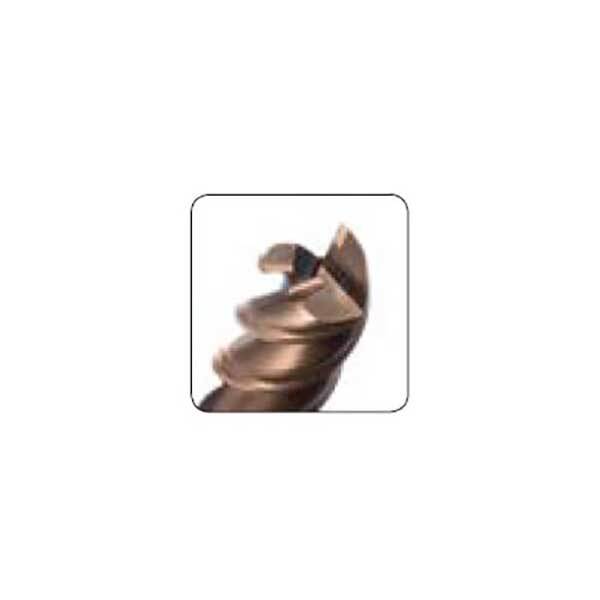

The Sutton E411 is a 3 flute endmill made from VHM-ULTRA grade solid carbide, with a Helica coating. It is in the regular length series. This listing covers 11 metric sizes from 3 mm to 20 mm.
The cutting edge has a 55/54/56° variable helix and the designation is VA. The shank is a cylindrical shank with Weldon flat (DIN 6535 form HB), with h5 shank tolerance and e8 cutting diameter tolerance. The cutting length is to DIN 6527 L. Sizes with a relieved neck show the reach length (l3) and neck diameter (d3) in the size table.
Where this product is used
- Stainless steels, where the geometry is optimised for them.
- Slotting and finishing with one tool.
Design features
- VHM-ULTRA grade solid carbide construction.
- Helica coating for superior wear resistance in stainless steel.
- 3 flutes, 55/54/56° variable helix.
- Cylindrical shank with Weldon flat (DIN 6535 form HB).
- Tolerances: cutting diameter (d1) e8, shank h5.
Sizes
Diameters and lengths are in millimetres. Item numbers are the Sutton catalogue numbers.

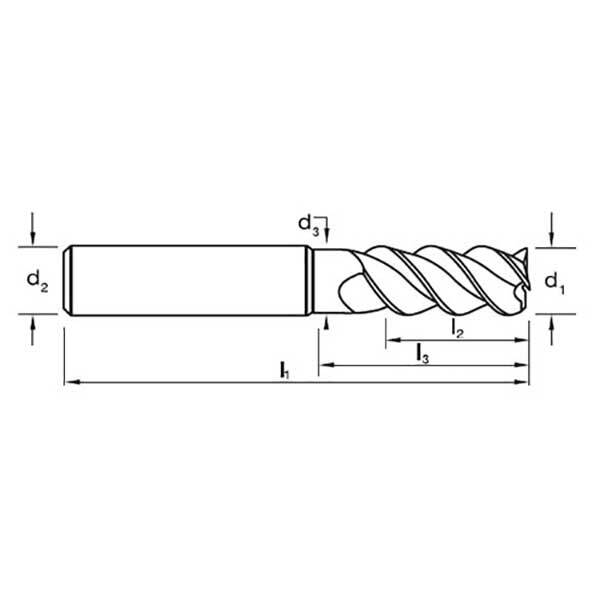

| Item no. | d1 (mm) | l1 overall (mm) | l2 flute (mm) | l3 reach (mm) | d2 shank (mm) | d3 neck (mm) | Flutes |
|---|---|---|---|---|---|---|---|
| E411 0300 | 3 | 57 | 8 | 14 | 6 | 2.8 | 3 |
| E411 0400 | 4 | 57 | 11 | 16 | 6 | 3.8 | 3 |
| E411 0500 | 5 | 57 | 13 | 18 | 6 | 4.8 | 3 |
| E411 0600 | 6 | 57 | 13 | 19 | 6 | 5.7 | 3 |
| E411 0800 | 8 | 63 | 19 | 25 | 8 | 7.6 | 3 |
| E411 1000 | 10 | 72 | 22 | 30 | 10 | 9.5 | 3 |
| E411 1200 | 12 | 83 | 26 | 36 | 12 | 11.5 | 3 |
| E411 1400 | 14 | 83 | 26 | 36 | 14 | 13.5 | 3 |

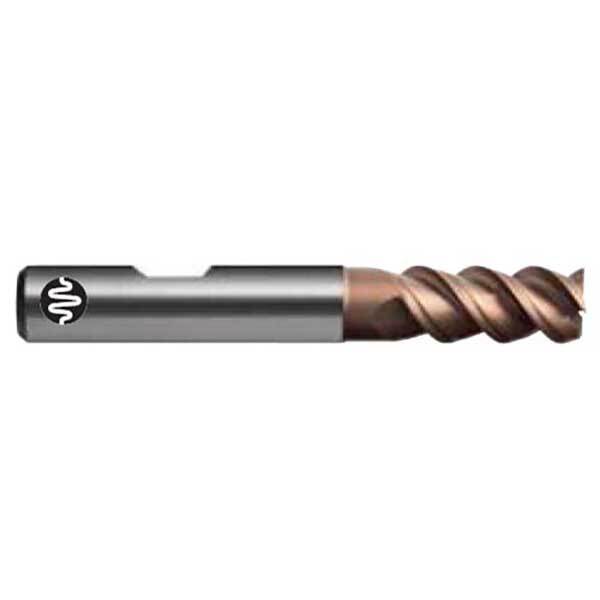

| E411 1600 | 16 | 92 | 32 | 42 | 16 | 15.5 | 3 |
| E411 1800 | 18 | 92 | 32 | 42 | 18 | 17.5 | 3 |
| E411 2000 | 20 | 104 | 38 | 52 | 20 | 19.5 | 3 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | E411 |
| Type | Endmill, 3 flute, regular length |
| Material | VHM-ULTRA solid carbide |
| Finish | Helica |
| Helix / geometry | R55/54/56 |
| Designation | VA |
| Shank form | cylindrical shank with Weldon flat (DIN 6535 form HB) |
| Cutting diameter tolerance (d1) | e8 |
| Shank tolerance | h5 |
| Cutting length | DIN 6527 L |
| Sizes in this listing | 11 sizes, 3 to 20 mm |
Related products
Related Sutton carbide endmills: E410 metric endmill (regular), Helica, plain shank, E403 metric endmill (long reach), CrN, Weldon flat shank, E402 metric endmill (long reach), CrN, plain shank, E401 metric endmill (regular), CrN, Weldon flat shank, E400 metric endmill (regular), CrN, plain shank.
