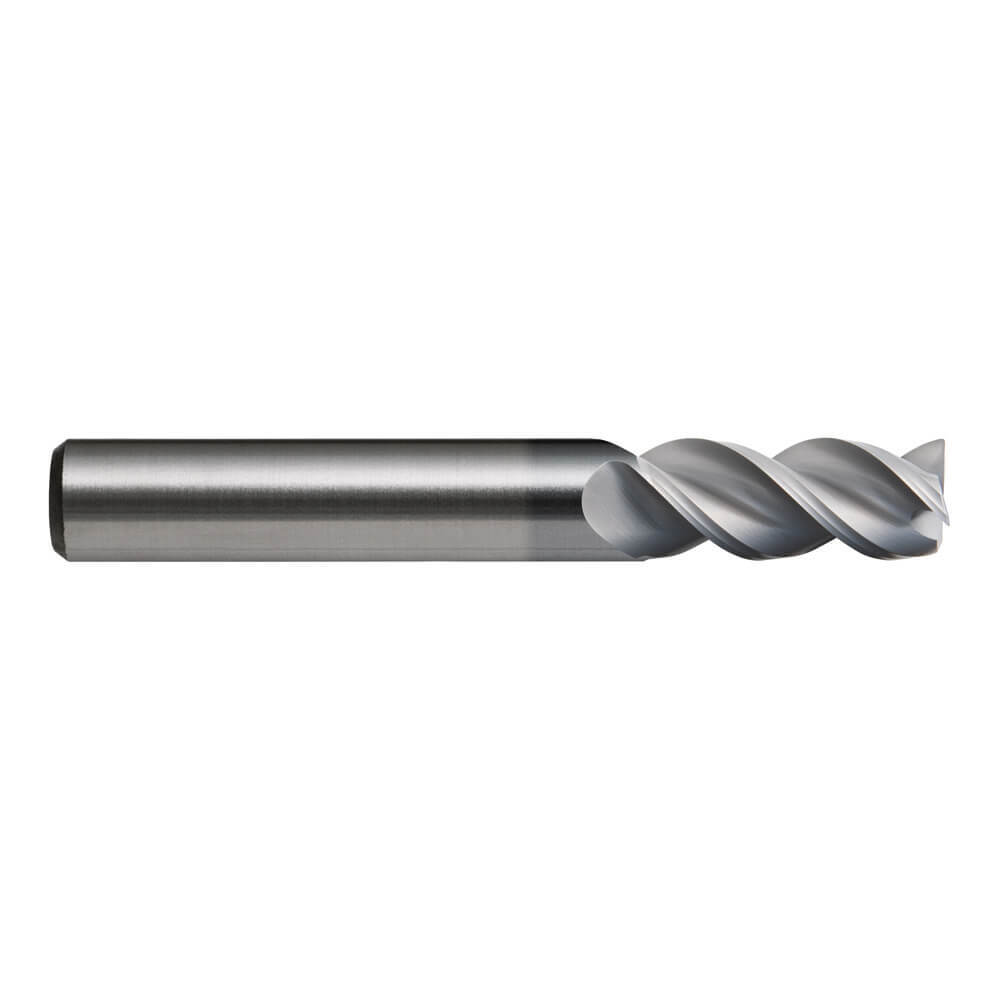

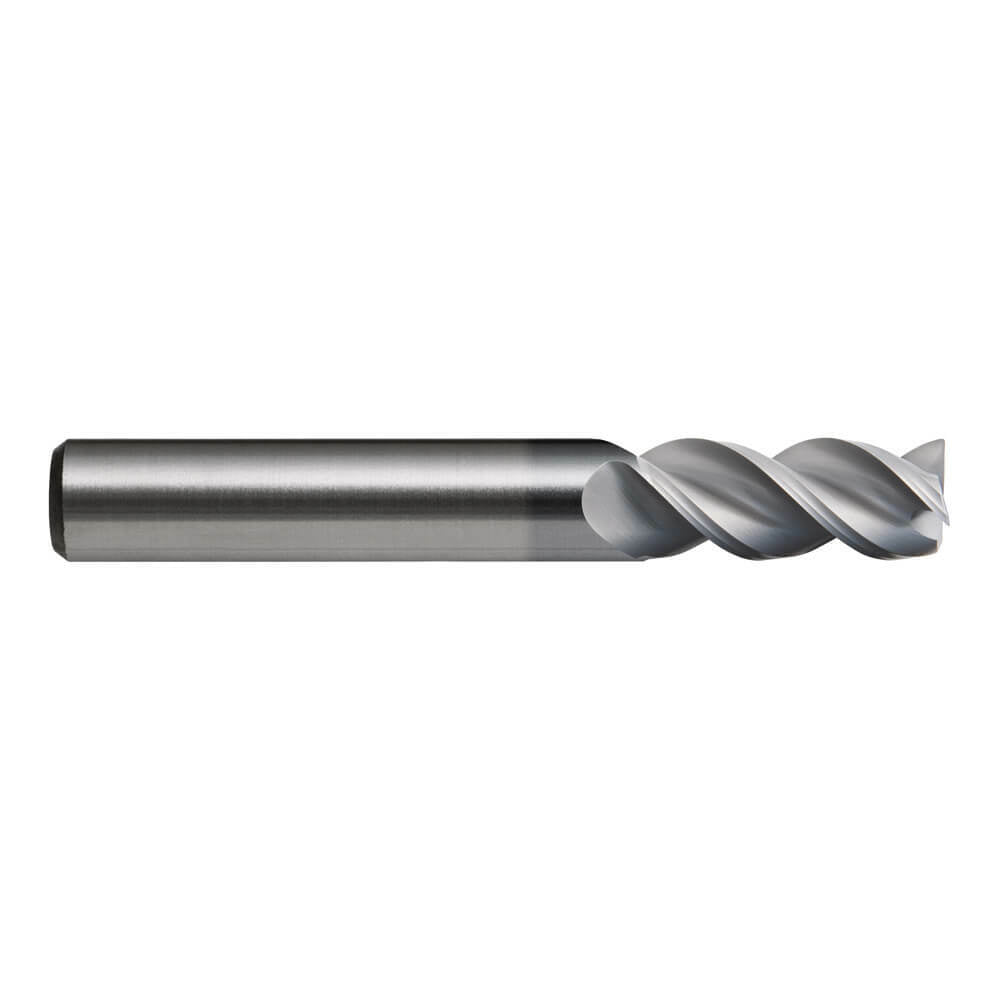

Sutton E400 6mm Endmill 3 Flute - Carbide VHM Ultra - CrN - Regular
Available
The Sutton E400 is a 3 flute endmill made from VHM-ULTRA grade solid carbide, with a CrN coating. It is in the regular length series. This listing covers 9 metric sizes from 6 mm to 25 mm.

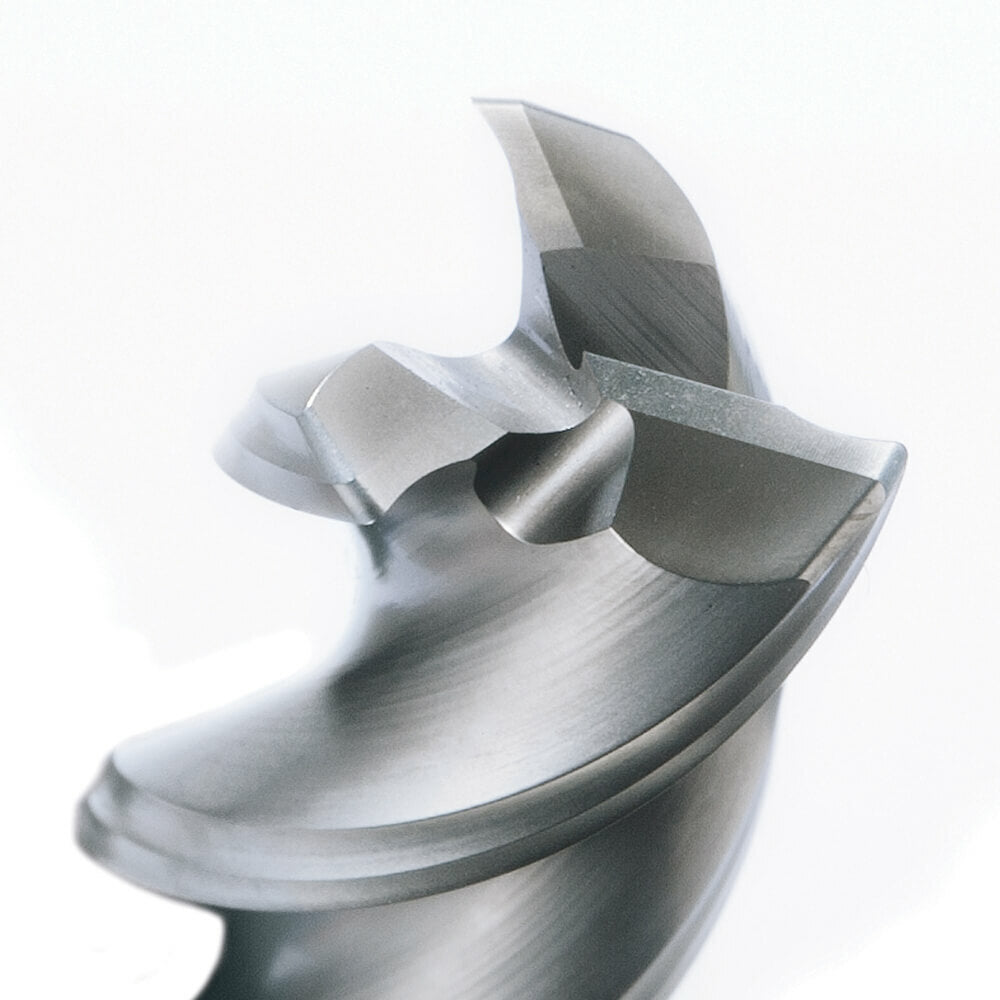

The cutting edge has a 45/46/44° variable helix and the designation is Al. The shank is a plain cylindrical shank (DIN 6535 form HA), with h5 shank tolerance and e8 cutting diameter tolerance. The cutting length is to DIN 6527 L.
Where this product is used
- Soft materials, where the geometry is optimised for them.
Design features
- VHM-ULTRA grade solid carbide construction.
- CrN coating for copper and non-ferrous materials.
- 3 flutes, 45/46/44° variable helix.
- Plain cylindrical shank (DIN 6535 form HA).
- Tolerances: cutting diameter (d1) e8, shank h5.
Sizes
Diameters and lengths are in millimetres. Item numbers are the Sutton catalogue numbers.

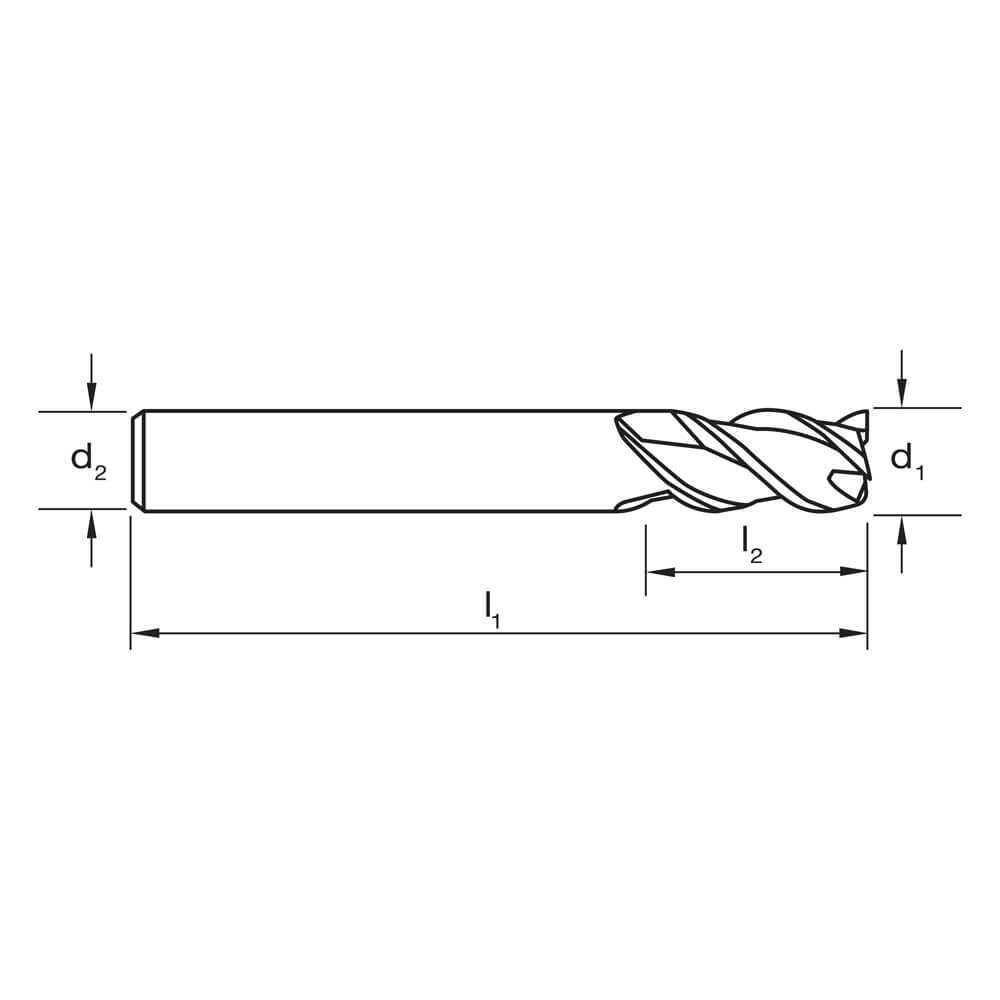

| Item no. | d1 (mm) | l1 overall (mm) | l2 flute (mm) | d2 shank (mm) | Flutes | Corner radius (mm) |
|---|---|---|---|---|---|---|
| E400 0600 | 6 | 57 | 13 | 6 | 3 | 0.2 |
| E400 0800 | 8 | 63 | 19 | 8 | 3 | 0.2 |
| E400 1000 | 10 | 72 | 24 | 10 | 3 | 0.3 |
| E400 1200 | 12 | 83 | 28 | 12 | 3 | 0.4 |
| E400 1400 | 14 | 83 | 30 | 14 | 3 | 0.4 |
| E400 1600 | 16 | 92 | 35 | 16 | 3 | 0.5 |
| E400 1800 | 18 | 92 | 38 | 18 | 3 | 0.5 |
| E400 2000 | 20 | 104 | 42 | 20 | 3 | 0.6 |
| E400 2500 | 25 | 120 | 50 | 25 | 3 | 0.6 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | E400 |
| Type | Endmill, 3 flute, regular length |
| Material | VHM-ULTRA solid carbide |
| Finish | CrN |
| Helix / geometry | R45/46/44 |
| Designation | Al |
| Shank form | plain cylindrical shank (DIN 6535 form HA) |
| Cutting diameter tolerance (d1) | e8 |
| Shank tolerance | h5 |
| Cutting length | DIN 6527 L |
| Sizes in this listing | 9 sizes, 6 to 25 mm |
Related products
Related Sutton carbide endmills: E401 metric endmill (regular), CrN, Weldon flat shank, E402 metric endmill (long reach), CrN, plain shank, E403 metric endmill (long reach), CrN, Weldon flat shank, E410 metric endmill (regular), Helica, plain shank, E411 metric endmill (regular), Helica, Weldon flat shank.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Sutton E400 Metric 3 Flute Endmill - Carbide VHM Ultra - CrN - Regular - HA: 57 / 6
SKU: A0009350 | Model: E4000600
This is the 57mm overall length, cutting tip 6 option of the Sutton E400 Metric 3 Flute Endmill - Carbide VHM Ultra - CrN - Regular - HA. Key details for this option: overall length 57mm, flute length 13mm.
Descriptions
The Sutton E400 is a 3 flute endmill made from VHM-ULTRA grade solid carbide, with a CrN coating. It is in the regular length series. This listing covers 9 metric sizes from 6 mm to 25 mm.
The cutting edge has a 45/46/44° variable helix and the designation is Al. The shank is a plain cylindrical shank (DIN 6535 form HA), with h5 shank tolerance and e8 cutting diameter tolerance. The cutting length is to DIN 6527 L.
