Description
Description
Descriptions
- Optimized geometry for soft materials
- CrN for copper and non-ferrous materials
Specifications
Specifications
Specifications
- Designation: Al
- Material: VHM-ULTRA
- Finish: CrN
- Shank Form: HA
- Helix Angle: R45/46/44
- Point Tolerance: k10
- Shank Tolerance: h5
- Point Form: 45° Corner Chamfer
- Type: N (finishing)
- Rake Angle: 15
- Standard: Sutton
Applications
Applications
Applications
- Optimal for Aluminum & Magnesium, wrought alloy - Non Heat Treatable – 60 HB
- Optimal for Aluminum & Magnesium, wrought alloy - Heat Treatable – 100 HB
- Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable – 75 HB
- Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable – 90 HB
- Optimal Aluminum & Magnesium, cast alloy >12% Si - Non Heat Treatable – 130 HB
- Optimal for Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1 -110 HB
- Optimal for Copper & Copper alloys (Brass/Bronze) - Brass (CuZn, CuSnZn) - 90 HB
- Optimal for Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn) – 100 HB
Features & Benefits
Features & Benefits
Features
- VHM-ULTRA grade of carbide for high performance

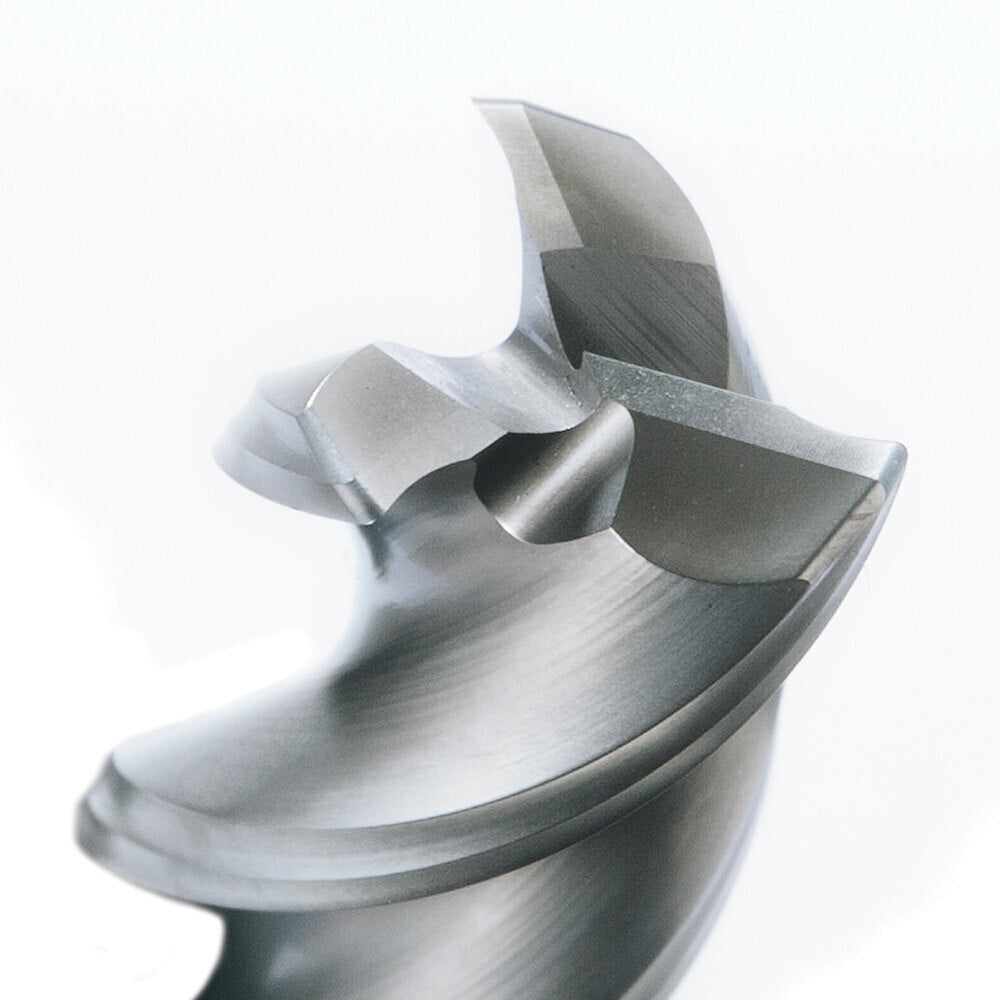

- 45/46/44° variable flute helix for chatter free milling
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

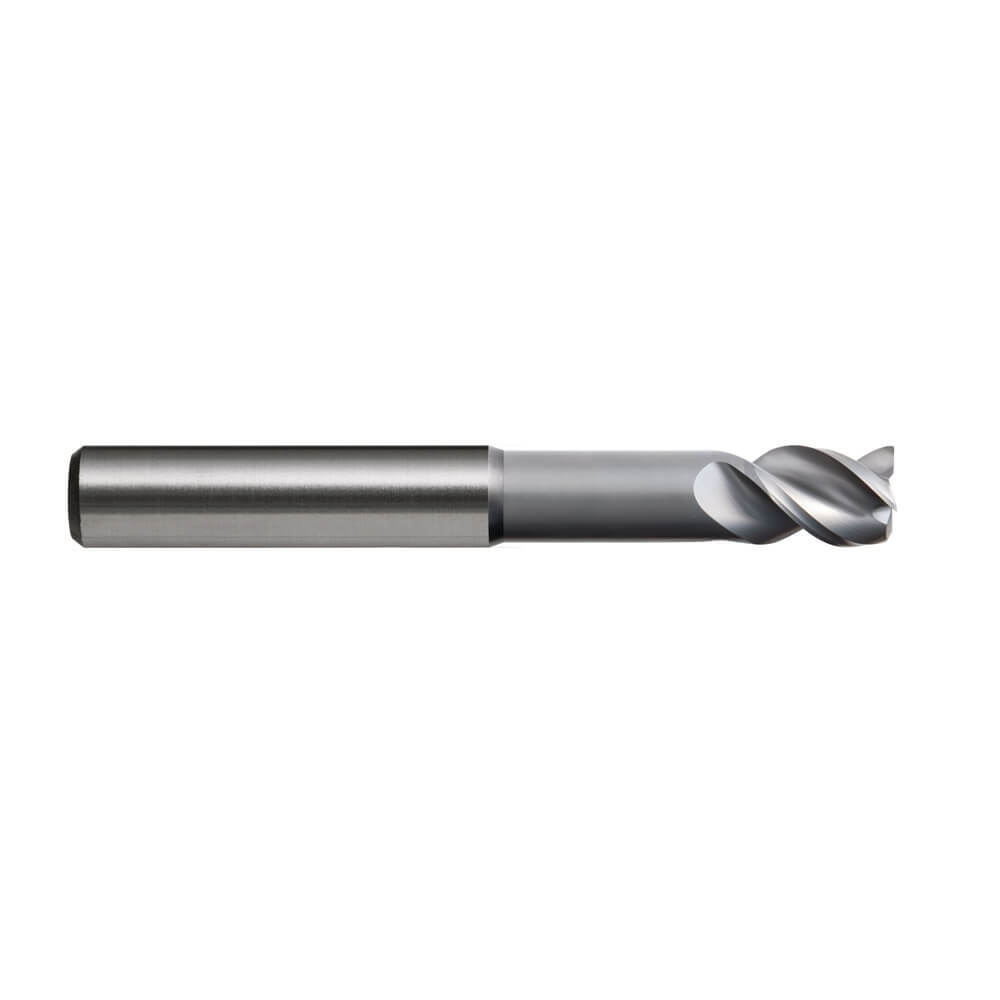

Sutton E402 Metric 3 Flute Endmill - Carbide VHM Ultra CrN - Long
Sutton E402 Metric 3 Flute Endmill - Carbide VHM Ultra CrN - Long
SKU: A0009359
- Wide Range
- Reliable Services
- Proven Trust
Available

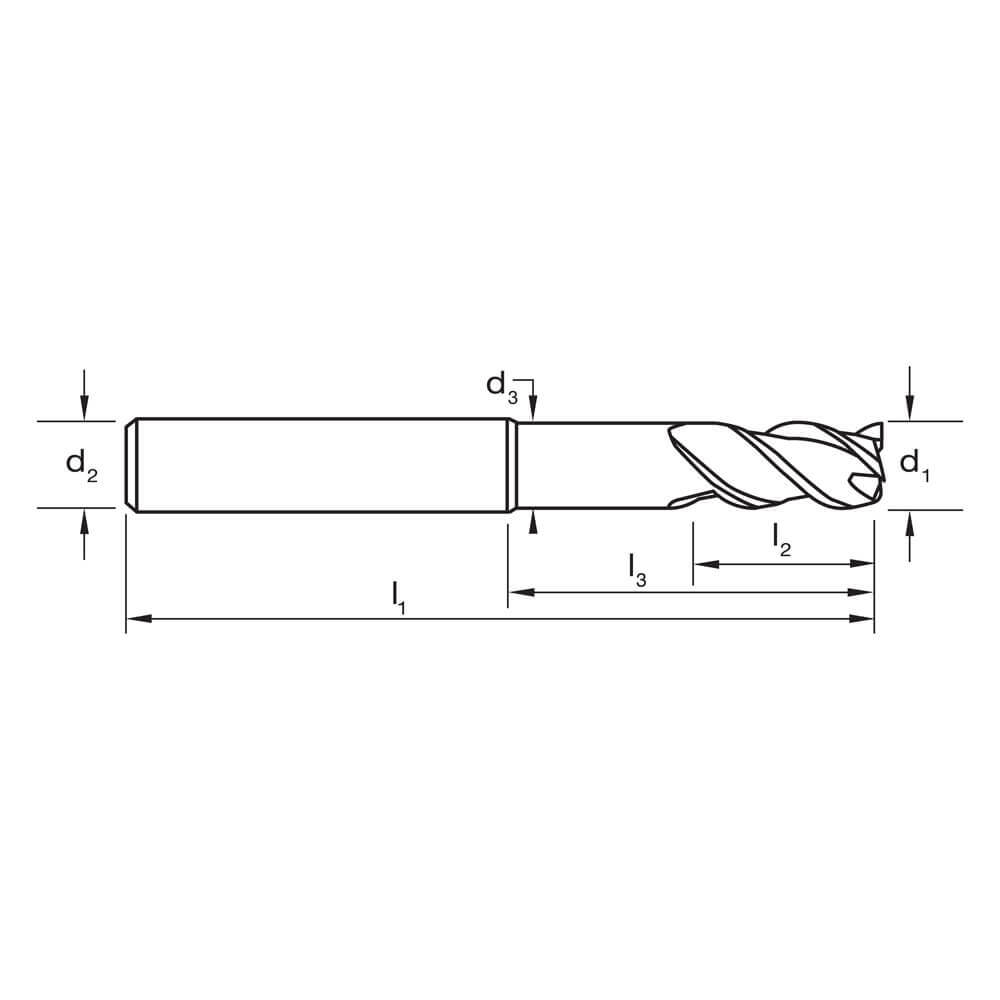

The Sutton E402 Metric 3 Flute Endmill boasts a VHM-ULTRA grade carbide construction. Its 45/46/44° variable flute helix ensures chatter-free milling, ideal for soft materials like copper. Dimensions include d1, d2, and d3 at 10mm, 10mm, and 9mm respectively.
- FREE SHIPPING OVER $299*
- RETURN AND EXCHANGE POLICY
Resources
Couldn't load pickup availability
Description
Description
Descriptions
- Optimized geometry for soft materials
- CrN for copper and non-ferrous materials
Specifications
Specifications
Specifications
- Designation: Al
- Material: VHM-ULTRA
- Finish: CrN
- Shank Form: HA
- Helix Angle: R45/46/44
- Point Tolerance: k10
- Shank Tolerance: h5
- Point Form: 45° Corner Chamfer
- Type: N (finishing)
- Rake Angle: 15
- Standard: Sutton
Applications
Applications
Applications
- Optimal for Aluminum & Magnesium, wrought alloy - Non Heat Treatable – 60 HB
- Optimal for Aluminum & Magnesium, wrought alloy - Heat Treatable – 100 HB
- Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable – 75 HB
- Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable – 90 HB
- Optimal Aluminum & Magnesium, cast alloy >12% Si - Non Heat Treatable – 130 HB
- Optimal for Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1 -110 HB
- Optimal for Copper & Copper alloys (Brass/Bronze) - Brass (CuZn, CuSnZn) - 90 HB
- Optimal for Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn) – 100 HB
Features & Benefits
Features & Benefits
Features
- VHM-ULTRA grade of carbide for high performance
- 45/46/44° variable flute helix for chatter free milling
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Sutton E402 Metric 3 Flute Endmill - Carbide VHM Ultra CrN - Long
Customer Service
Mon-Fri, 08:00-05:00pm
Call Us
(02) 9773-0122
Talk to a Sales Engineer
sales@aimsindustrial.com.au
Warehouse Address
Milperra NSW 2214, Australia
Your cart
(0)
Your cart is currently empty.
Not sure where to start? Try these collections:
Order note
Estimate Shipping
Product Comparison
| Description |
| Price |
| Vendor |
| Type |
| Product variants |
|
| The Sutton E402 Metric 3 Flute Endmill boasts a VHM-ULTRA grade carbide construction. Its 45/46/44° variable flute helix ensures chatter-free milling, ideal for soft materials like copper. Dimensions include d1, d2, and d3 at 10mm, 10mm, and 9mm respectively. |
Regular price
From $31.09
Sale price
From $31.09
Regular price
Unit price
/per
| Sutton Tools |
Overall Length (mm)
62,68,80,93,108,126,150
Cutting Tip (mm)
6,8,10,12,14,16,18,20,25
|
Choose your option
Sutton E402 Metric 3 Flute Endmill - Carbide VHM Ultra CrN - Long
Sutton E402 Metric 3 Flute Endmill - Carbide VHM Ultra CrN - Long
SKU: A0009359
Hurry up, only 14 items left in stock.
The Sutton E402 Metric 3 Flute Endmill boasts a VHM-ULTRA grade carbide construction. Its 45/46/44° variable flute helix ensures chatter-free milling, ideal for soft materials like copper. Dimensions include d1, d2, and d3 at 10mm, 10mm, and 9mm respectively.
