Gates A104 (9002-2104) Hi-Power II - Clearance
Available

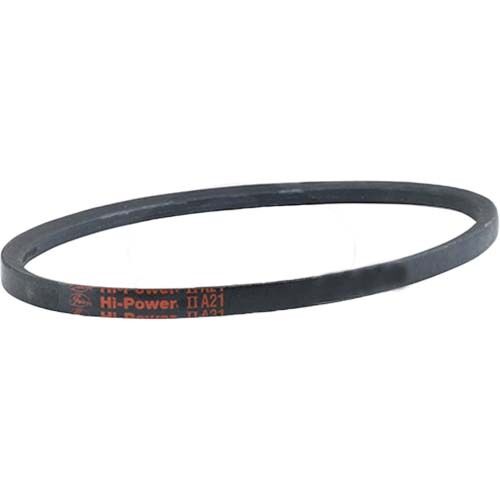

Gates Hi-Power II classical V-belts A section are the benchmark for industrial drive reliability. The oil-, heat- and ozone-resistant compound and polyester tensile cord deliver consistent performance across the full range of classical section drives.
Where this product is used
Gates V-belts cover the full range of industrial, agricultural and automotive drive applications. Common end uses include:
- Industrial drive systems — air compressors, pumps, fans, blowers and generators across manufacturing and utilities
- Agricultural machinery including combine harvesters, grain augers, irrigation pumps and crop-processing equipment
- HVAC and refrigeration plant — chillers, cooling towers, air handlers and refrigeration compressors
Key specifications
| Specification | Detail |
|---|---|
| Belt Section | A |
| Series | Hi-Power II — Gates’ wrapped classical-section V-belt, the reliability benchmark for industrial drives |

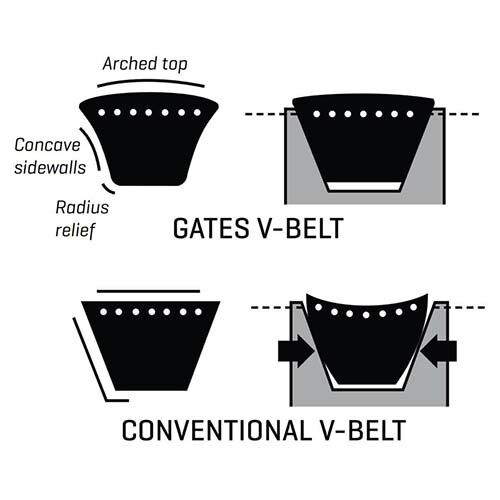

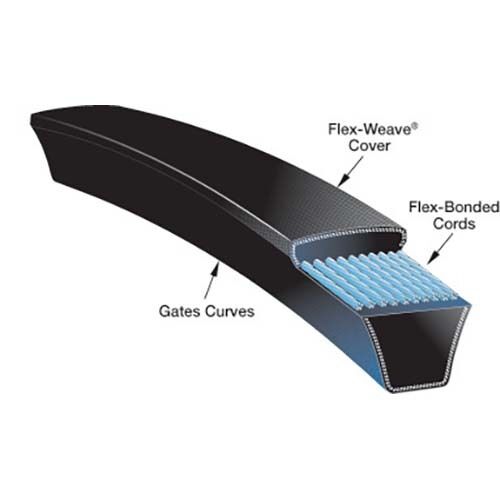

| Construction | Wrapped, classical cross-section construction; fibre-loaded rubber compound for improved belt stability; Gates Curves profile for full, uniform contact with pulley grooves; Flex-Bonded polyester tensile cords for even load distribution; Flex-Weave® fabric cover protects against oil, dirt and heat; non-self-igniting — will not catch fire from heat build-up even under severe slippage; static conductive (ISO 1813 & RMA IP3-3) |

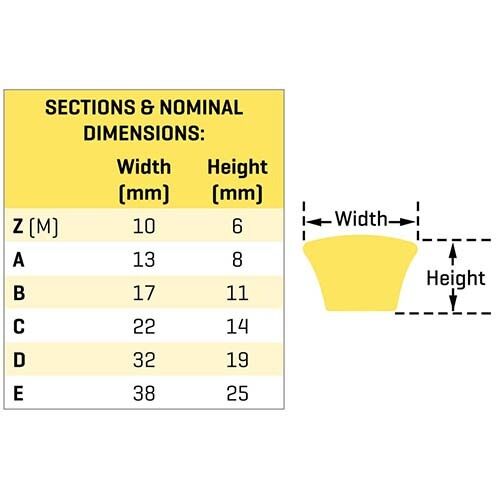

| Nominal Dimensions (Width x Height) | 13 x 8 mm |
| Temperature Range | -35°C to +60°C |
| Belt Matching | Meets Gates V80® tolerances — any Hi-Power II belt of the same section and length matches any other; no belt-matching required. Back idlers can be used. Tolerates mild clutching or drive slip. |
Selecting the right option
Select by belt section first, then by pitch length. Classical sections run A, B, C, D, E (or Z in metric) — cross-reference to the metric ISO equivalent (13A, 17A, 22A) where needed. Narrow sections (3V/SPA, 5V/SPB, 8V/SPC) carry more power in the same envelope. The XP series (XPZ/XPA/XPB/XPC) are notched versions for improved flex efficiency. Gates PowerBand banded belts join multiple strands — specify these for long centre distances, vertical drives or where belt whip is an issue. Looking for an automotive serpentine belt? Automotive Micro-V drives use the K section — see our automotive Micro-V range and match by OE reference or by rib count and pitch length. When in doubt, call AIMS — power transmission is our specialty and we'll confirm the right cross-reference.
