Gates D101 (9005-2101) Hi-Power II
Available
Gates Hi-Power II classical V-belts D section are the benchmark for industrial drive reliability. The oil-, heat- and ozone-resistant compound and polyester tensile cord deliver consistent performance across the full range of classical section drives.
Where this product is used
Gates V-belts cover the full range of industrial, agricultural and automotive drive applications. Common end uses include:
- Industrial drive systems — air compressors, pumps, fans, blowers and generators across manufacturing and utilities
- Agricultural machinery including combine harvesters, grain augers, irrigation pumps and crop-processing equipment
- HVAC and refrigeration plant — chillers, cooling towers, air handlers and refrigeration compressors
Key specifications
| Specification | Detail |
|---|---|
| Belt Section | D |
| Series | Hi-Power II — Gates’ wrapped classical-section V-belt, the reliability benchmark for industrial drives |
| Construction | Wrapped, classical cross-section construction; fibre-loaded rubber compound for improved belt stability; Gates Curves profile for full, uniform contact with pulley grooves; Flex-Bonded polyester tensile cords for even load distribution; Flex-Weave® fabric cover protects against oil, dirt and heat; non-self-igniting — will not catch fire from heat build-up even under severe slippage; static conductive (ISO 1813 & RMA IP3-3) |

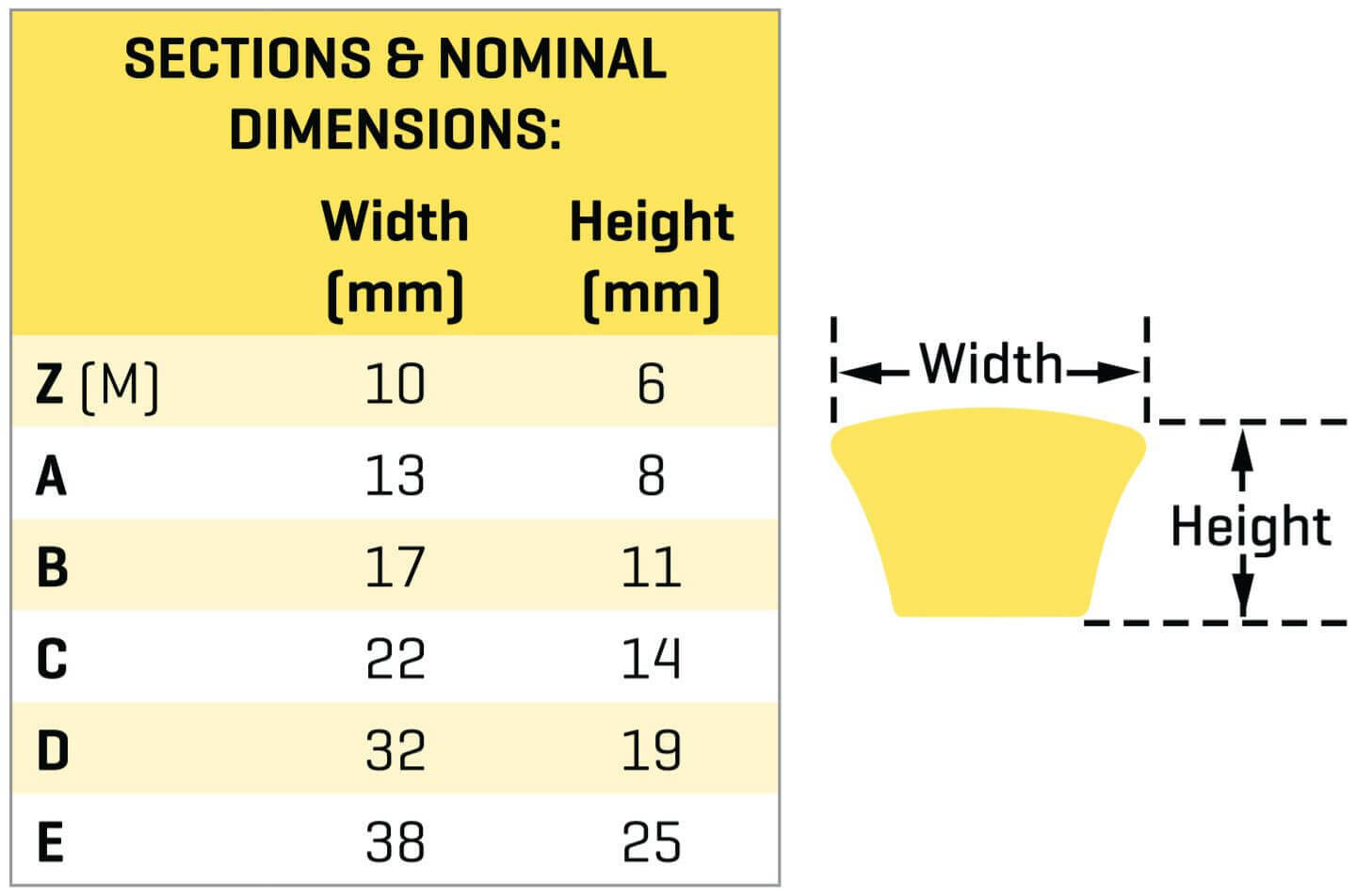

| Nominal Dimensions (Width x Height) | 32 x 19 mm |
| Temperature Range | -35°C to +60°C |
| Belt Matching | Meets Gates V80® tolerances — any Hi-Power II belt of the same section and length matches any other; no belt-matching required. Back idlers can be used. Tolerates mild clutching or drive slip. |
Selecting the right option
Select by belt section first, then by pitch length. Classical sections run A, B, C, D, E (or Z in metric) — cross-reference to the metric ISO equivalent (13A, 17A, 22A) where needed. Narrow sections (3V/SPA, 5V/SPB, 8V/SPC) carry more power in the same envelope. The XP series (XPZ/XPA/XPB/XPC) are notched versions for improved flex efficiency. Gates PowerBand banded belts join multiple strands — specify these for long centre distances, vertical drives or where belt whip is an issue. Looking for an automotive serpentine belt? Automotive Micro-V drives use the K section — see our automotive Micro-V range and match by OE reference or by rib count and pitch length.
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Gates Hi-Power II Classical Wrapped V Belt - D Section: D101
SKU: A0017744 | Model: 9005-2101
This is the v-belt code D101 option of the Gates Hi-Power II Classical Wrapped V Belt - D Section. Key details for this option: top width 32mm, depth 19mm.
Gates Hi-Power II Classical Wrapped V Belts
The wrapped classical section Hi-power II V-belt has a big reputation for reliability on agricultural and industrial applications
Hi-power II are used in applications across all types of industries and markets.
They are renowned for out- performing and out-lasting competitive belts due to their superior construction.
Hi-power II belts that last longer lead to less downtime and maintenance and hence produces more uptime

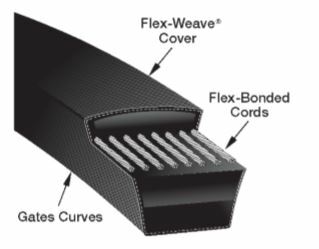

Construction
Classical cross-section
Fibre-loaded compound for improved belt stability

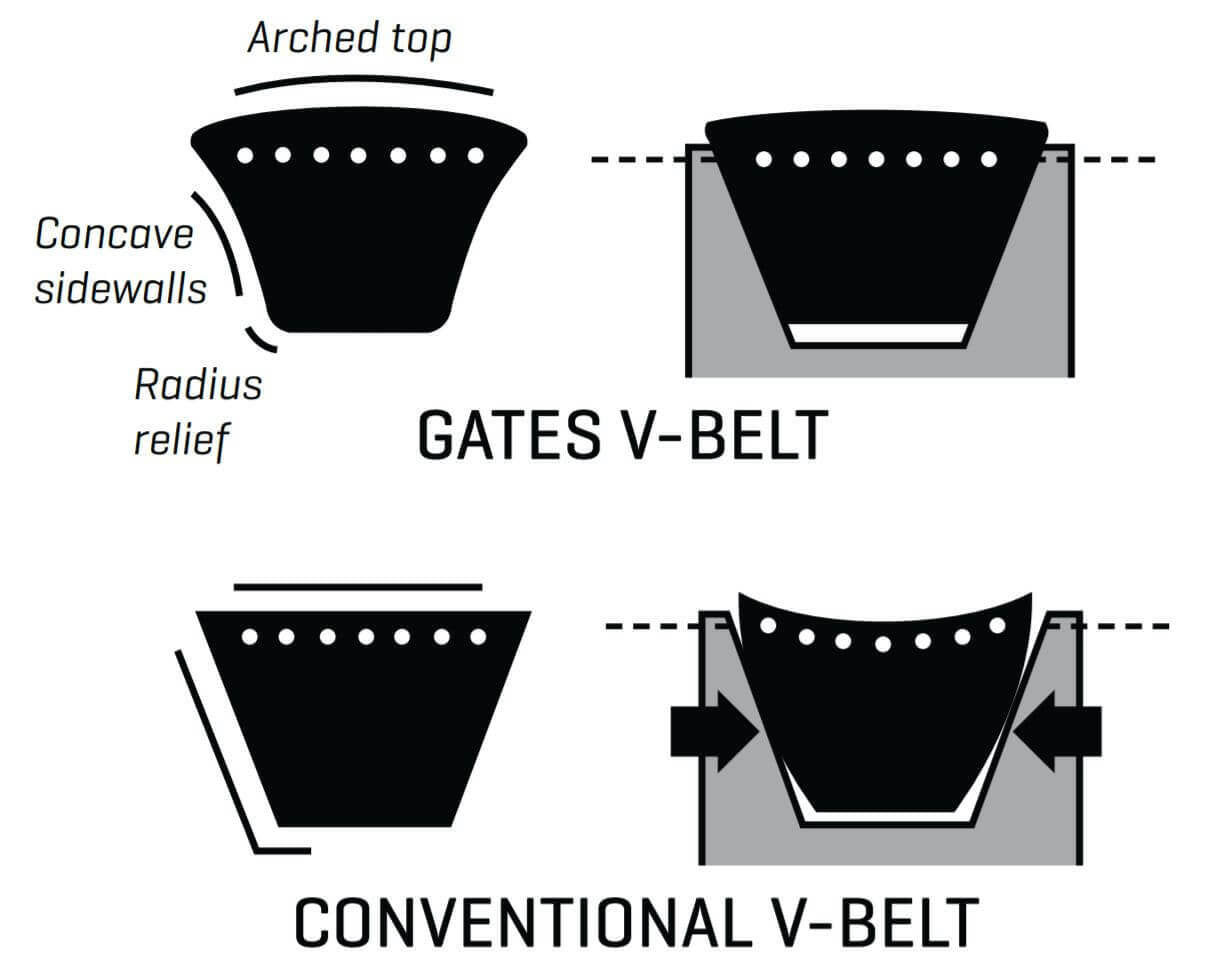

Gates Curves provide full contact with pulley grooves for uniform loading of cords, uniform wear and increased belt life
Flex-Bonded polyester cords for equal load distribution and reduced stress from flexin .
Flex-Weave Cover is a patented fabric construction for longer life, providing extended protection to the belt core from oil, dirt and heat
Non self-igniting - the belt will not catch fire from heat build-up, even with severe slippage
Static conductive - ISO 1813 and RMA IP3-3
Advantages
Premium performance
Oil and heat resistant
Excellent performance/cost ratio
Suitable for dirty/dusty environments
Match free system: all sizes meet Gates V80 tolerances, can be installed without matching
Back idlers can be used
Tolerates mild clutching or drive slip
Temperature Range
Range: -35°C to +60°C
