Description
Description
Descriptions
- Gates Hi-offer® II Dubl-V belt is characterised by a double-V profile. It uses flex-bonded tensile cords, which are highly resistant to flexing forces, and FlexWeave® cover for extended protection.
- It is the ideal solution for “serpentine” drives (drives with counter rotating shafts) where power is transmitted from both the top and bottom of the belt
Construction
- Classical cross-section
- Fibre-loaded compound for improved belt stability

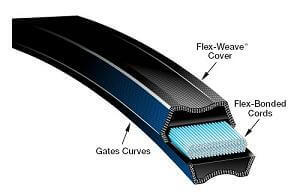

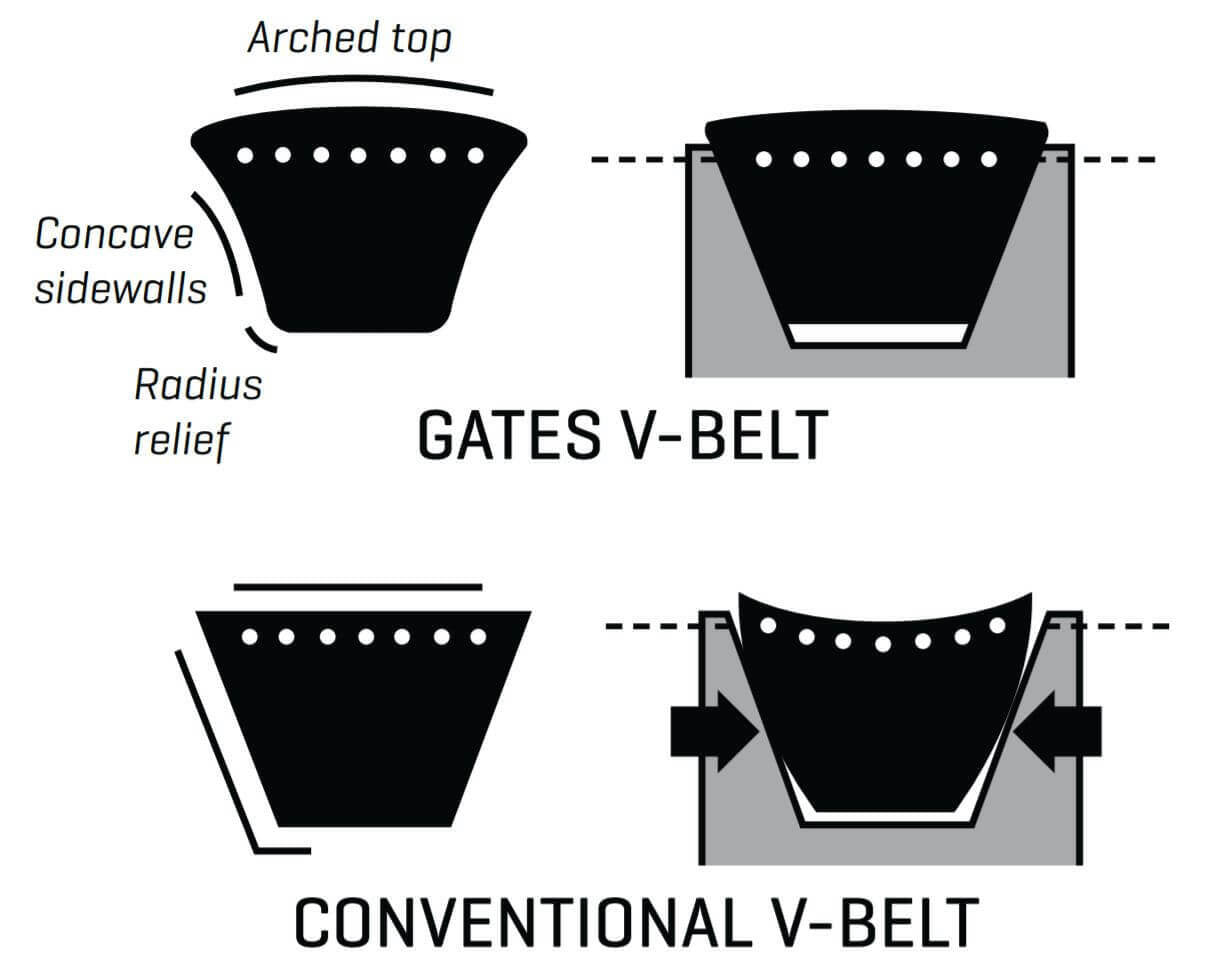

- Gates Curves provide full contact with pulley grooves for uniform loading of cords, uniform wear and increased belt life
- Flex-Bonded polyester cords for equal load distribution and reduced stress from flexin.
- Flex-Weave® cover is a patented fabric construction for longer life, providing extended protection to the belt core from oil, dirt and heat
- Non self-igniting - the belt will not catch fire from heat build-up, even with severe slippage
- Static conductive - ISO 1813 and RMA IP3-3
Advantages
- Premium performance
- Oil and heat resistant
- Excellent performance/cost ratio
- Suitable for dirty/dusty environments
- Match free system: all sizes meet Gates V80® tolerances, can be installed without matching
- Back idlers can be used
- Tolerates mild clutching or drive slip
Temperature Range
- Range: -35°C to +60°C
Specifications
Specifications

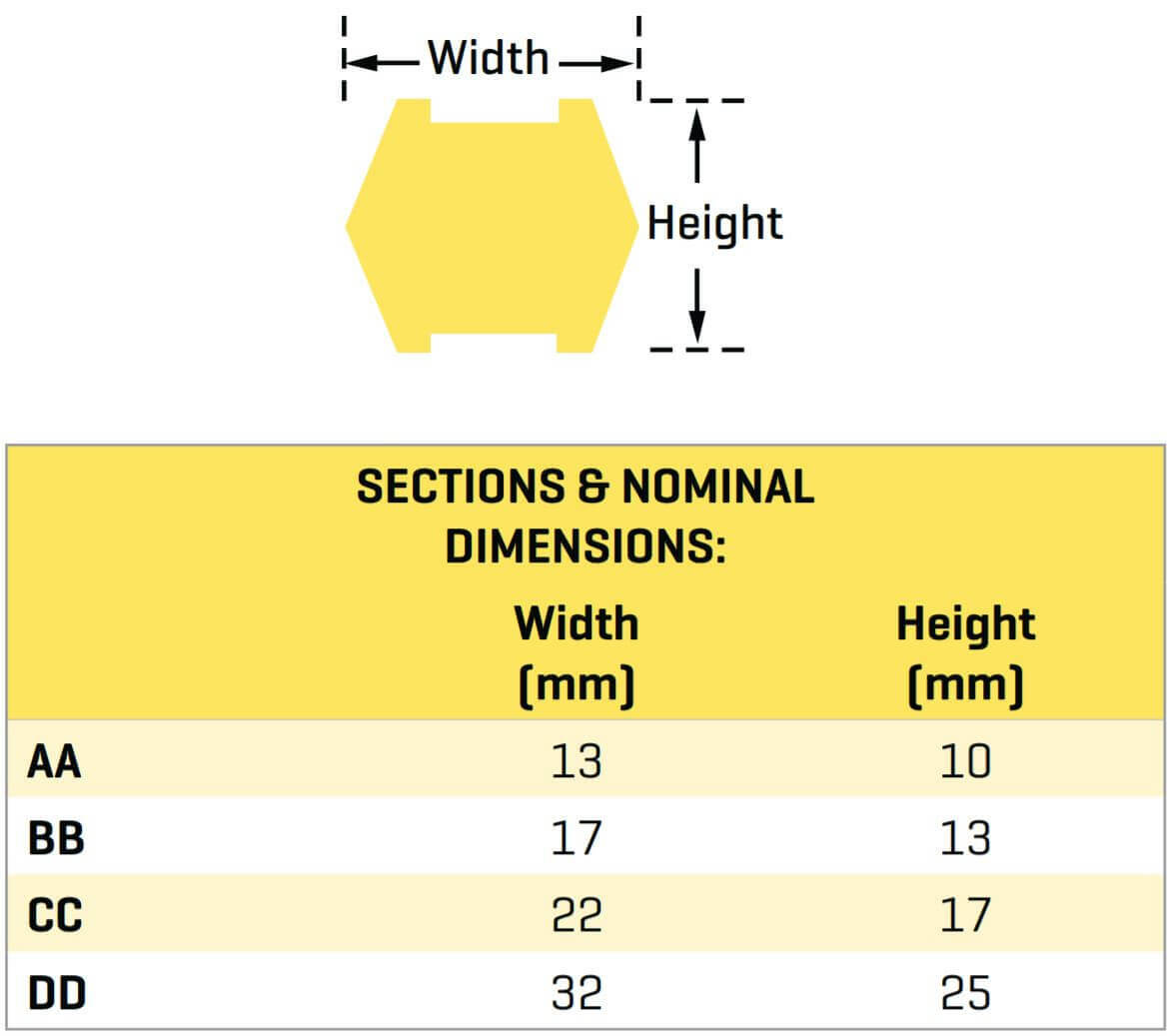

Dimensions
- Section: CC
- Width: 22 mm
- Height: 17 mm
- Effective Length: 96 in
Applications
Applications
Features & Benefits
Features & Benefits
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Gates Hi-Power II Double V Belt - CC Section
Gates Hi-Power II Double V Belt - CC Section
SKU: A0018006
- Wide Range
- Reliable Services
- Proven Trust
Available
The Gates Hi-Power II Double V Belt is characterised by a double-V profile and flex-bonded tensile cords. Measuring 22mm in width and 96 inches in length, it's suitable for 'serpentine' drives. Its FlexWeave® cover offers extended belt protection.
- FREE SHIPPING OVER $299*
- RETURN AND EXCHANGE POLICY
Couldn't load pickup availability
Description
Description
Descriptions
- Gates Hi-offer® II Dubl-V belt is characterised by a double-V profile. It uses flex-bonded tensile cords, which are highly resistant to flexing forces, and FlexWeave® cover for extended protection.
- It is the ideal solution for “serpentine” drives (drives with counter rotating shafts) where power is transmitted from both the top and bottom of the belt
Construction
- Classical cross-section
- Fibre-loaded compound for improved belt stability
- Gates Curves provide full contact with pulley grooves for uniform loading of cords, uniform wear and increased belt life
- Flex-Bonded polyester cords for equal load distribution and reduced stress from flexin.
- Flex-Weave® cover is a patented fabric construction for longer life, providing extended protection to the belt core from oil, dirt and heat
- Non self-igniting - the belt will not catch fire from heat build-up, even with severe slippage
- Static conductive - ISO 1813 and RMA IP3-3
Advantages
- Premium performance
- Oil and heat resistant
- Excellent performance/cost ratio
- Suitable for dirty/dusty environments
- Match free system: all sizes meet Gates V80® tolerances, can be installed without matching
- Back idlers can be used
- Tolerates mild clutching or drive slip
Temperature Range
- Range: -35°C to +60°C
Specifications
Specifications
Dimensions
- Section: CC
- Width: 22 mm
- Height: 17 mm
- Effective Length: 96 in
Applications
Applications
Features & Benefits
Features & Benefits
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Gates Hi-Power II Double V Belt - CC Section
Customer Service
Mon-Fri, 08:00-05:00pm
Call Us
(02) 9773-0122
Talk to a Sales Engineer
sales@aimsindustrial.com.au
Warehouse Address
Milperra NSW 2214, Australia
Your cart
(0)
Your cart is currently empty.
Not sure where to start? Try these collections:
Order note
Estimate Shipping
Product Comparison
| Description |
| Price |
| Vendor |
| Type |
| Product variants |
|
| The Gates Hi-Power II Double V Belt is characterised by a double-V profile and flex-bonded tensile cords. Measuring 22mm in width and 96 inches in length, it's suitable for 'serpentine' drives. Its FlexWeave® cover offers extended belt protection. |
Regular price
From $156.74
Sale price
From $156.74
Regular price
Unit price
/per
| Gates | Double Sided V-Belt - Hi-Power II Dubl-V Belts |
Length (inch)
96,105,112,128,144,154,162,173,180,330,360,158
V-Belt Code
CC96,CC105,CC112,CC128,CC144,CC154,CC162,CC173,CC180,CC330,CC360,CC158
|
Choose your option
Gates Hi-Power II Double V Belt - CC Section
Gates Hi-Power II Double V Belt - CC Section
SKU: A0018006
Available
The Gates Hi-Power II Double V Belt is characterised by a double-V profile and flex-bonded tensile cords. Measuring 22mm in width and 96 inches in length, it's suitable for 'serpentine' drives. Its FlexWeave® cover offers extended belt protection.
