Gates PowerBand Predator Belt Narrow Section - 8V Section

Gates Powerband - Predator - RMA Narrow Section

• Gates Predator Powerbandoffers a solution for drives where single belts vibrate, turn offer or jump off the pulleys.
• It consists of several V-belts joined together by a permanent, high strength tie band, thus being tougher than all the belts taken separately.
• Predator Powerband is especially designed for demanding applications and harsh environments, offering a high resistance to vibration.
• Classical B and C sections are available on request.

About Predator Matching System

• Predator belts have a matching system which must be used on multiple belt drives.
• This applies to both Single and Powerband versions of Predator belts.
• Predator belts are marked with a match/group number between 46 to 54 and each belt on a drive must have the same match/ group number.
• Each matching number refers to a length tolerance range.
• The limited stretch characteristic of the Predator belts makes it necessary to match them in this way.
• If matched belts are not used then it will severely impact performance and life.

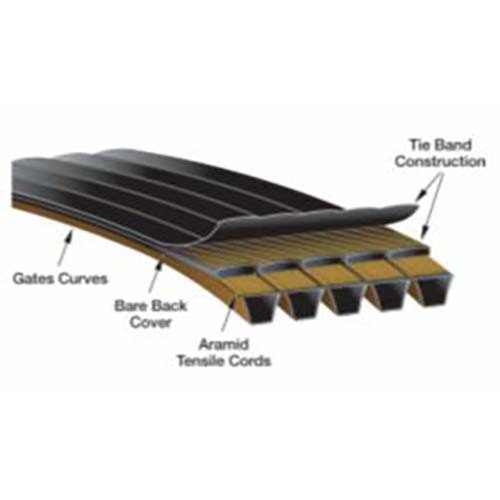

Construction

• Fibre-loaded compound for improved belt stability
• Gates Curves provide full contact with pulley grooves for uniform loading of cords, uniform wear, and increased belt life
• Non self-igniting - the belt will not catch fire from heat build-up, even with severe slippage
• Static conductive - ISO 1813 (SPB & SPC Predator Powerbands only)

Advantages

• High stability and smooth running on the toughest drives
• Maintenance free
• Up to 2.2 times more offer than standard V-belts
• Aramid tensile cords easily handle shock loads
• Up to 35% reduced drive cost
• Up to 67% reduced drive width
• Up to 50% reduced drive weight
• Double layer bare back cover protects against slippage and punctures
• No increase in shaft load
• Replace MTO 8V drives with standard SPC pulleys
• Reduce overhung loads
• No need for constant re-tensioning
• Excellent problem solver
• Back idlers can be used

Temperature Range

• Range: -35°C to +80°C
