Gates Tri-Power Notched (Cogged) Classical Section Belt - BX Section

Features & Benefits +

Advantages

15% capacity increase over wrapped belts.
Increase efficiency up to 3% over wrapped belts.
Use smaller diameter pulleys than wrapped belts.
Moulded notches reduce and evenly distribute thermal and bending stresses.
Match free system: all sizes meet Gates V80 tolerances, can be installed without matching.
Back idlers can be used.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

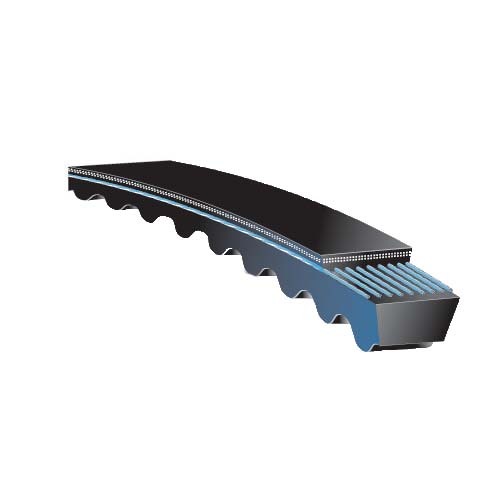

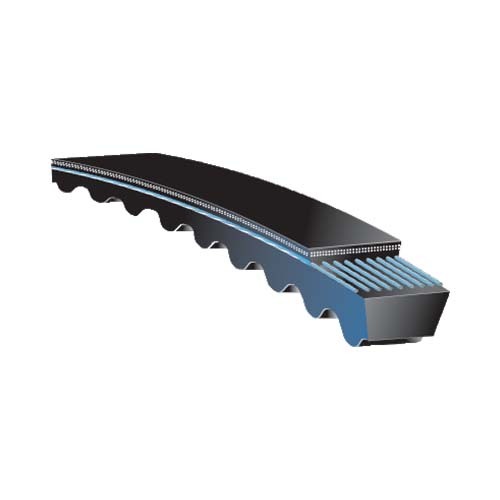

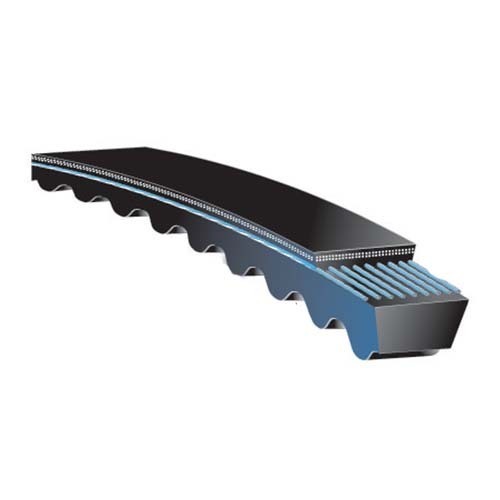

Gates Tri-Power Notched (Cogged) Classical Section Belt - BX Section

SKU: A0018236

Type: V-Belt

$25.07

Inc. GST

Gates Tri-Power Notched Belt features a classical cross-section and is designed for heavy-duty drives. It handles extreme temperatures up to +121°C due to its ethylene EPDM compound. The belt's raw edge construction suits small diameter pulleys and back idlers.

Available

Product Highlights −

Gates Tri-Power V Belt is built for superior performance on heavy duty drives of classical cross-section.
The raw edge construction and special notch design makes the Tri-Power belt especially suited for drives requiring small diameter pulleys and back idlers.
The ethylene EPDM compound allows the belt to handle extreme temperatures up to +121°C.

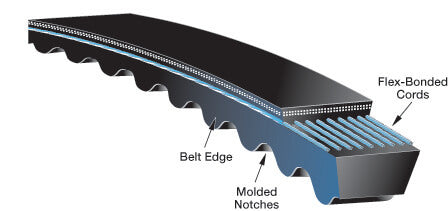

Construction

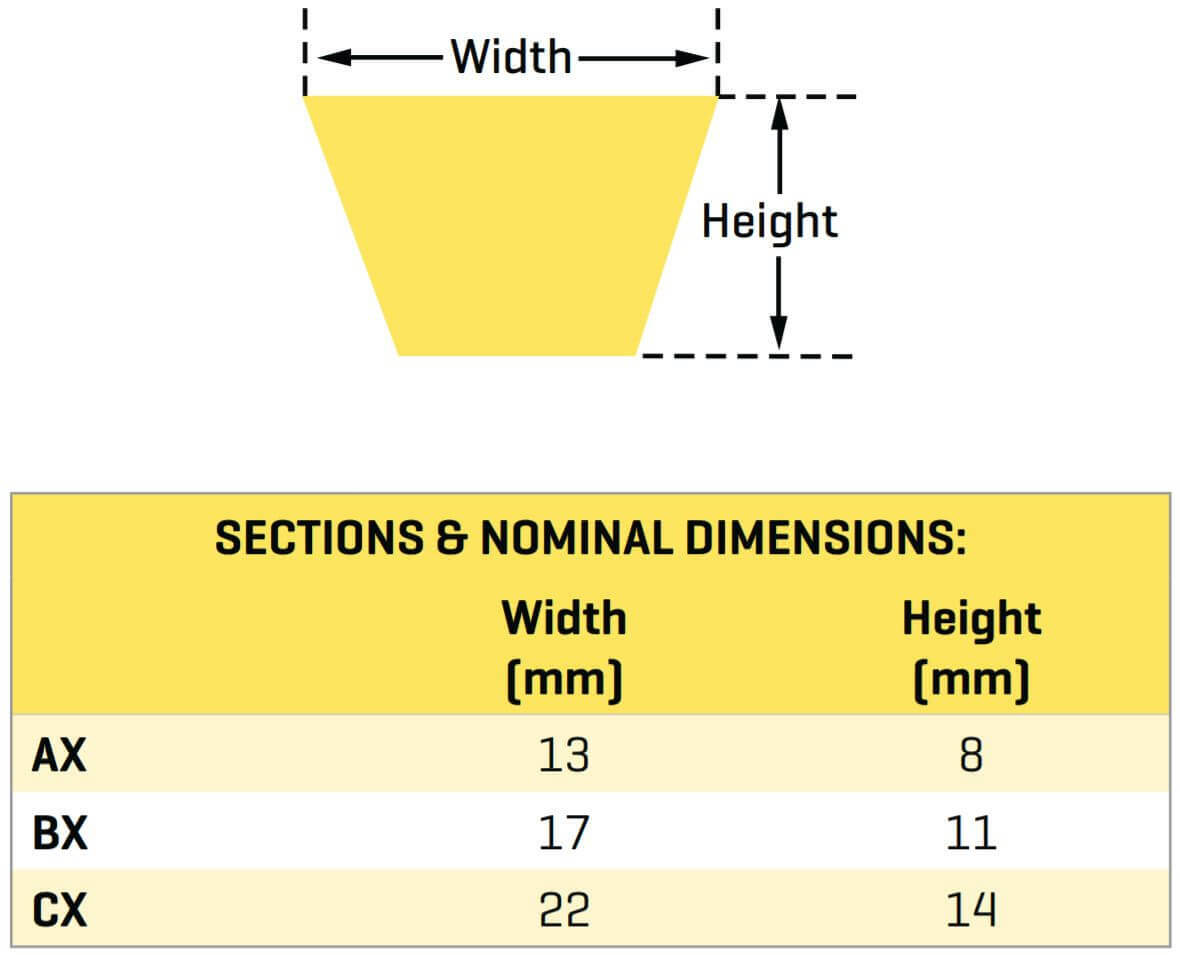

Classical cross-section.
Exclusive ethylene EPDM rubber compound for increased temperature range to resist cracking.
Fibre-loaded compound for improved belt stability.
Raw edge construction.
The moulded notch pattern also reduces noise.
Precision-ground sidewalls give a uniform wedging action.
Flex-Bonded polyester cords for equal load distribution and reduced stress from flexing.
Non self-igniting - the belt will not catch fire from heat build-up, even with severe slippage.
Static conductive - ISO 1813 and RMA IP3-3.

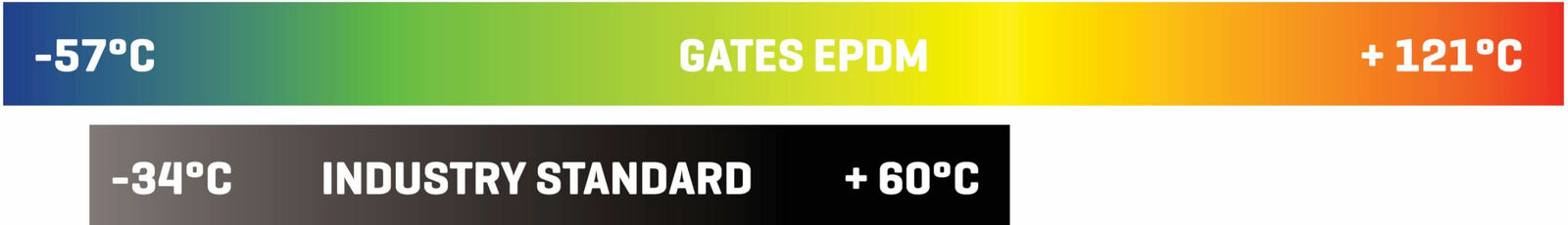

Temperature Range: -57°C to +121°C

AIMS Industrial Supplies Is an Authorised Gates V Belt Distributor
