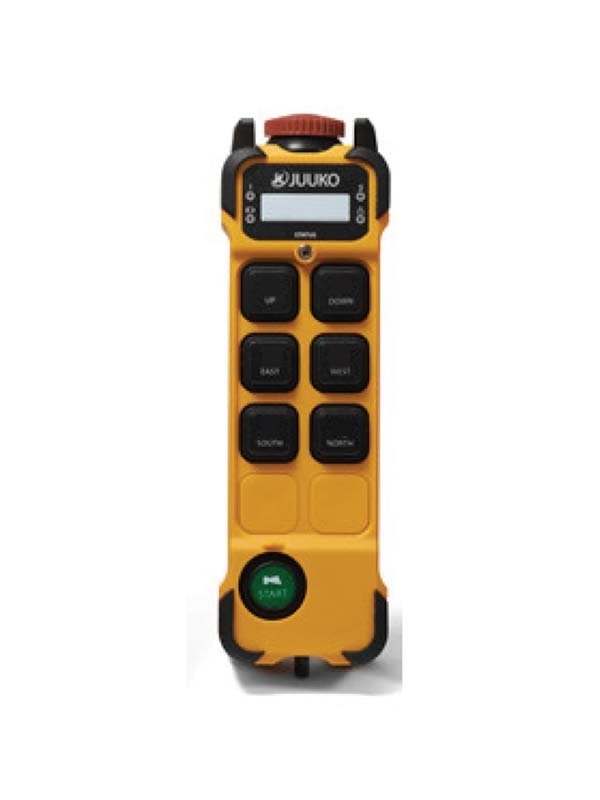

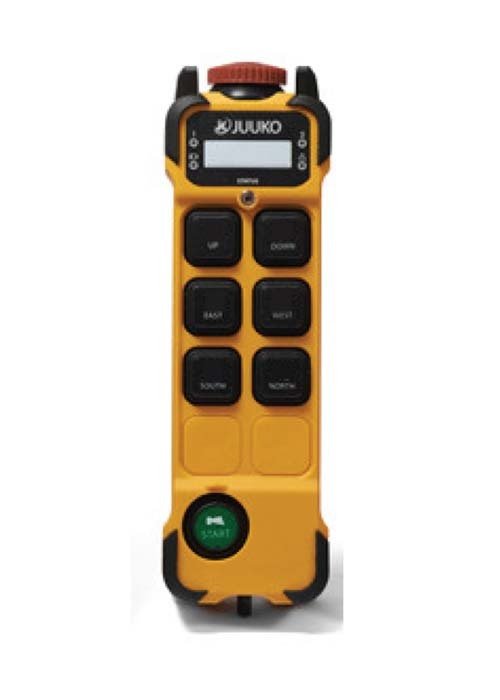

JUUKO dual speed radio remote control and receiver
Available
The JUUKO HS Dual Speed Remote Control and Receiver, 6 Button is part of the JUUKO range. The receiver voltage is a range of 24 to 240V AC/DC and the frequency band is 433.
The 6 button model has dual speed. The receiver voltage is 24 to 240V AC/DC.
Where this product is used
- Controlling an overhead crane or electric hoist from a safe distance
- Operating a hoist while guiding or positioning the load
- Replacing or adding a radio control to a hoist with a control voltage inside the receiver range
Features

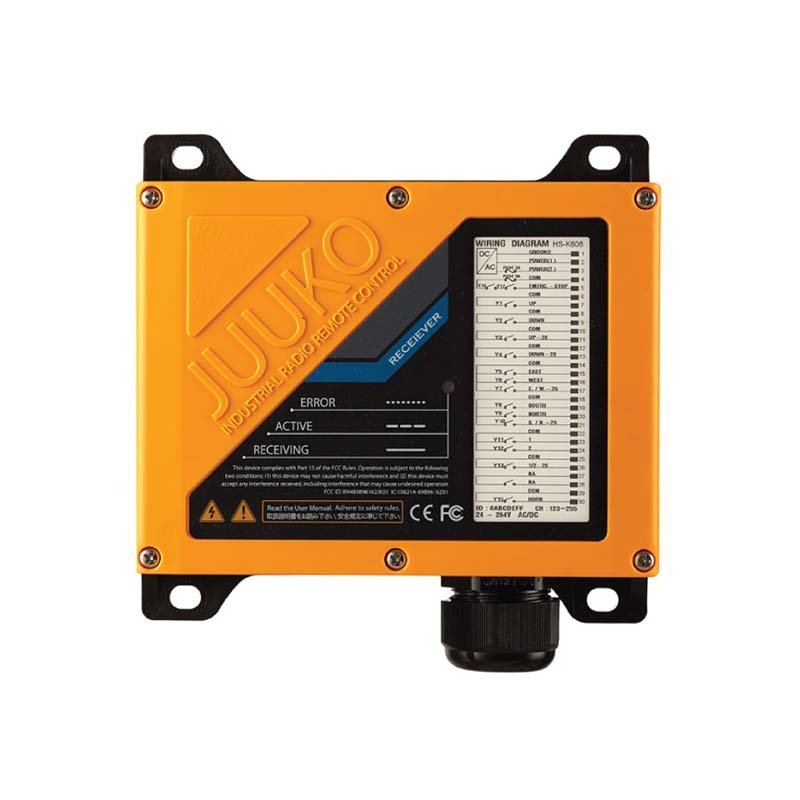

- HS Series medium-size receiver
- 6 buttons, dual speed
- 2 stop relays, 2 start relays and 13 command relays
- Automatic frequency switching to avoid radio interference
- 100m range with range control and close-start functionality
- Onboard data logging
- Receiver voltage 24 to 240V AC/DC
Key specifications
| Specification | Detail |
|---|---|
| Brand | JUUKO |
| Series | HS, medium-size receiver |
| Buttons | 6 |
| Speed | Dual speed |
| Receiver voltage | 24 to 240V AC/DC |
| Frequency band | 433 |
| Range | 100m |
| Number of transmitters | 1, 2 |
| Transmitter power supply | AA batteries |
Choosing the right option
Check that the receiver voltage range suits the control supply of your hoist or crane, that the button count and speed match the functions you want to control, and that the receiver is wired to the hoist control circuit by a qualified person. Check the number of transmitters you need. Choose between 1 and 2 transmitters on the model number: the part number ends R1T or R2T.
See also: Hitachi three phase electric chain hoists, Pacific Porta Hoist electric chain hoists.
| Option | Part number | SKU |
|---|---|---|
| 1 | HS-K6061R1T | A0176635 |
| 2 | HS-K6061R2T | A0176636 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
JUUKO HS Dual Speed Remote Control and Receiver, 6 Button: 1
SKU: A0176635 | Model: HS-K6061R1T
JUUKO HS-K6061R1T: dual speed radio remote control and receiver, 6 buttons, 1 transmitter, 24 to 240V AC/DC receiver, 433 band, 100m range.
