JUUKO Single Speed Remote Control and Receiver 2 Button

• The K-Series remote controls are easy to use and provide comfort due to their ergonomic design. The transmitter is constructed with ultra-high impact resistant corner bumpers for added protection and a rubber protective cover underneath the EMO button which is dust-resistant. The back of the remote control features a matt black rubber finish which is durable and offers a secure and comfortable grip.

Size
193 x 57 x 51mm
Weight
325g
Frequency Band
433MHz
Typical Operating Range
100m
Control System
PLL
Antenna Impedance
50Ω
Radio-frequency Power
<10dBm
Power Supply
DC3V (LR6(AA)1.5V*2)
Average Power Consumption
16mA a 3Vcc
Operating and Storage Temperature
(-25°C)-(+55°C) / (-40°C)-(+85°C)
Housing Material
PA(30%fg)
Protection Degree
IP65
Operating Distance
Up to 100m
Antenna Type and Impedance
50ohm

Size
190 x 184 x 64mm
Weight
1800g
Frequency
433MHz
Modulation Method
4FSK
Sensitivity
-122dBm@baud 1.2Kbps
Control System
PLL
Antenna Impedance
50Ω
Power Supply
24V~264 AC/DC
Average Power Consumption
15mA@AC220V (Standby Mode)

About JUUKO

• JUUKO is a pioneer in the development and manufacturing of industrial radio remote controls with a clear focus on safety, efficiency and productivity. Their products are used in over 20 countries around the world in the hoisting and cranes industry. The perfect tool for magnetic cranes, overhead cranes, electric chain hoists and tandem operations.

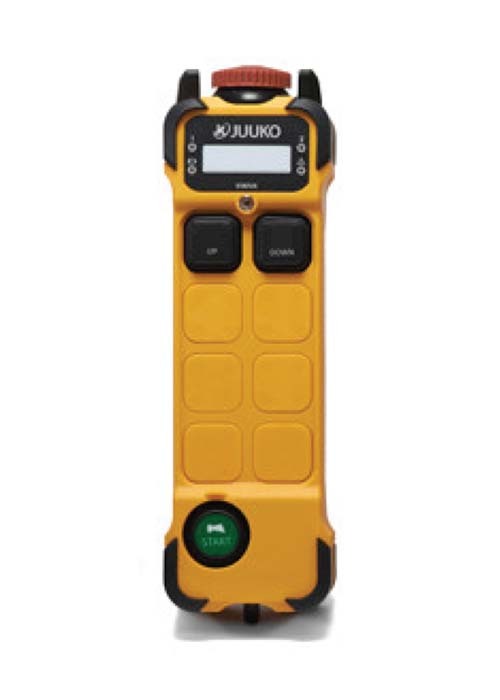

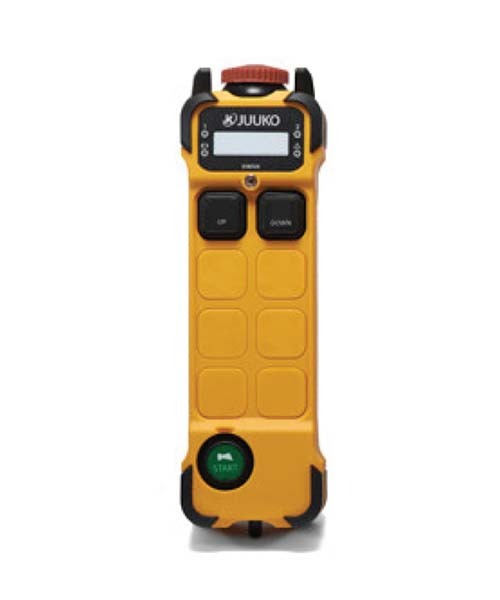

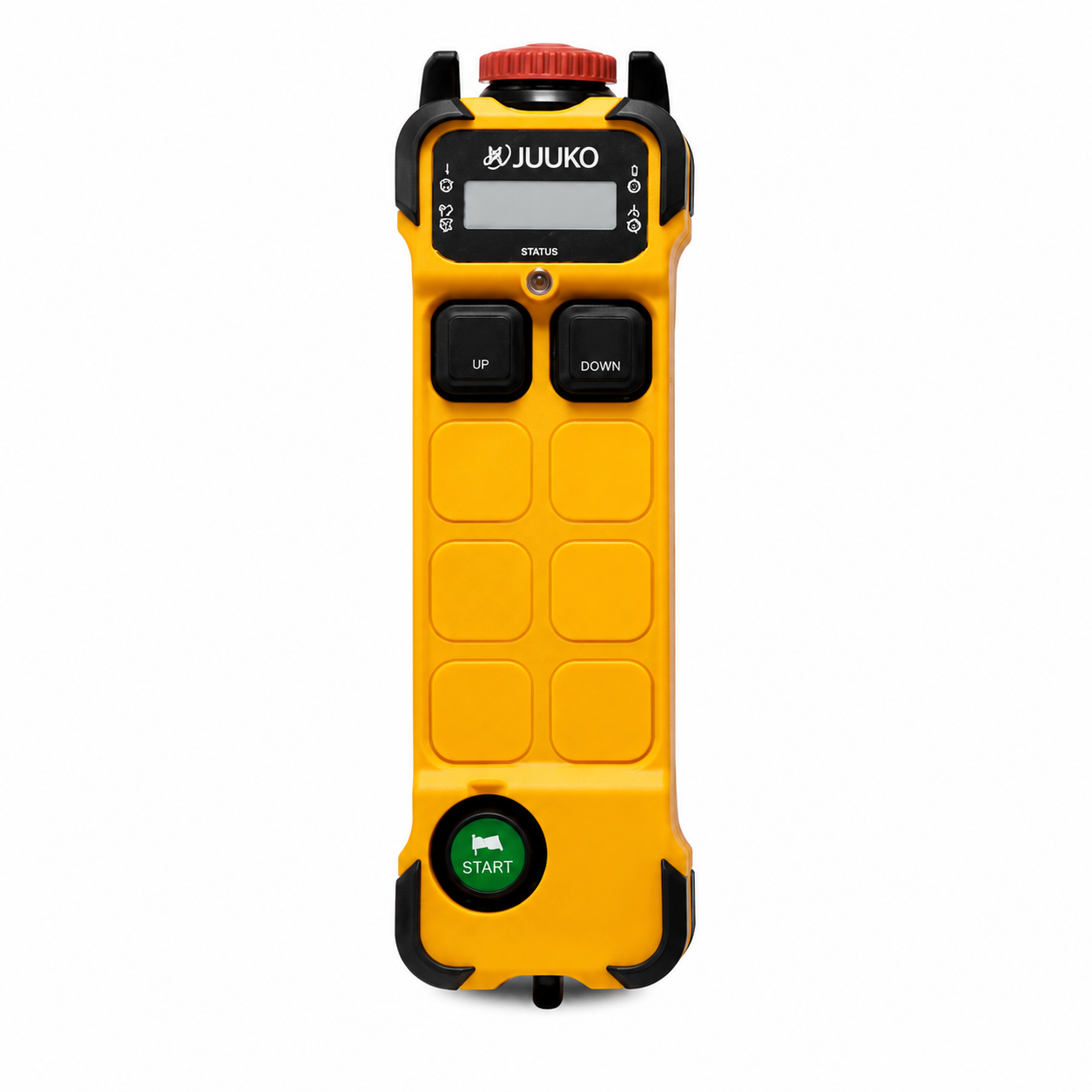

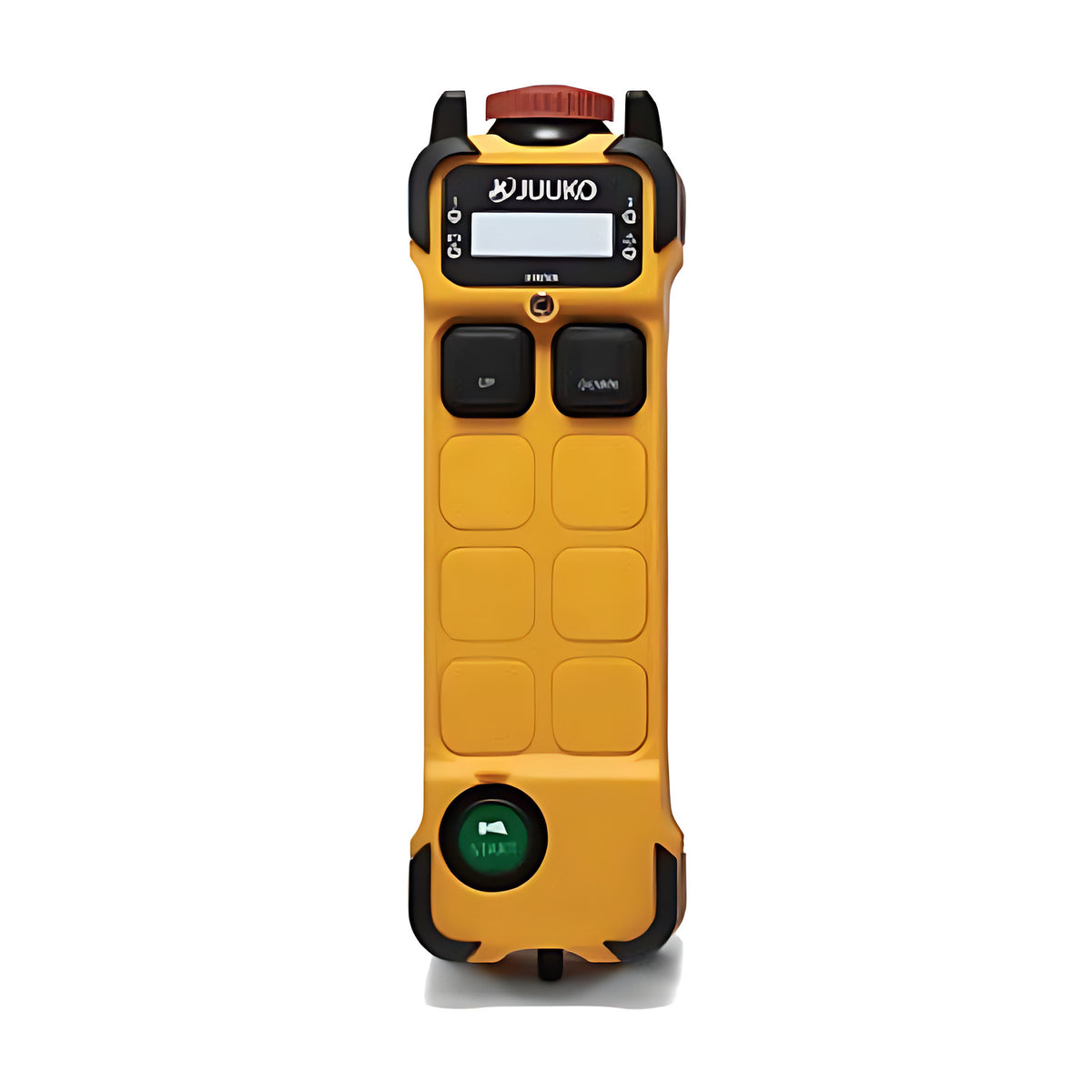

JUUKO K-Series Remote Control Transmitter Specifications

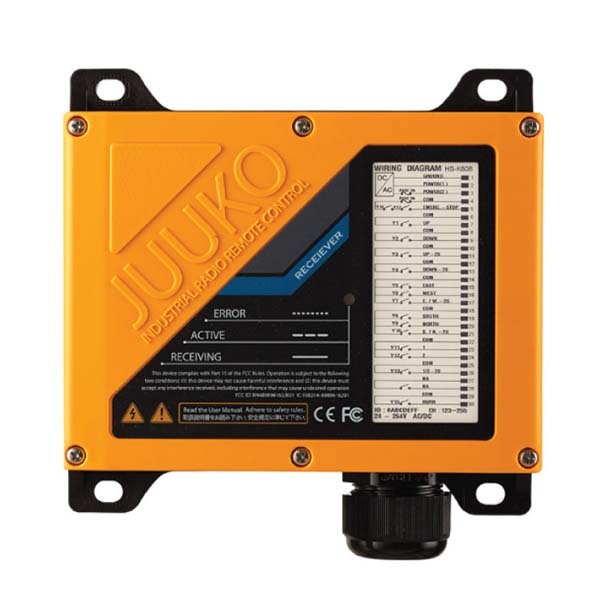

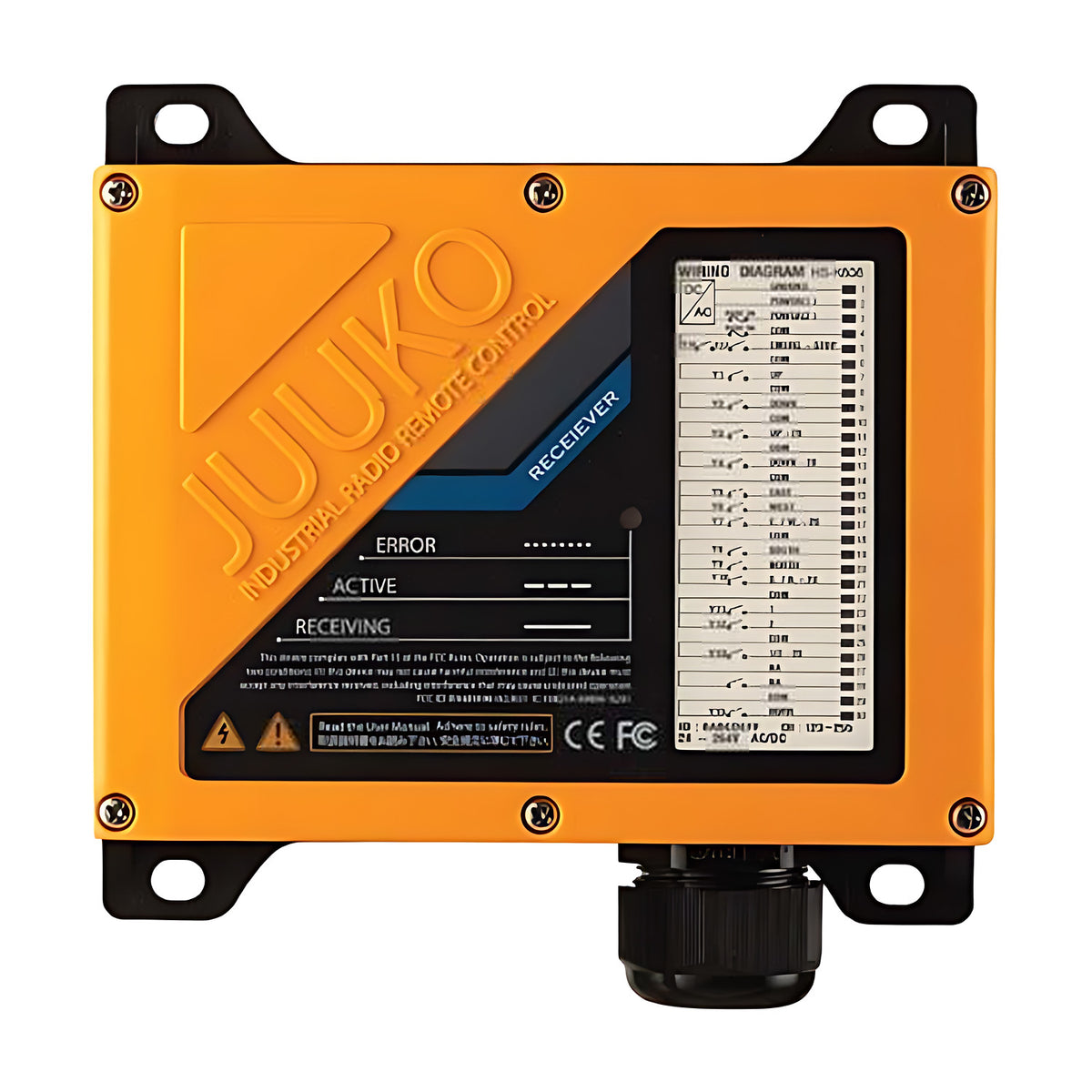

JUUKO HS-Series Receiver Specifications

Product Features

• Automatic channel switching allows users to select primary working frequency and secondary working frequency
• Range limiting function allows reduction of maximum distance for the transmitter to continue operating
• Electronic key-code and automatic shut-off option programmable to prevent accidental activation of the transmitter
• Eco power management system to save battery life
• Receive and displays via 4 LED signals coming from the receiver (to relay action feedback)
• Mushroom type EMO button
• Internal Bootloader, firmware up to date by using a computer
• Wireless pairing procedure by using pendant push buttons
• Independent LED's to indicate the status of battery
• Data logging Black Box system included, which records date and remote usage
• Suitable for CP / CWG winches, all single-speed hoists

Transmitter Features

• Ergonomic Design: Easy to use and provide comfort
• Protection: Constructed with ultra-high impact resistant corner bumpers for added protection and a rubber protective cover underneath the EMO button which is dust-resistant.
• Durability: The back of the remote control features a matt black rubber finish which is durable and offers a secure and comfortable grip.
• Multi-control system - master/slave, take/release, tandem
