JUUKO HS-K2001R1T Single Speed Remote | AIMS Industrial

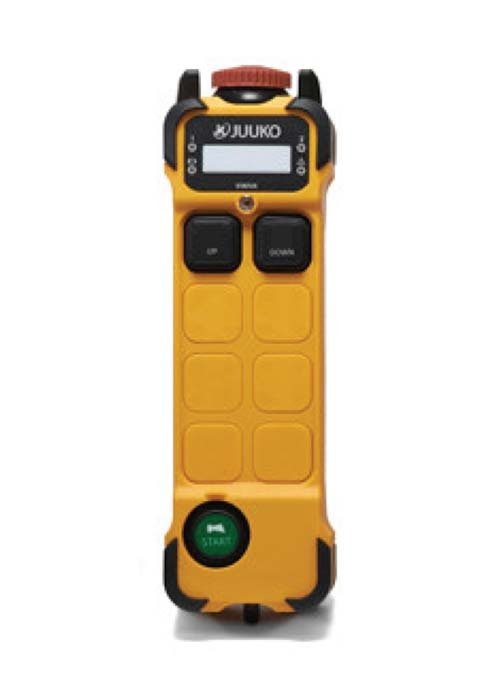

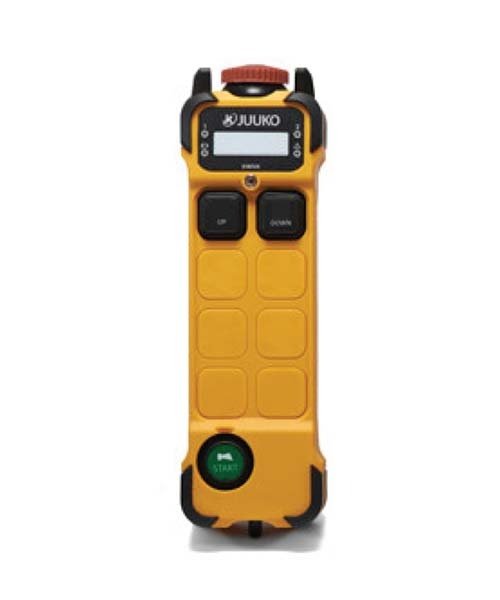

JUUKO Single Speed Remote Control and Receiver 2 Button

• The K-Series remote controls are easy to use and provide comfort due to their ergonomic design. The transmitter is constructed with ultra-high impact resistant corner bumpers for added protection and a rubber protective cover underneath the EMO button which is dust-resistant. The back of the remote control features a matt black rubber finish which is durable and offers a secure and comfortable grip.

Size
193 x 57 x 51mm
Weight
325g
Frequency Band
433MHz
Typical Operating Range
100m
Control System
PLL
Antenna Impedance
50Ω
Radio-frequency Power
<10dBm
Power Supply
DC3V (LR6(AA)1.5V*2)
Average Power Consumption
16mA a 3Vcc
Operating and Storage Temperature
(-25°C)-(+55°C) / (-40°C)-(+85°C)
Housing Material
PA(30%fg)
Protection Degree
IP65
Operating Distance
Up to 100m
Antenna Type and Impedance
50ohm

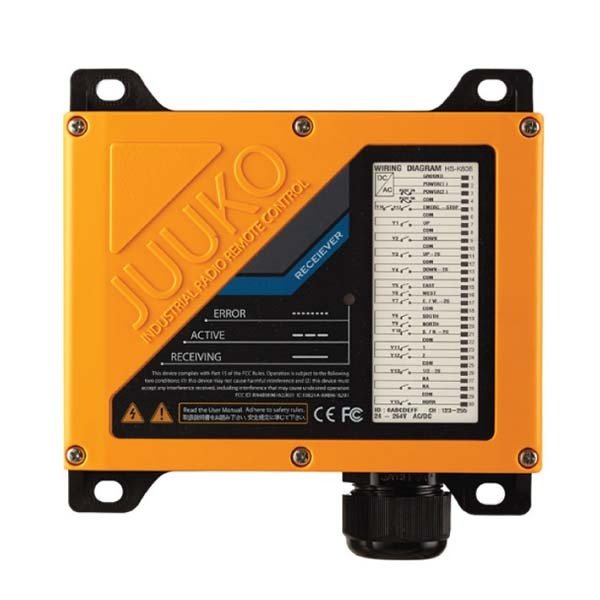

Size
190 x 184 x 64mm
Weight
1800g
Frequency
433MHz
Modulation Method
4FSK
Sensitivity
-122dBm@baud 1.2Kbps
Control System
PLL
Antenna Impedance
50Ω
Power Supply
24V~264 AC/DC
Average Power Consumption
15mA@AC220V (Standby Mode)

About JUUKO

• JUUKO is a pioneer in the development and manufacturing of industrial radio remote controls with a clear focus on safety, efficiency and productivity. Their products are used in over 20 countries around the world in the hoisting and cranes industry. The perfect tool for magnetic cranes, overhead cranes, electric chain hoists and tandem operations.
