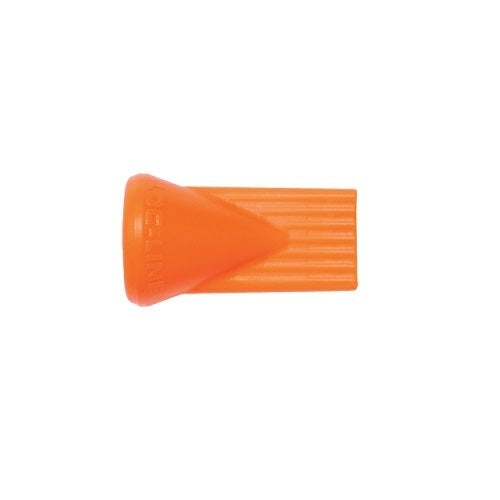

Loc-Line 1/4" flat 7 hole nozzle: 41486 pack of 4, 4

Loc-Line 41486 and 49454 are the 1/4" flat 7 hole nozzle for the 1/4" Loc-Line modular hose system (Lockwood Products, USA). It comes in 2 options: 41486 (pack of 4) and 49454 (pack of 20). The 1/4" flat 5 hole nozzle (41485, 49453) has a hole diameter of 0.060" against 0.040" for this one.

The 1/4" flat nozzle assortment pack (41487) includes one flat 7 hole nozzle with a flat slot 40, a flat slot 60 and a flat 5 hole nozzle.

Where this product is used

• Machine tool coolant supply, applying liquid coolant at the point of contact between the cutting tool and the target metal
• Other uses: the electronic, scientific, graphic arts and woodworking industries, and any job needing adjustable directional flow of fluid, air or vacuum, or third arm positioning

Features

• 41486 (pack of 4) and 49454 (pack of 20): 1/4" flat 7 hole nozzle
• Made for the 1/4" Loc-Line modular hose system

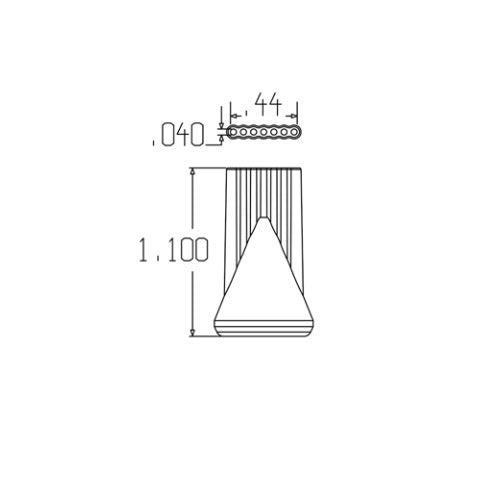

• Hole diameter 0.040"
• Colour suffixes printed for 49454: -BLK (black) and -G (grey)

Key specifications

Choosing the right option

Match the nozzle to the hose system: this is a 1/4" system part, so it does not suit hose from another system. 41486 (pack of 4) and 49454 (pack of 20) are the same nozzle; the difference is the quantity. The 7 hole and 5 hole nozzles differ in hole count and hole diameter (0.040" and 0.060").

Other 1/4" flat nozzles: 1/4" flat 5 hole nozzles, 1/4" flat slot 40 nozzles, 1/4" flat slot 60 nozzles.

Matching 1/4" system parts: 1/4" hose, 5 ft coil, 1/8" NPT connectors, 1/8" round nozzles.
