Loctite 515 Master Gasket Flexible Sealant

Flexible form-in-place gasket that moves with minor flange movement on rigid metal faces. Fills flange gaps up to 0.25 mm and resists low pressures straight after assembly. AGA approved for gas in Australia — Class II, 500 kPa, -10°C to +150°C. Loctite 515 is a purple anaerobic flange sealant for pumps, thermostats, compressors, transmission housings and axle covers. It fixtures in about 30 minutes and fluoresces under UV for inspection. Tighten flanges as soon as possible after assembly to avoid shimming.

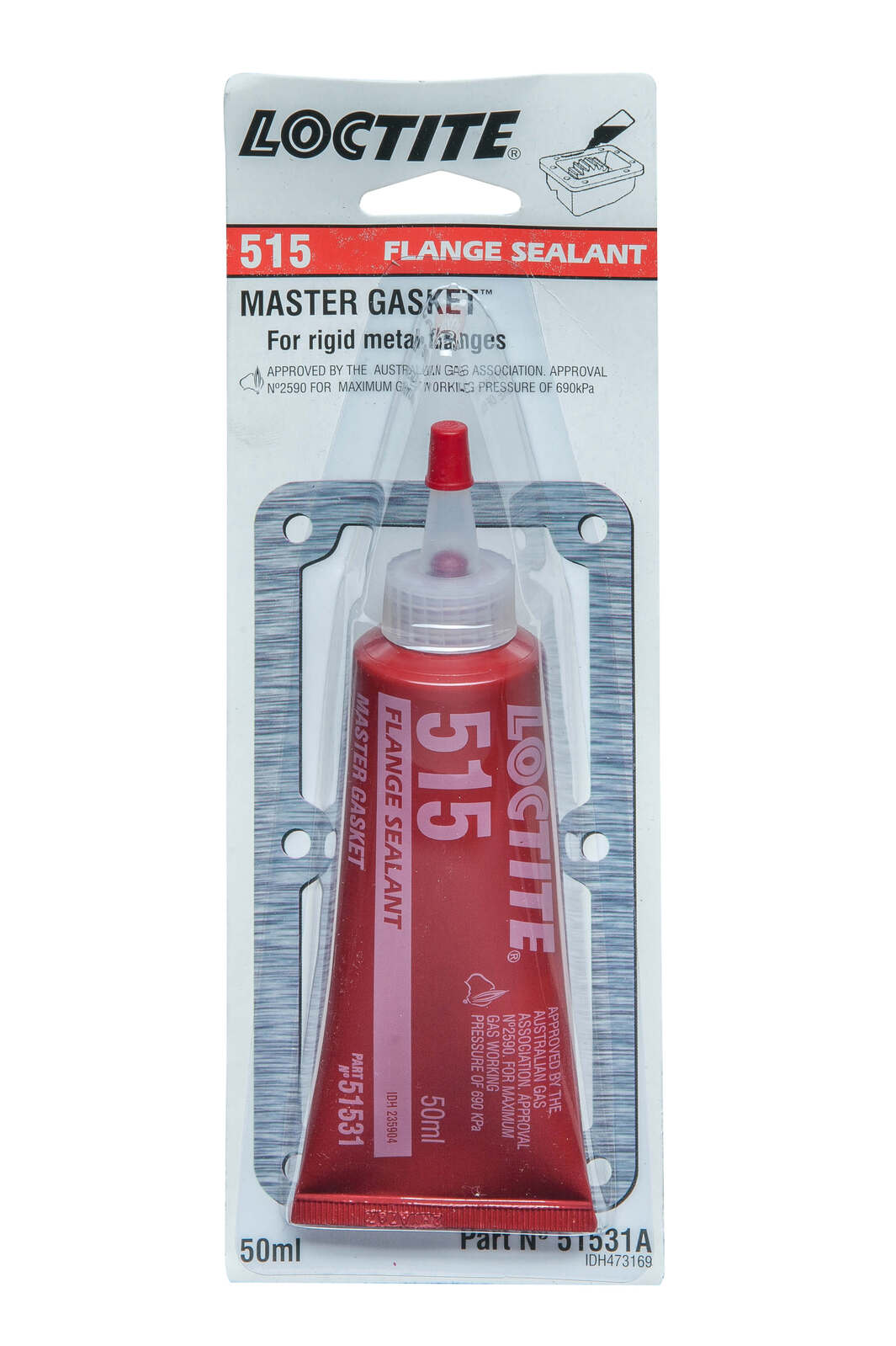

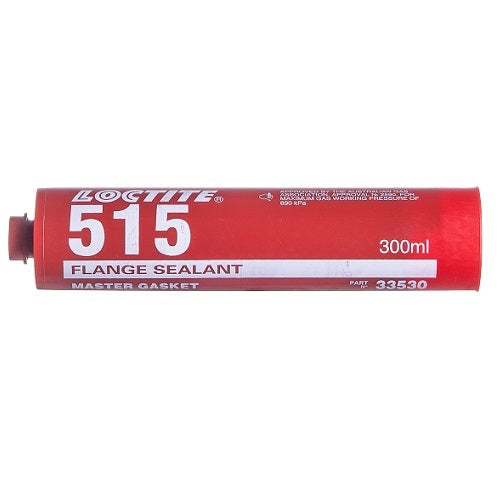

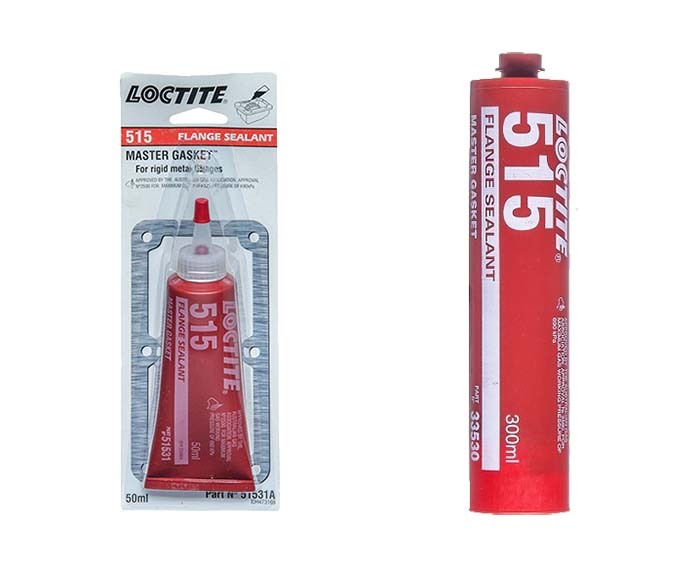

Product: Loctite 515 Master Gasket Flange Sealant. Size: 50 ml tube; 300 ml cartridge. Technology: acrylic, anaerobic. Chemical type: methacrylate ester. Appearance: opaque dark purple; fluorescent under UV. Cure: anaerobic. Viscosity (Brookfield HBT, 25°C, 5 rpm): 150,000–375,000 mPa·s. Specific gravity (25°C): 1.1. Gap fill: up to 0.25 mm. Fixture time: 30 minutes. Lap shear strength (ISO 4587, grit-blasted steel): 6.0 N/mm². Approvals: AGA certificate 2590 (Class II, 500 kPa, -10°C to +150°C); UL classified MH8007. Storage: 8°C to 21°C, dry. Consult the Safety Data Sheet before use.

At a glance

• Pumps and compressors — form-in-place gaskets on machined flanges
• Thermostat housings — flexible seal on close-fitting faces
• Transmission housings and axle covers — replacing cut gaskets
• Gas equipment flanges — AGA-approved sealant (Class II, 500 kPa)

Full specifications, applications, features and important limits are in the tabs below.
