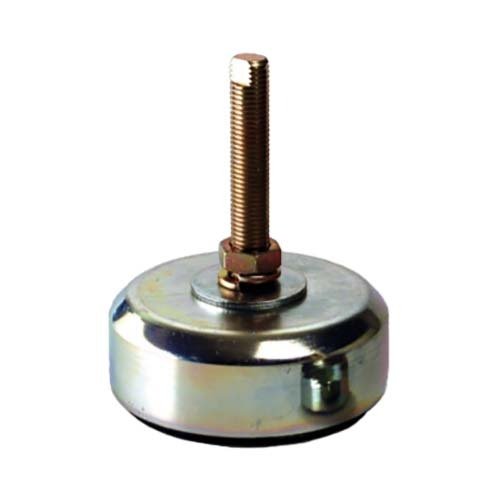

Mackay Levelling isolator, 144mm
Available
It is an effective and durable way to isolate free-standing equipment and machinery on non-level surfaces, and it is made using Nitrile rubber, which has better chemical and oil resistance than natural rubber.
This is the standard range, made with electrolytically plated zinc applied to automotive standards. It has 5 part numbers, M400300 to M406000, with threads from M12 x 1.75 to M24 x 3.0 and load ranges that run end to end from 30kg to 6000kg. For the first three sizes a stainless steel (type 304) version is available, recommended where better corrosion resistance is required.
Where this product is used
- Machine levelling at low cost, for isolator loads up to 6000kg
- Isolating free-standing equipment and machinery on non-level surfaces
- Installing machinery with less vibration, less noise and less wear, and less downtime when moving it
Features
- Designed for cost-effective machine levelling, for isolator loads up to 6000kg
- Made using Nitrile rubber for better chemical and oil resistance than natural rubber
- Standard range made with electrolytically plated zinc applied to automotive standards
- It has an exposed base range (B to C) and an adjustment range (D to E) for each size
Key specifications
| Specification | Detail |
|---|---|
| Brand | Mackay |
| Product type | Vibration Isolator |
| Part numbers | M400300 to M406000 |
| Thread (F) | M12 x 1.75, M16 x 2.0, M20 x 2.5, M24 x 3.0, M24 x 3.0 |
| Load range | 30 to 300kg, 300 to 1200kg, 1200 to 2500kg, 2500 to 4000kg, 4000 to 6000kg |
| Overall height (A) | 119mm, 144mm, 177mm, 212mm, 218mm |
| Weight | 0.4kg, 1.1kg, 2.5kg, 5.2kg, 6.4kg |
| Material | Nitrile rubber with electrolytically plated zinc metal parts |
| Mackay part number | M400300, M401200, M402500, M404000, M406000 |
| Load range (kg) | 30 to 300, 300 to 1200, 1200 to 2500, 2500 to 4000, 4000 to 6000 |
| Overall height A (mm) | 119 to 218 |
| Deflection at max exposed base, min to max load (mm) | 0.2 to 2.3, 1.5 to 5.9, 3.0 to 6.3, 4.1 to 6.5, 6.5 to 9.7 |
| Weight (kg) | 0.4 to 6.4 |
Choosing the right option
Share the machine weight across the number of feet and choose the size whose load range covers the load on each foot. The ranges meet at 300, 1200, 2500 and 4000kg, so where a load sits on one of those figures compare the deflection figures (given at the minimum and maximum load) and the base diameter to choose. All properties are nominal.
Related Mackay products: Mackay Surefoot Levelling Isolator Stainless Steel, Mackay Adjustable Rubber Foot SV Type, Mackay Adjustable Rubber Foot JT Type, Mackay Adjustable Rubber Foot SX - 10 to 25kg.
| Option | SKU |
|---|---|
| 119 | A0166922 |
| 144 | A0166923 |
| 177 | A0166924 |
| 212 | A0166925 |
| 218 | A0166926 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Mackay Surefoot Levelling Isolator: 144
SKU: A0166923 | Model: M401200
Mackay M401200: Surefoot levelling isolator, M16 x 2.0 thread, 300 to 1200kg load range, 144mm overall height, 1.1kg. Exposed base, min (B): 8.8mm.
