Pferd ZYA burr, 10 x 20mm

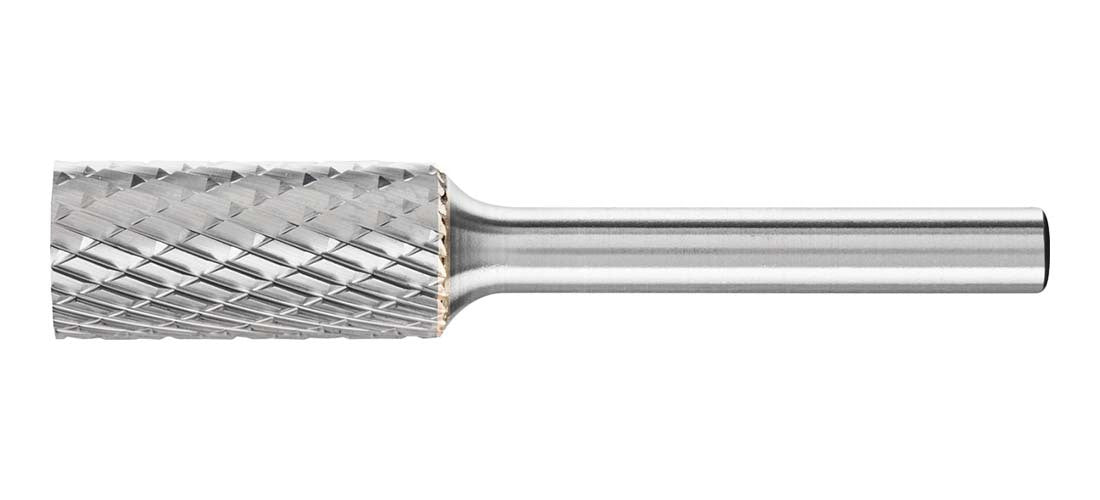

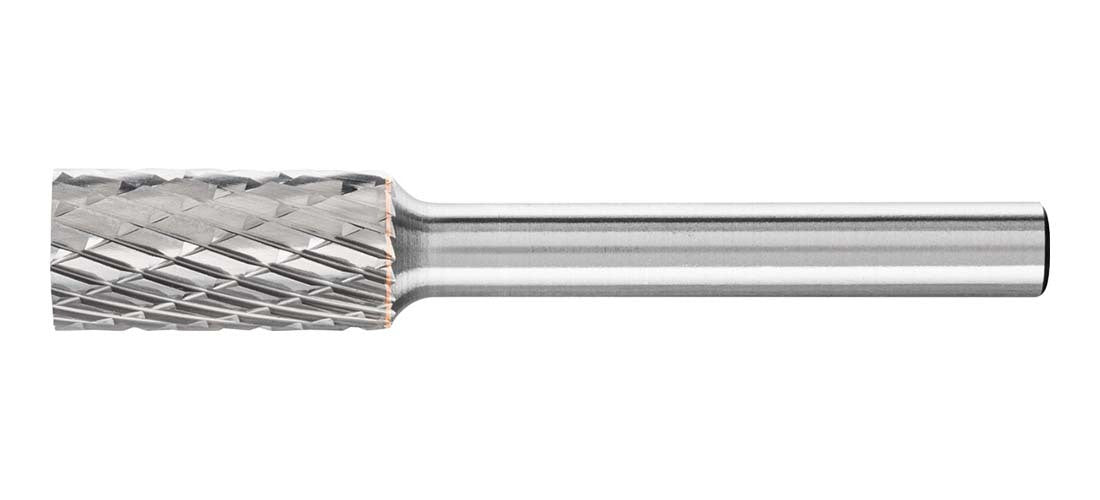

The Pferd ZYA Cylindrical Burr is a tungsten carbide burr in TOUGH cut with a 6mm shank. The range has 2 options, with head sizes of 10 x 20 and 12 x 25mm (diameter x cut length) and total lengths of 60 to 65mm.

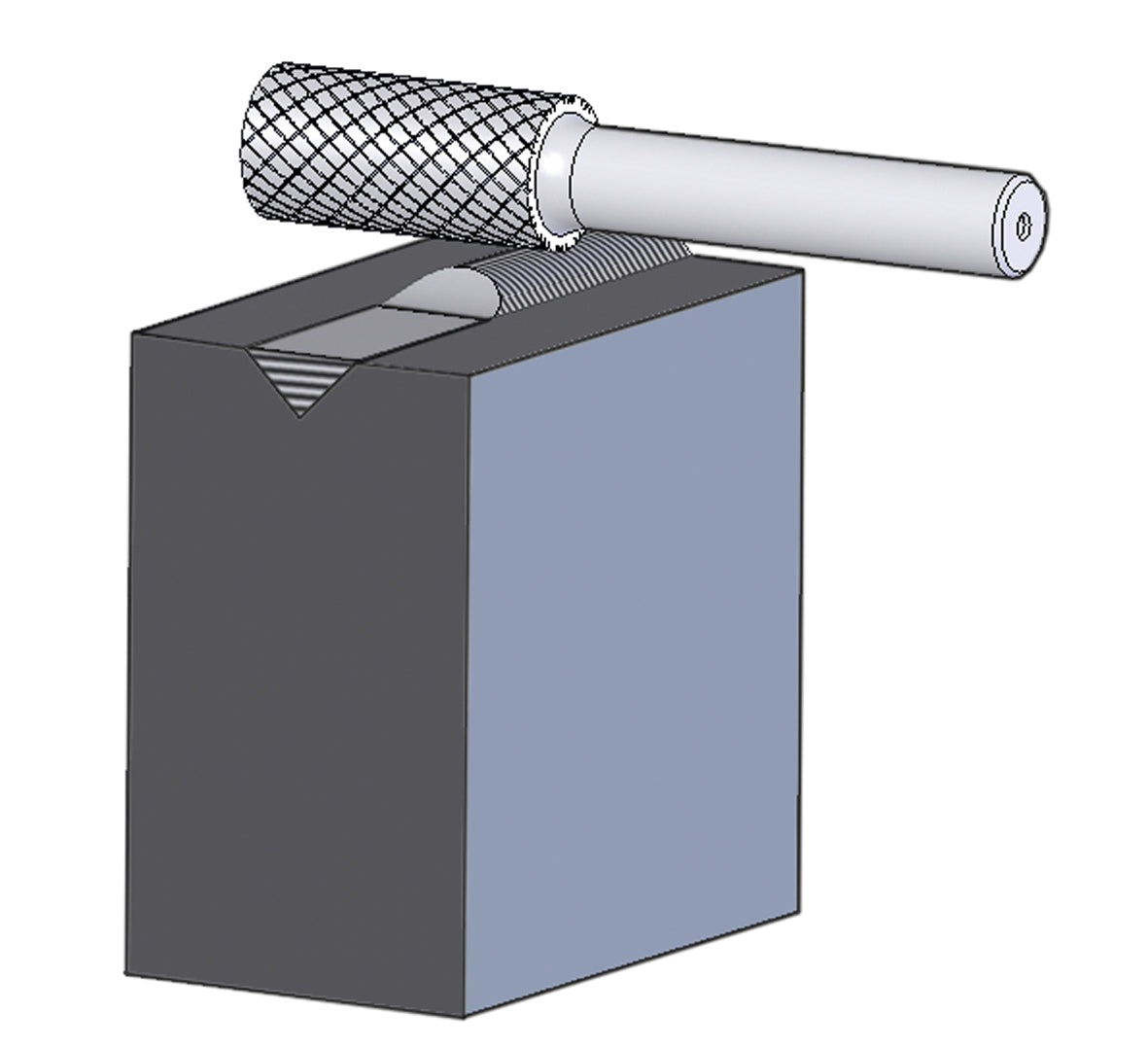

The ZYA is a cylindrical burr to DIN 8032 for tough applications in dockyards, foundries and steel construction. The TOUGH cut gives a high stock removal rate on cast iron and steel below 54 HRC, is extremely resistant to impacts and is also suitable for use under impact loads. It suits work where standard burrs suffer broken teeth. Key features: the extremely impact-resistant cut minimizes tooth chipping, breakage, splintering and burr failure, can also be used in low rotational speed ranges, reduced wear on the tool drive from impact-free work without chatter marks, thanks to the high concentricity.

Where this product is used

• Cast iron and steel below 54 HRC
• Tough applications in dockyards, foundries and steel construction
• Work where standard burrs suffer tooth breakage

Features

• TOUGH Cut: impact-resistant cut for cast iron and steel below 54 HRC
• Cylindrical head without end cut, 6mm shank
• Head sizes 10 x 20 and 12 x 25mm, total length 60 to 65mm
• The extremely impact-resistant cut minimizes tooth chipping, breakage, splintering and burr failure
• Can also be used in low rotational speed ranges

Key specifications

Choosing the right option

Check that your tool holds a 6mm shank. The TOUGH-S cut is a similar cut with smoother milling and shorter chips. Do not exceed the maximum permitted rotational speed, wear eye protection, hearing protection and a dust mask, and do not use a damaged burr.

Same cut in other shapes: Pferd ZYAS Cylindrical End Cut Burr, TOUGH Cut, 6mm Shank, 8 x 20 and 10 x 20mm, Pferd WRC Cylindrical Radius End Burr, TOUGH Cut, 6mm Shank, 12 x 25mm (21000036).

Same shape in other cuts: Pferd ZYA Cylindrical Burr, Cut 3 PLUS, 6mm Shank, 4 x 13 to 16 x 25mm, Pferd ZYA Cylindrical Burr, Cut 5, 6mm Shank, 6 x 16 and 12 x 25mm.
