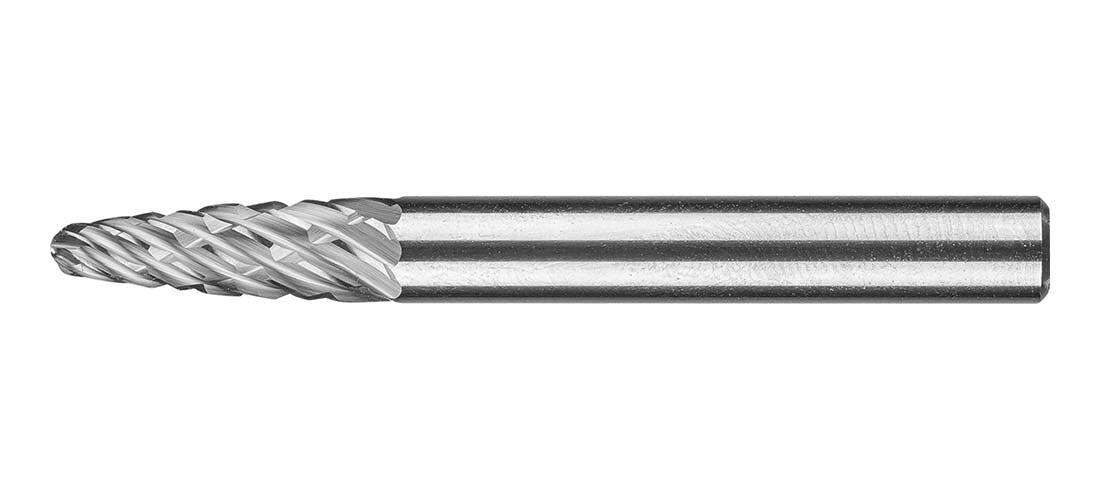

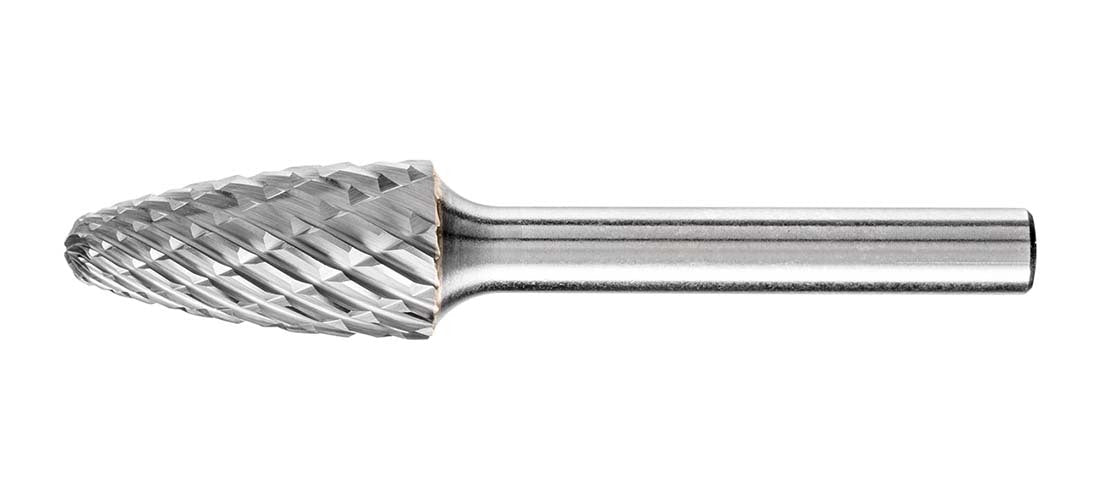

Pferd tree Shape Burr RBF, 12 x 25mm

This Pferd tree shape burr with radius end (RBF) is a tungsten carbide burr in ALLROUND cut on a 6mm shank. It comes in 3 head sizes: 6 x 18 to 12 x 25mm.

The ALLROUND cut gives a high stock removal rate on key materials such as steel, cast steel, stainless steel (INOX), non-ferrous metals and cast iron. The RBF is a tree-shaped burr with radius end to DIN 8032 for versatile, economical and time-saving use on steel and cast steel, stainless steel (INOX), non-ferrous metals and cast iron. Key features: comfortable working thanks to reduced vibration and less noise, reduced wear on the tool drive from impact-free work without chatter marks, thanks to the high concentricity.

Where this product is used

• Steel and cast steel, stainless steel (INOX), non-ferrous metals and cast iron
• Versatile, economical and time-saving use across these materials

Features

• Tungsten carbide, tree shape with radius end (RBF)

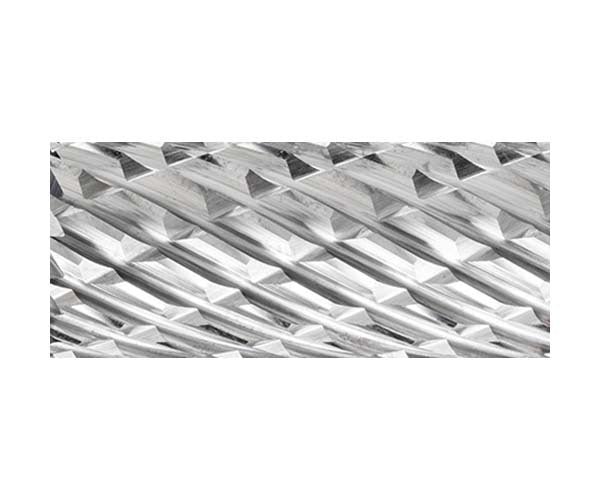

• ALLROUND: high stock removal rate on steel, cast steel, stainless steel (INOX), non-ferrous metals and cast iron
• 6mm shank
• Head sizes 6 x 18 to 12 x 25mm, overall lengths 55, 60 and 65mm
• Comfortable working thanks to reduced vibration and less noise
• Reduced wear on the tool drive from impact-free work without chatter marks, thanks to the high concentricity

Key specifications

Choosing the right option

Choose the head size and shank to suit the job and your tool. The cutting speed is 450 to 750 m/min for steels up to 1,200 N/mm2, and the rotational speed follows from the burr diameter. Do not exceed the maximum permitted rotational speed, observe the recommended rotational speed (especially with long shanks), wear eye and hearing protection and a dust mask, and do not use a damaged burr or use the burr for cutting.

Same shape and cut in other sizes or shanks: Pferd Tree Shape Burr RBF, ALLROUND, 6.35 x 15.9 to 12.7 x 25.4mm, 6.35mm Shank.

Same shape with other cuts: Pferd Tree Shape Burr RBF, TOUGH, 10 x 20 and 12 x 25mm, 6mm Shank, Pferd Tree Shape Burr RBF, INOX, 6 x 18 and 12 x 25mm, 6mm Shank.

Same cut in other shapes: Pferd Conical Radius End Burr KEL, ALLROUND, 10 x 20 and 12 x 25mm, 6mm Shank, Pferd Conical Pointed Burr SKM, ALLROUND, 6 x 18 and 12 x 25mm, 6mm Shank.
