Sutton B206 Carbide Burr - Flame Shape - Double Cut1
Sutton B206 Carbide Burr - Flame Shape - Double Cut2
Sutton B206 Carbide Burr - Flame Shape - Double Cut1
Sutton B206 Carbide Burr - Flame Shape - Double Cut2

Sutton B206 Carbide Burr - Flame Shape - Double Cut

Sutton B206 Carbide Burr - Flame Shape - Double Cut

SKU: A0002495

Type: Burr

$23.78
$23.78
Inc. GST
Buy It Now

Available

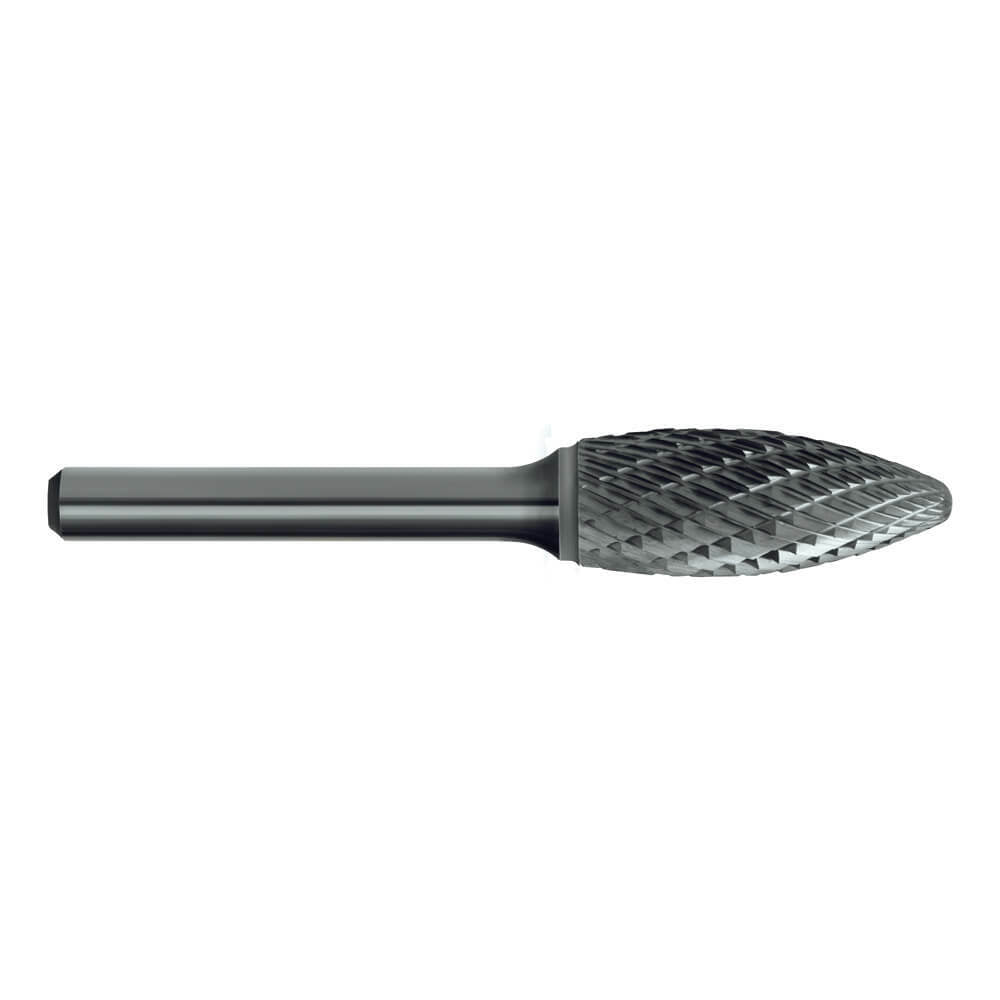

The Sutton B206 Carbide Burr boasts a flame shape and double cut. Measuring 1/2 inch (d1), 1/4 inch (d2), and 3 inches (l1), it's designed for precision. Its chisel tooth pattern minimises tool chatter and granulates chips, ideal for removing soft materials like aluminium and copper.

Resources

File icon
Sutton-Tools-Carbide-Burs-Catalogue

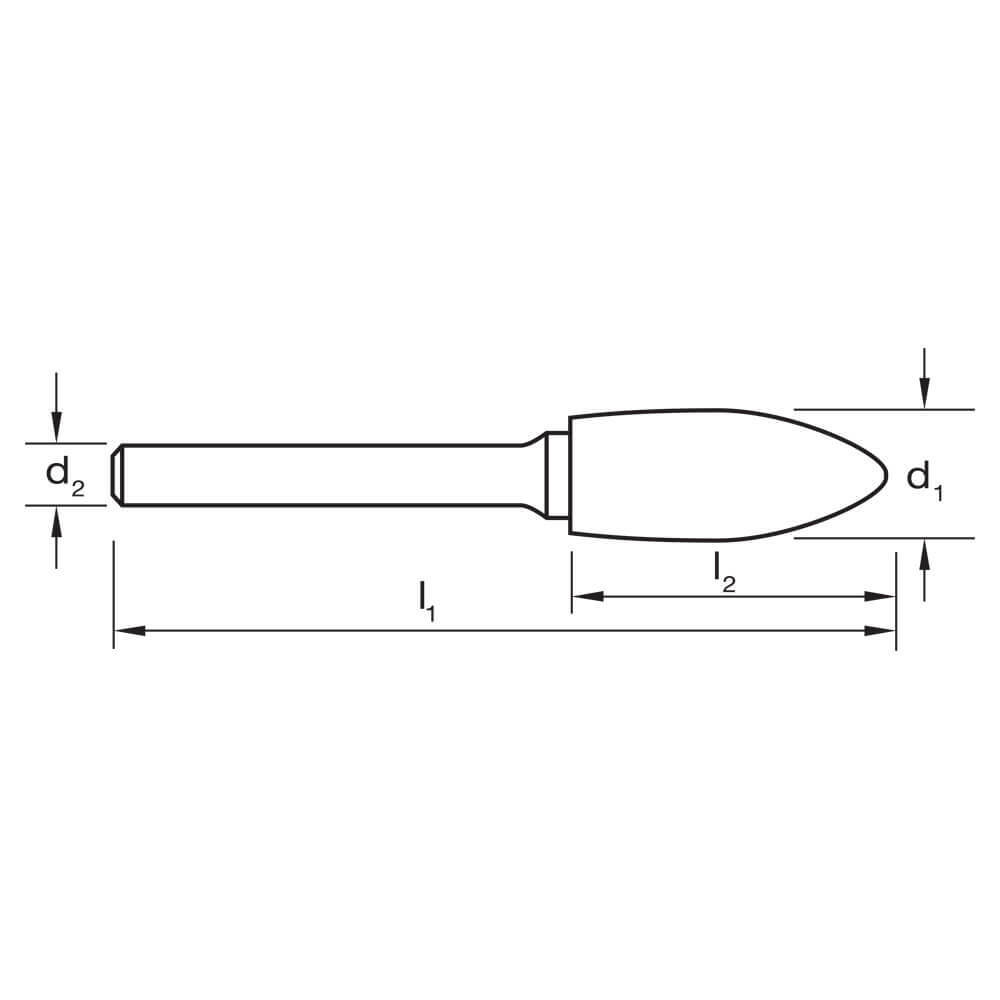

Dimensions

  • d1 (in): 1/4
  • d2 (in): 1/4
  • l1 (in): 2
  • l2 (in): 5/8
  • Shank (in): 1/4

Features

  • Flame Shape Carbide Burs
  • The chisel tooth pattern not only minimizes tool chatter but reduces the chip to a granular shape, in most materials
  • Al Cut for rapid material removal of soft materials such as: Aluminium, Brass, Copper, Plastics that would normally load other cuts

Specifications

  • Material: VHM
  • Finish: Bright
  • Type: Flame Shape
  • Application: Steel

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
  • Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
  • Stainless Steel - Austenitic: Age Hardened
  • Cast Iron, Grey (GG) - Ferritic / Pearlitic
  • Cast Iron, Nodular (GGG) – Ferritic
  • Cast Iron, Malleable – Ferritic
  • Cast Iron, Malleable - Pearlitic

Dimensions

  • d1 (in): 1/4
  • d2 (in): 1/4
  • l1 (in): 2
  • l2 (in): 5/8
  • Shank (in): 1/4

Specifications

  • Material: VHM
  • Finish: Bright
  • Type: Flame Shape
  • Application: Steel

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
  • Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
  • Stainless Steel - Austenitic: Age Hardened
  • Cast Iron, Grey (GG) - Ferritic / Pearlitic
  • Cast Iron, Nodular (GGG) – Ferritic
  • Cast Iron, Malleable – Ferritic
  • Cast Iron, Malleable - Pearlitic

Features

  • Flame Shape Carbide Burs
  • The chisel tooth pattern not only minimizes tool chatter but reduces the chip to a granular shape, in most materials
  • Al Cut for rapid material removal of soft materials such as: Aluminium, Brass, Copper, Plastics that would normally load other cuts
