Sutton B210 Carbide Burr - Cylindrical Square End - Double Cut - Long

Sutton B210 Carbide Burr - Cylindrical Square End - Double Cut - Long

SKU: A0002523

Type: Burr

$86.86
$86.86
Inc. GST
Buy It Now

Available

The Sutton B210 Carbide Burr is a long, cylindrical square end tool with a double cut design. Its dimensions are d1: 1/2in, d2: 1/4in, l1: 7in, l2: 1in, and a shank of 1/4in. The unique chisel tooth pattern reduces tool chatter and chip size, ideal for removing soft materials.

Resources

File icon
Sutton-Tools-Carbide-Burs-Catalogue

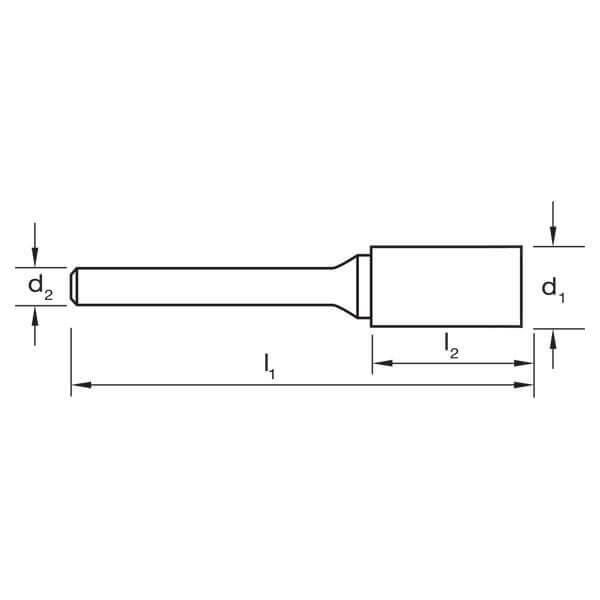

Dimensions

  • d1 (in): 3/8
  • d2 (in): 1/4
  • l1 (in): 6-3/4
  • l2 (in): 3/4
  • Shank (in): 1/4

Features

  • Cylindrical Carbide Burs Long Reach

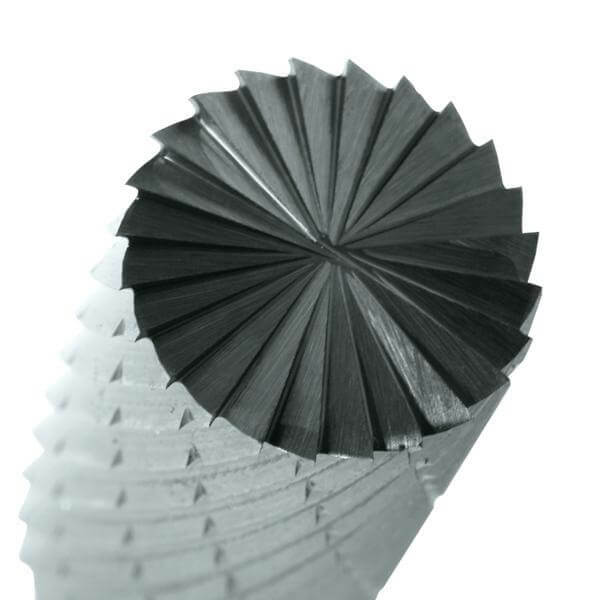

  • The chisel tooth pattern not only minimizes tool chatter but reduces the chip to a granular shape, in most materials
  • Al Cut for rapid material removal of soft materials such as: Aluminium, Brass, Copper, Plastics that would normally load other cuts

Specifications

  • Material: VHM
  • Finish: Bright
  • Type: Cylindrical Square End
  • Application: Steel

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
  • Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
  • Stainless Steel - Austenitic: Age Hardened
  • Cast Iron, Grey (GG) - Ferritic / Pearlitic
  • Cast Iron, Nodular (GGG) – Ferritic
  • Cast Iron, Malleable – Ferritic
  • Cast Iron, Malleable - Pearlitic

Dimensions

  • d1 (in): 3/8
  • d2 (in): 1/4
  • l1 (in): 6-3/4
  • l2 (in): 3/4
  • Shank (in): 1/4

Specifications

  • Material: VHM
  • Finish: Bright
  • Type: Cylindrical Square End
  • Application: Steel

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
  • Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
  • Stainless Steel - Austenitic: Age Hardened
  • Cast Iron, Grey (GG) - Ferritic / Pearlitic
  • Cast Iron, Nodular (GGG) – Ferritic
  • Cast Iron, Malleable – Ferritic
  • Cast Iron, Malleable - Pearlitic

Features

  • Cylindrical Carbide Burs Long Reach
  • The chisel tooth pattern not only minimizes tool chatter but reduces the chip to a granular shape, in most materials
  • Al Cut for rapid material removal of soft materials such as: Aluminium, Brass, Copper, Plastics that would normally load other cuts
