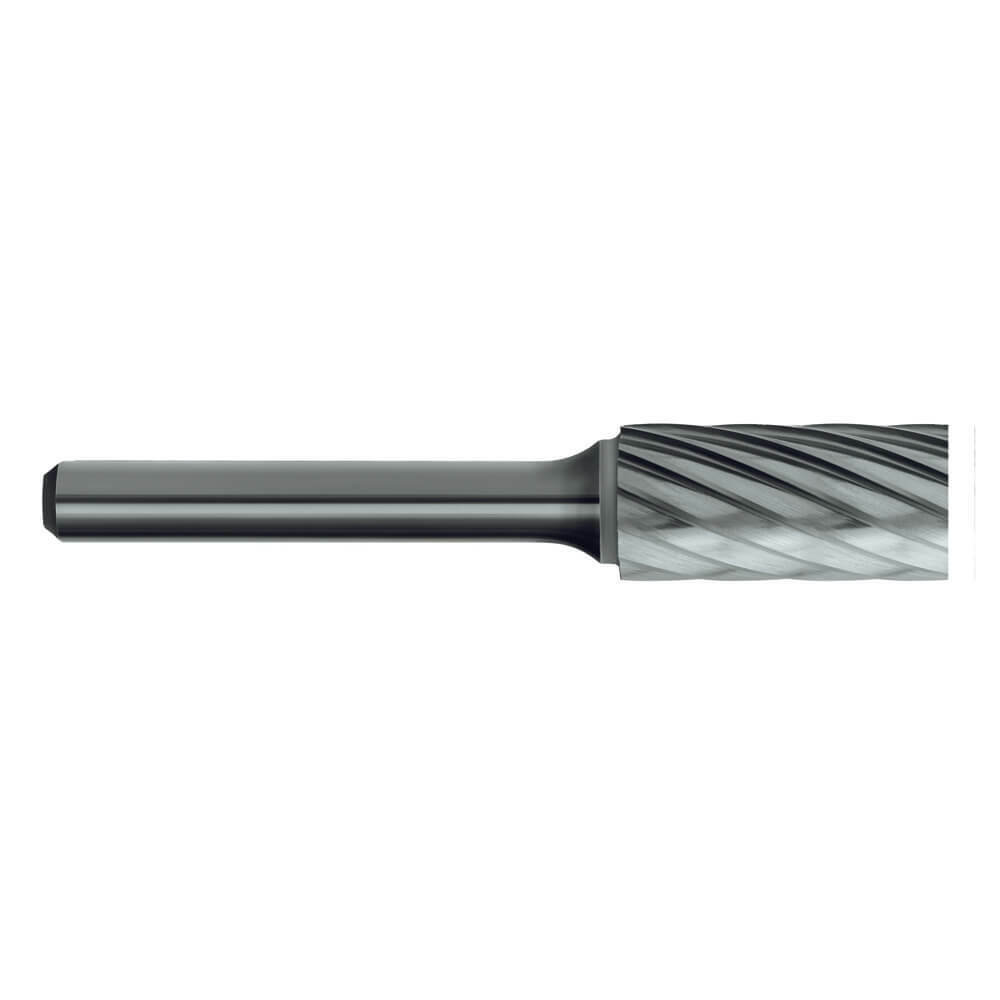

Sutton B215 Cylindrical Square End Carbide Burr, 1/4" x 3/4", 1/4" Shank, Aluminium
Available
The Sutton B215 is an aluminium cut, cylindrical square end carbide burr with a solid carbide (VHM) head and bright finish, supplied with a 1/4" (6.35 mm) shank.
The Al Cut pattern is for rapid stock removal of soft materials such as aluminium, brass, copper and plastics that would normally load other cuts.
This listing covers 5 sizes, with head diameters from 1/4" (6.35 mm) to 3/4" (19.1 mm) and overall lengths of 2" (50.8 mm) to 2-3/4" (69.9 mm). Dimensions are as published in Sutton's catalogue.
Fit it to a die grinder or other high-speed rotary tool with a collet that matches the shank, and keep to the recommended speeds for the head diameter shown below.
Where this burr is used
- Grinding and deburring flat surfaces, square corners and edges with the side and the flat end of the burr
- Squaring up and cleaning out slots, pockets and keyways
- Removing weld bead, flash and casting fins
- Aluminium, brass, copper and plastics: soft materials that tend to load a standard cut
- Weld cleanup, deburring and shaping in fabrication, toolroom, foundry, engineering workshop and maintenance (MRO) work
Design features

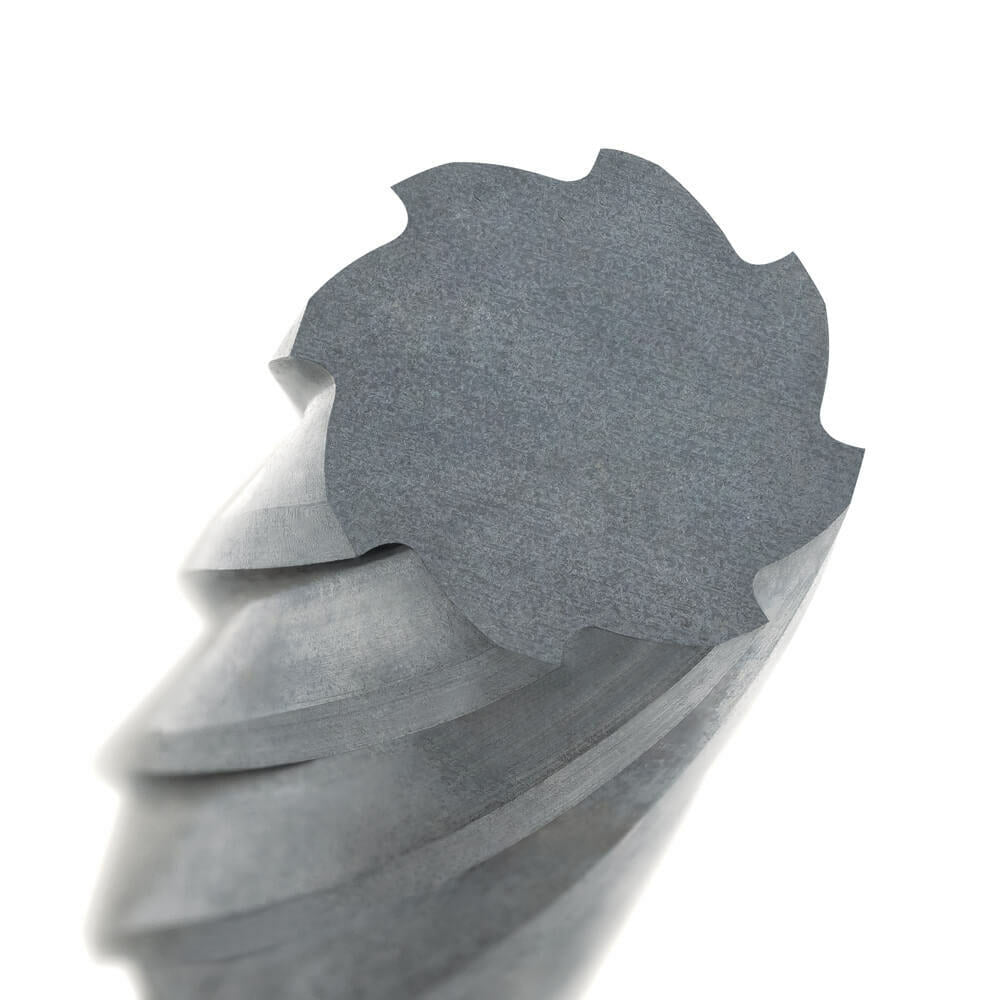

- Al Cut pattern: for rapid stock removal of soft materials such as aluminium, brass, copper and plastics that would normally load other cuts
- Solid carbide (VHM): VHM construction is designed to give optimum strength, hardness and wear resistance
- Bright finish
- Head profile: cylinder with a flat (square) end
- Shank: 1/4" (6.35 mm), for standard 1/4" die grinder collets
Sizes

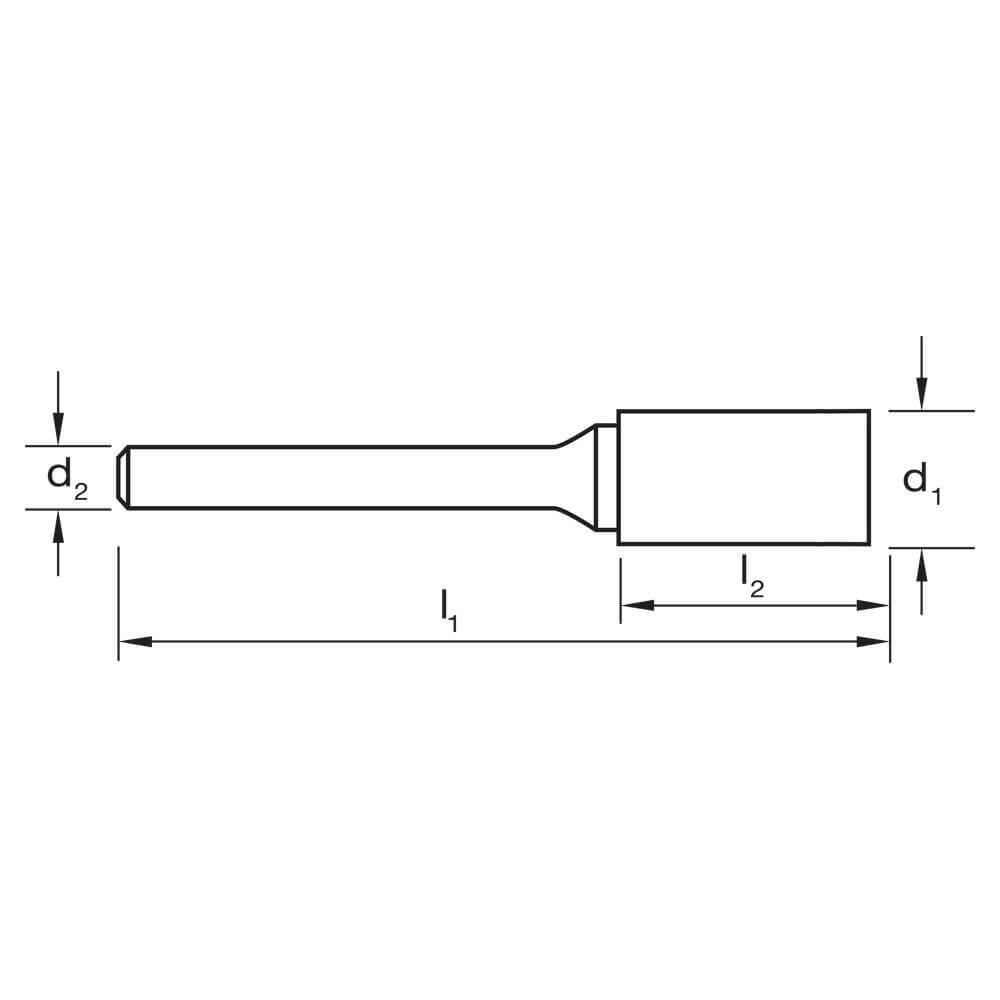

Dimensions: d1 is the head diameter, l2 the cut length, l1 the overall length and d2 the shank diameter. Imperial sizes are shown with the metric equivalent in brackets.
| Item no. | Head diameter d1 | Cut length l2 | Overall length l1 | Shank d2 |
|---|---|---|---|---|
| B215SA1AC | 1/4" (6.35 mm) | 3/4" (19.1 mm) | 2" (50.8 mm) | 1/4" (6.35 mm) |
| B215SA3AC | 3/8" (9.5 mm) | 3/4" (19.1 mm) | 2-1/2" (63.5 mm) | 1/4" (6.35 mm) |
| B215SA5AC | 1/2" (12.7 mm) | 1" (25.4 mm) | 2-3/4" (69.9 mm) | 1/4" (6.35 mm) |
| B215SA6AC | 5/8" (15.9 mm) | 1" (25.4 mm) | 2-3/4" (69.9 mm) | 1/4" (6.35 mm) |
| B215SA7AC | 3/4" (19.1 mm) | 1" (25.4 mm) | 2-3/4" (69.9 mm) | 1/4" (6.35 mm) |
Recommended cutting speeds
Recommended speeds by head diameter, from Sutton's cutting speed guide for standard length burrs.
| Head diameter | Aluminium cut (RPM) | Maximum (RPM) |
|---|---|---|
| 1/4" (6.35 mm) | 30,000 | 33,000 |
| 3/8" (9.5 mm) | 20,000 | 27,000 |
| 1/2" (12.7 mm) | 15,000 | 24,000 |
| 5/8" (15.9 mm) | 12,000 | 23,000 |
| 3/4" (19.1 mm) | 10,000 | 21,000 |
Key specifications
| Specification | Detail |
|---|---|
| Brand | Sutton |
| Catalogue code | B215 |
| Head shape | Cylindrical Square End |
| Cut | Aluminium Cut |
| Material | Solid carbide (VHM) |
| Finish | Bright |
| Shank | 1/4" (6.35 mm) |
| Head diameter | 1/4" to 3/4" |
| Overall length | 2" to 2-3/4" |
| System of measurement | Imperial |
| Sizes in this listing | 5 |
Related Sutton carbide burrs
Compare other shapes and lengths in this range: B200 cylindrical square end carbide burrs (double cut), B210 cylindrical square end carbide burrs (double cut, long reach), B315 cylindrical square end carbide burrs (metric, 6 mm shank, aluminium cut), B300 cylindrical square end carbide burrs (metric, 6 mm shank, double cut), B900SCB100 carbide burr set (5 piece), B900SCB300 carbide burr set (5 piece).
