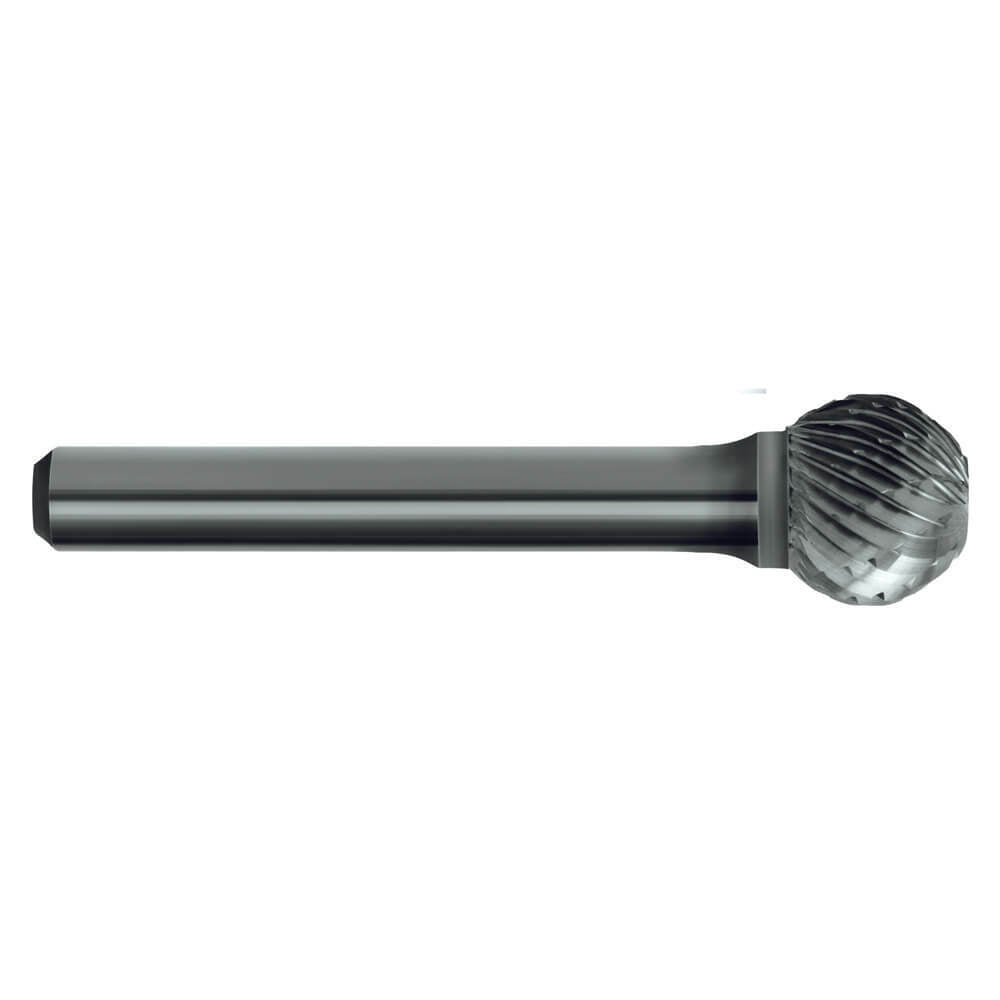

Sutton B302SD140 4.8 x 4.8 x 6mm Shank Carbide Burr Ball Shape
Sutton B302SD300 9.6 x 9.5 x 6mm Shank Carbide Burr Ball Shape
Sutton B302SD500 12.7 x 12.7 x 6mm Shank Carbide Burr Ball Shape
Sutton B302 Carbide Burr - Ball Shape - Double Cut1
Sutton B302 Carbide Burr - Ball Shape - Double Cut2
Sutton B302SD100 6.4 x 50.8 x 6mm Shank Carbide Burr Ball Shape
Sutton B302SD140 4.8 x 4.8 x 6mm Shank Carbide Burr Ball Shape
Sutton B302SD300 9.6 x 9.5 x 6mm Shank Carbide Burr Ball Shape
Sutton B302SD500 12.7 x 12.7 x 6mm Shank Carbide Burr Ball Shape

Sutton B302 Carbide Burr - Ball Shape - Double Cut

Sutton B302 Carbide Burr - Ball Shape - Double Cut

SKU: A0002569

Type: Burr

$43.64
$43.64
Inc. GST
Buy It Now

Available

The Sutton B302 Carbide Burr features a ball shape and double cut design. With dimensions of d1: 12.7mm, d2: 6mm, l1: 55.6mm, l2: 12.7mm, and a 6mm shank, it excels at removing soft materials.

Resources

File icon
Sutton-Tools-Carbide-Burs-Catalogue

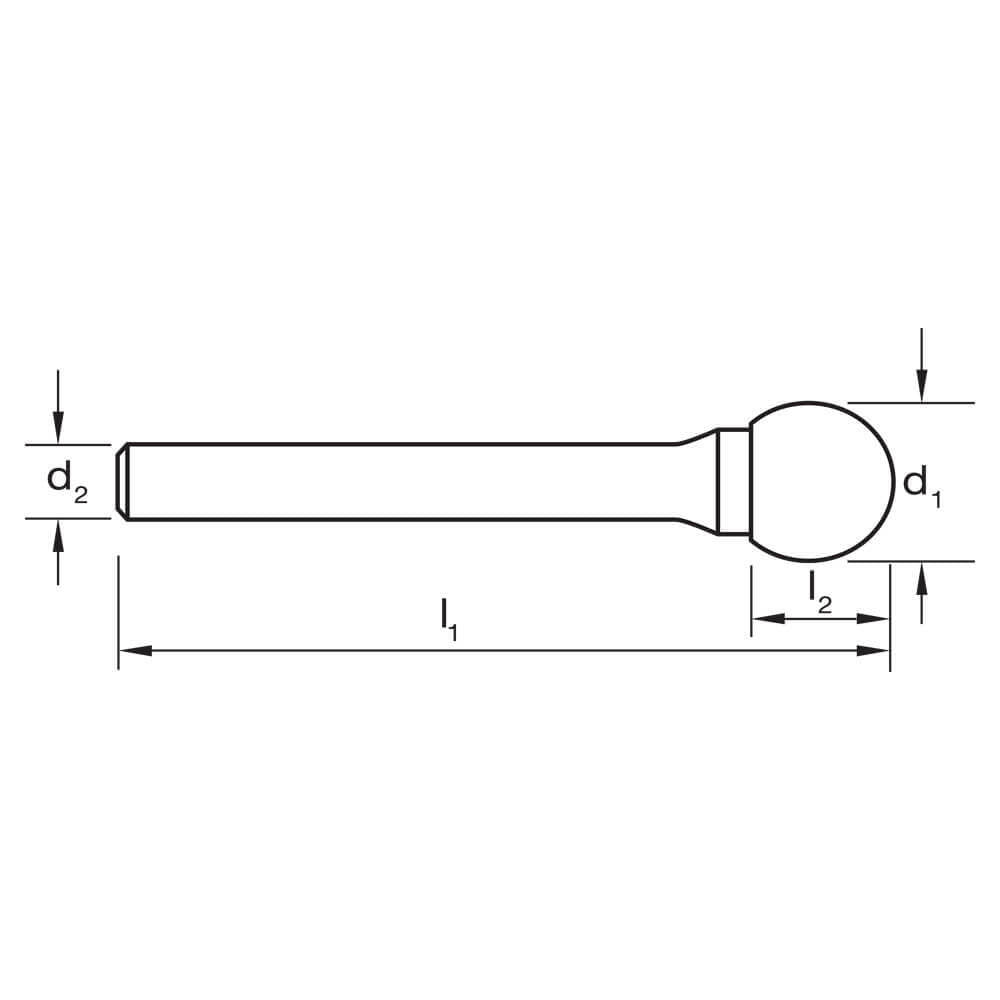

Dimensions

  • d1 (mm): 6.4
  • d2 (mm): 6
  • l1 (mm): 50.8
  • l2 (mm): 50.8
  • Shank (mm): 6

Features

  • Ball Shape Carbide Burs
  • The chisel tooth pattern not only minimizes tool chatter but reduces the chip to a granular shape, in most materials
  • Al Cut for rapid material removal of soft materials such as: Aluminium, Brass, Copper, Plastics that would normally load other cuts

Specifications

  • Material: VHM
  • Finish: Bright
  • Type: Ball Shape
  • Application: Steel

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
  • Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
  • Stainless Steel - Austenitic: Age Hardened
  • Cast Iron, Grey (GG) - Ferritic / Pearlitic
  • Cast Iron, Nodular (GGG) – Ferritic
  • Cast Iron, Malleable – Ferritic
  • Cast Iron, Malleable - Pearlitic

Dimensions

  • d1 (mm): 6.4
  • d2 (mm): 6
  • l1 (mm): 50.8
  • l2 (mm): 50.8
  • Shank (mm): 6

Specifications

  • Material: VHM
  • Finish: Bright
  • Type: Ball Shape
  • Application: Steel

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
  • Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
  • Stainless Steel - Austenitic: Age Hardened
  • Cast Iron, Grey (GG) - Ferritic / Pearlitic
  • Cast Iron, Nodular (GGG) – Ferritic
  • Cast Iron, Malleable – Ferritic
  • Cast Iron, Malleable - Pearlitic

Features

  • Ball Shape Carbide Burs
  • The chisel tooth pattern not only minimizes tool chatter but reduces the chip to a granular shape, in most materials
  • Al Cut for rapid material removal of soft materials such as: Aluminium, Brass, Copper, Plastics that would normally load other cuts
