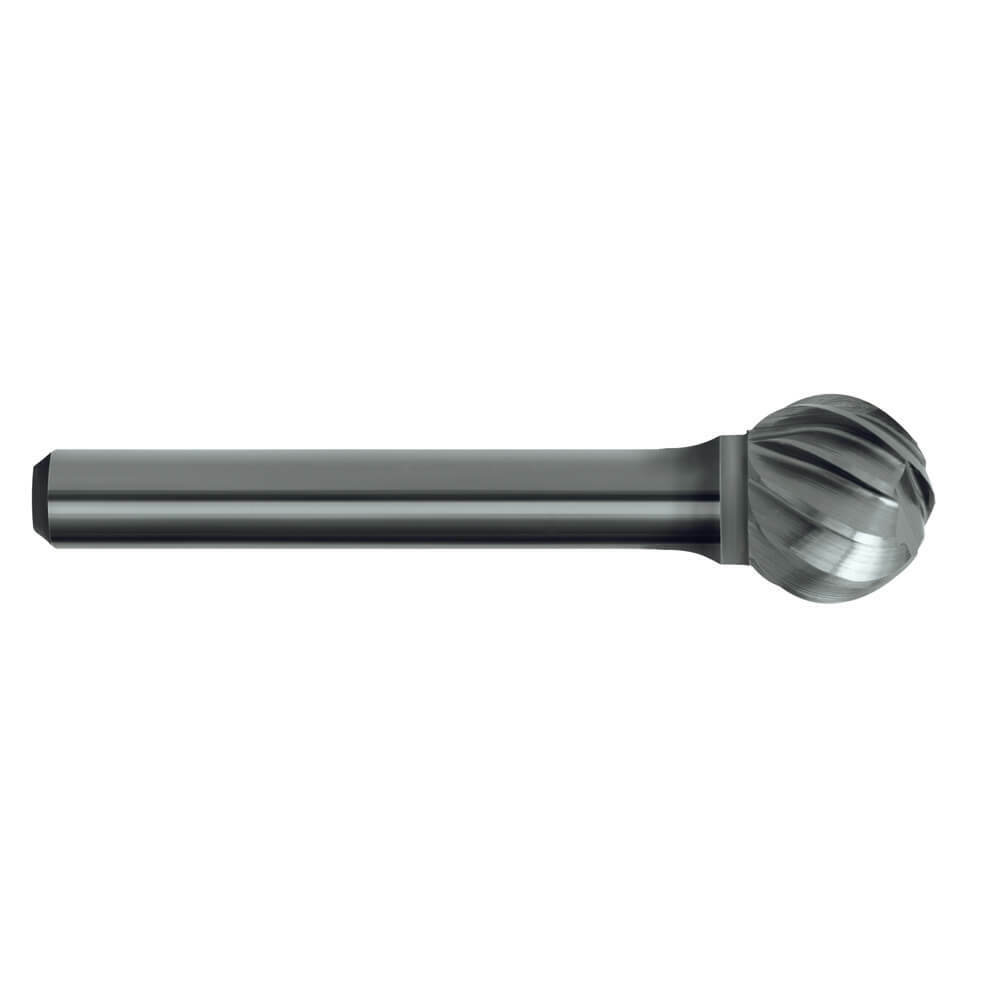

Sutton B317SD3AC Ball Shape Carbide Burr, 9.5mm, 6mm Shank, Aluminium Cut

The Sutton B317SD3AC is an aluminium cut, ball shape carbide burr with a solid carbide (VHM) head and bright finish, supplied with a 6 mm shank. Head diameter is 9.5mm, overall length is 52mm and the shank diameter is 6mm.

The Al Cut pattern is for rapid stock removal of soft materials such as aluminium, brass, copper and plastics that would normally load other cuts.

Fit it to a die grinder or other high-speed rotary tool with a collet that matches the shank, and keep to the recommended speeds for the head diameter shown below.

Where this burr is used

• Cavity and pocket work, and shaping concave surfaces
• Blending out weld pits, scratches and undercuts
• Die, mould and casting finishing, and porting
• Aluminium, brass, copper and plastics: soft materials that tend to load a standard cut
• Weld cleanup, deburring and shaping in fabrication, toolroom, foundry, engineering workshop and maintenance (MRO) work

Design features

• Al Cut pattern: for rapid stock removal of soft materials such as aluminium, brass, copper and plastics that would normally load other cuts
• Solid carbide (VHM): VHM construction is designed to give optimum strength, hardness and wear resistance
• Bright finish
• Head profile: sphere
• Shank: 6 mm, fits 6 mm die grinder collets

Dimensions

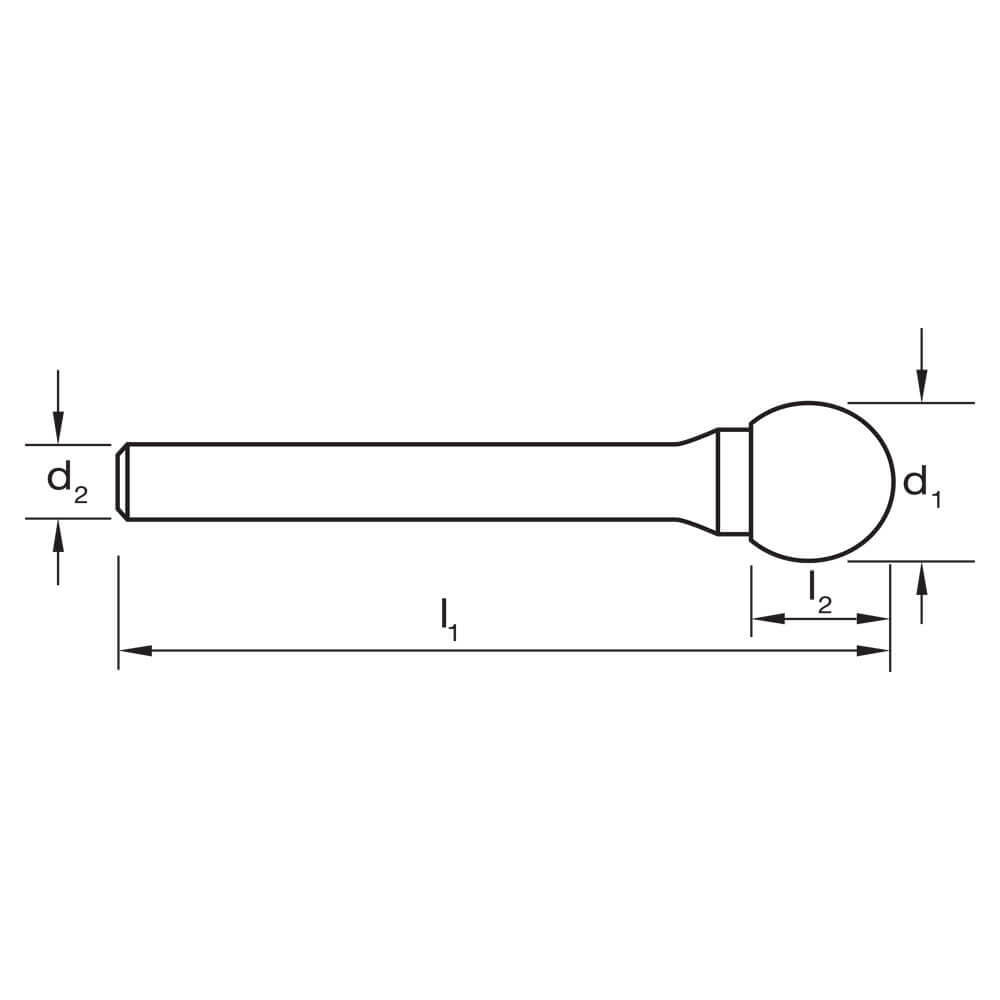

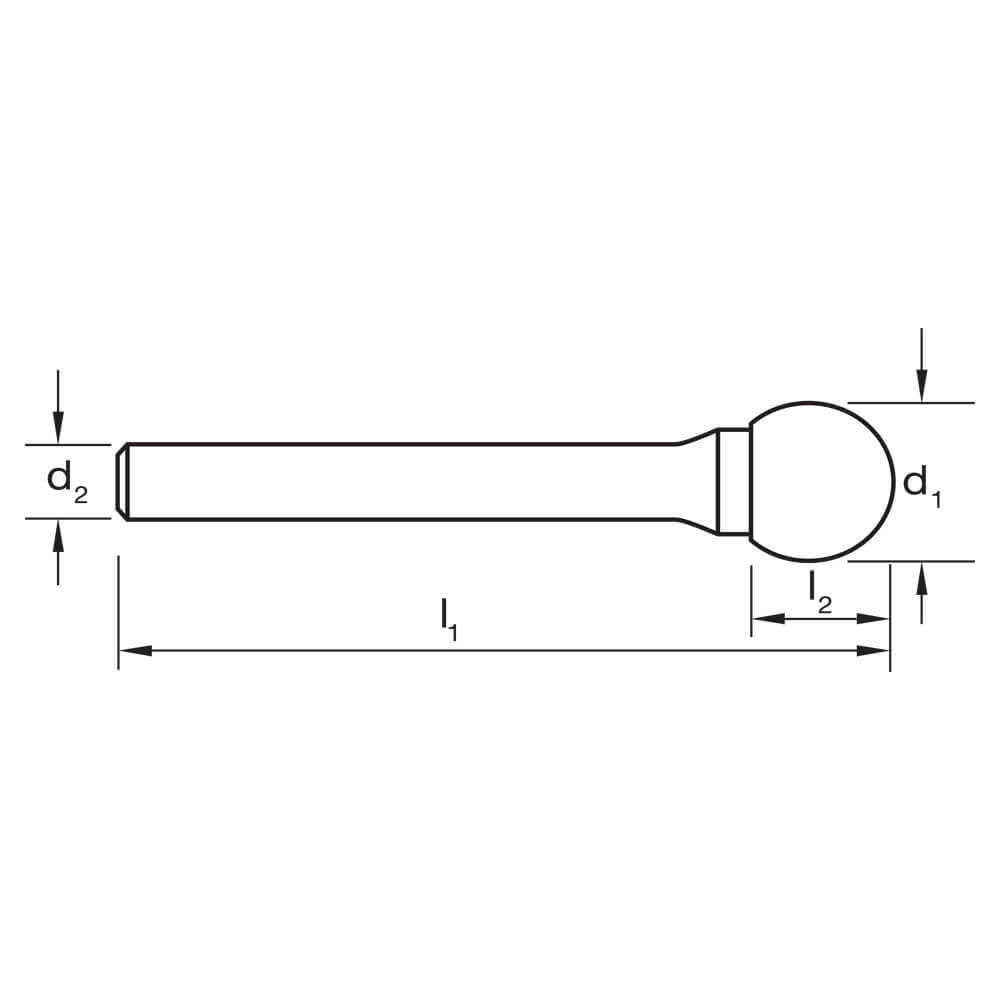

Dimensions: d1 is the head diameter, l1 the overall length and d2 the shank diameter.

Recommended cutting speeds

Recommended speeds by head diameter, from Sutton's cutting speed guide for standard length burrs.

Key specifications
