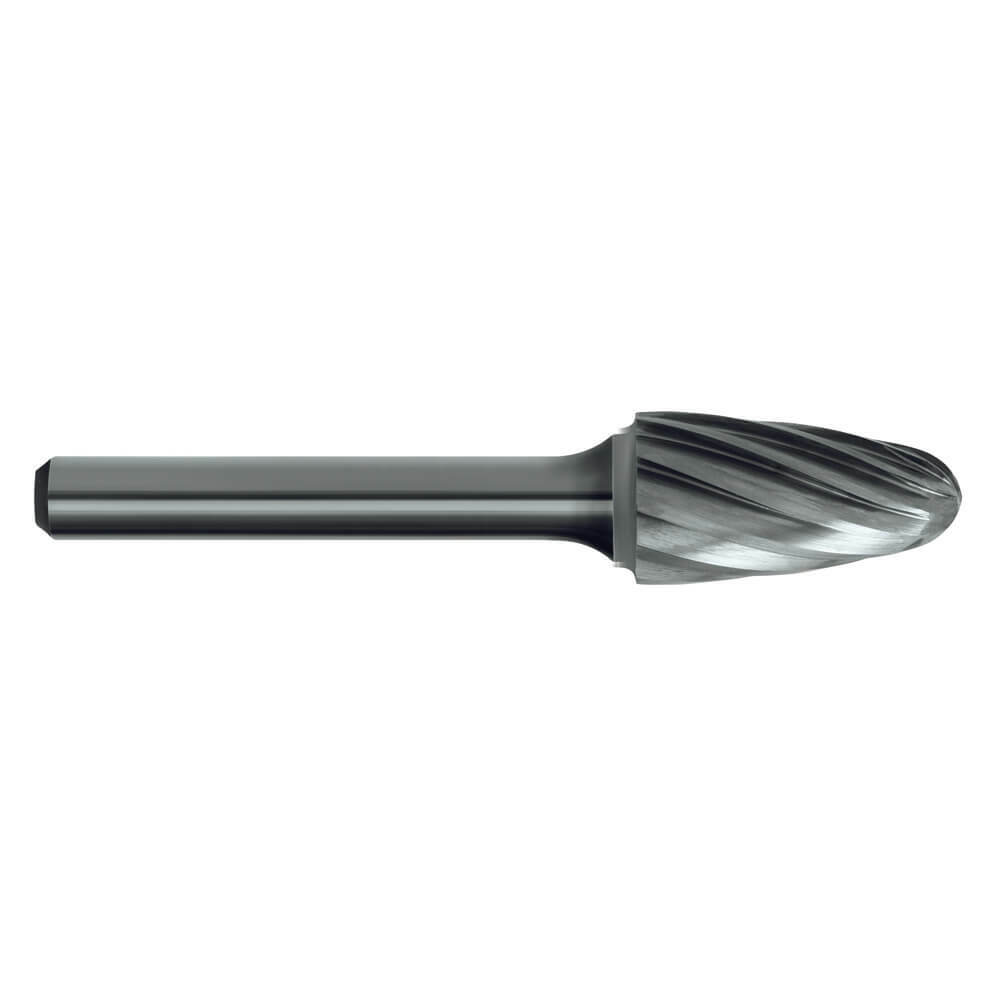

Sutton B319SF3AC 9.6 x 19 x 6mm Shank Carbide Burr Tree Shape Radius End
Sutton B319SF5AC 12.7 x 25.4 x 6mm Shank Carbide Burr Tree Shape Radius End
Sutton B319SF6AC 15.9 x 25.4 x 6mm Shank Carbide Burr Tree Shape Radius End
Sutton B319 Carbide Burr - Tree Shape Radius End - Aluminium Cut1
Sutton B319 Carbide Burr - Tree Shape Radius End - Aluminium Cut2
Sutton B319SF3AC 9.6 x 19 x 6mm Shank Carbide Burr Tree Shape Radius End
Sutton B319SF5AC 12.7 x 25.4 x 6mm Shank Carbide Burr Tree Shape Radius End
Sutton B319SF6AC 15.9 x 25.4 x 6mm Shank Carbide Burr Tree Shape Radius End

Sutton B319 Carbide Burr - Tree Shape Radius End - Aluminium Cut

Sutton B319 Carbide Burr - Tree Shape Radius End - Aluminium Cut

SKU: A0002602

Type: Burr

$87.62
$87.62
Inc. GST
Buy It Now

Available

The Sutton B319 Carbide Burr - Tree Shape Radius End - Aluminium Cut by Sutton Tools is designed for machining applications. It features a diameter of 12.7 mm and is suitable for rapid material removal of soft materials such as aluminium, brass, and copper.

Resources

File icon
Sutton-Tools-Carbide-Burs-Catalogue

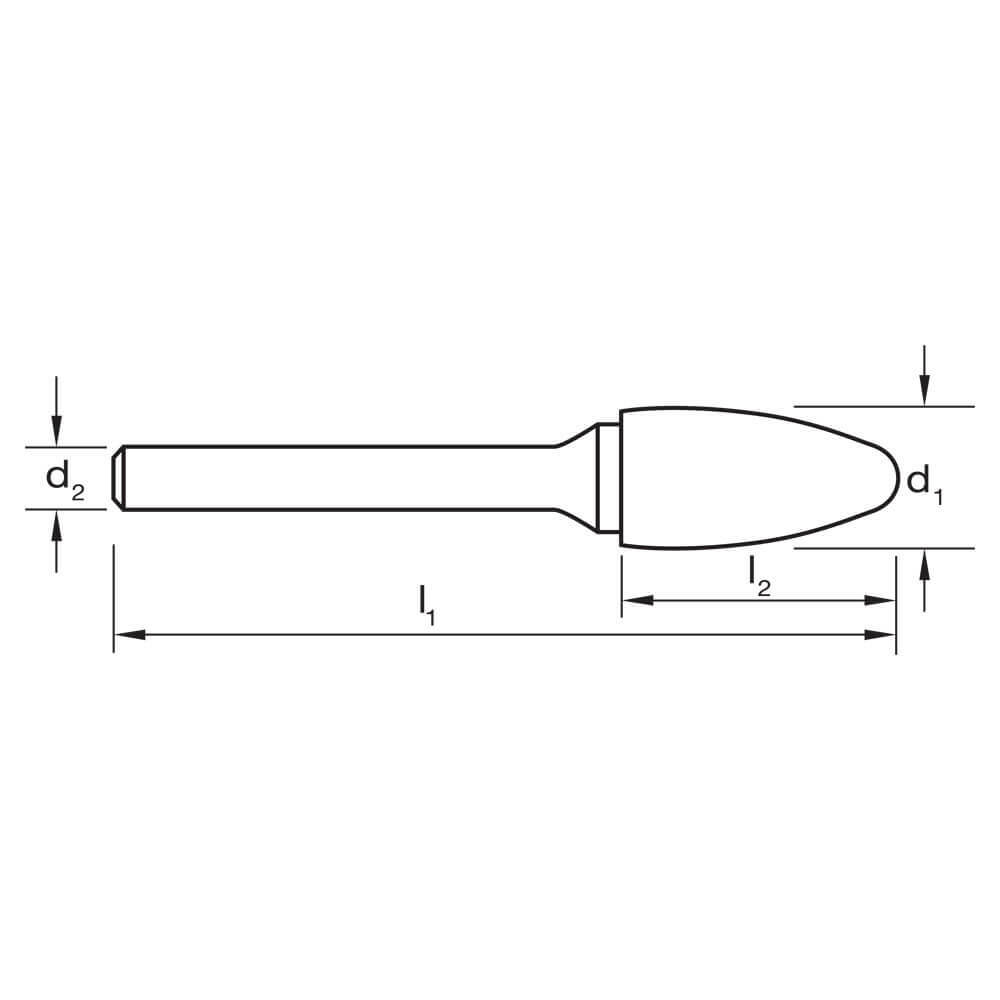

Dimensions

  • d1 (mm): 9.6
  • d2 (mm): 6
  • l1 (mm): 63.5
  • l2 (mm): 19
  • Shank (mm): 6

Features

  • Tree Shape Carbide Burs
  • The chisel tooth pattern not only minimizes tool chatter but reduces the chip to a granular shape, in most materials
  • Al Cut for rapid material removal of soft materials such as: Aluminium, Brass, Copper, Plastics that would normally load other cuts

Specifications

  • Material: VHM
  • Finish: Bright
  • Type: Tree Shape Radius End
  • Application: Aluminium

Applications

  • Aluminum & Magnesium, wrought alloy - Non Heat Treatable
  • Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
  • Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable
  • Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable: Age Hardened
  • Aluminum & Magnesium, cast alloy >12% Si - Non Heat Treatable
  • Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)

Dimensions

  • d1 (mm): 9.6
  • d2 (mm): 6
  • l1 (mm): 63.5
  • l2 (mm): 19
  • Shank (mm): 6

Specifications

  • Material: VHM
  • Finish: Bright
  • Type: Tree Shape Radius End
  • Application: Aluminium

Applications

  • Aluminum & Magnesium, wrought alloy - Non Heat Treatable
  • Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
  • Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable
  • Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable: Age Hardened
  • Aluminum & Magnesium, cast alloy >12% Si - Non Heat Treatable
  • Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)

Features

  • Tree Shape Carbide Burs
  • The chisel tooth pattern not only minimizes tool chatter but reduces the chip to a granular shape, in most materials
  • Al Cut for rapid material removal of soft materials such as: Aluminium, Brass, Copper, Plastics that would normally load other cuts
