Sutton E344 Metric 4 Flute Endmill - Carbide VHM AlCrN - Extra Long1

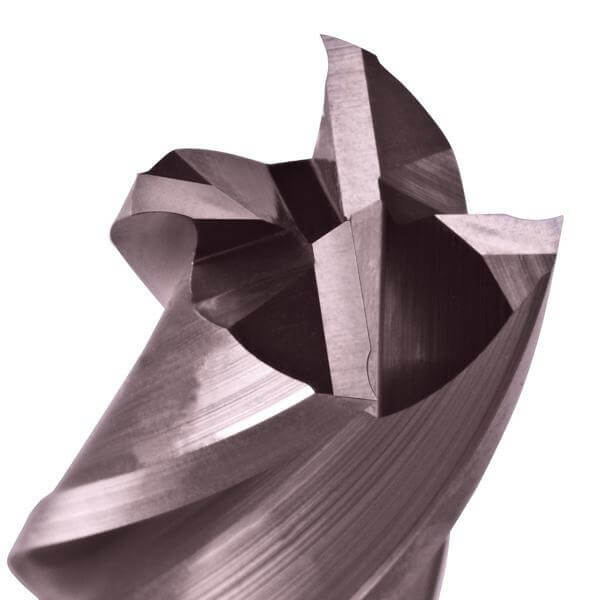

Sutton E344 Metric 4 Flute Endmill - Carbide VHM AlCrN - Extra Long2

Sutton E344 Metric 4 Flute Endmill - Carbide VHM AlCrN - Extra Long3

Sutton E3440300 3 x 3mm 4 Flute Endmill - Carbide VHM AlCrN - Extra Long

Sutton E3440400 4 x 34mm 4 Flute Endmill - Carbide VHM AlCrN - Extra Long

Sutton E3440500 5 x 5mm 4 Flute Endmill - Carbide VHM AlCrN - Extra Long

Sutton E3440600 6 x 6mm 4 Flute Endmill - Carbide VHM AlCrN - Extra Long

Sutton E3440800 8 x 8mm 4 Flute Endmill - Carbide VHM AlCrN - Extra Long

Sutton E3441000 10 x 10mm 4 Flute Endmill Carbide VHM AlCrNExtra Long

Sutton E3441200 12 x 12mm 4 Flute Endmill Carbide VHM AlCrNExtra Long

Sutton E3441400 14 x 14mm 4 Flute Endmill Carbide VHM AlCrNExtra Long

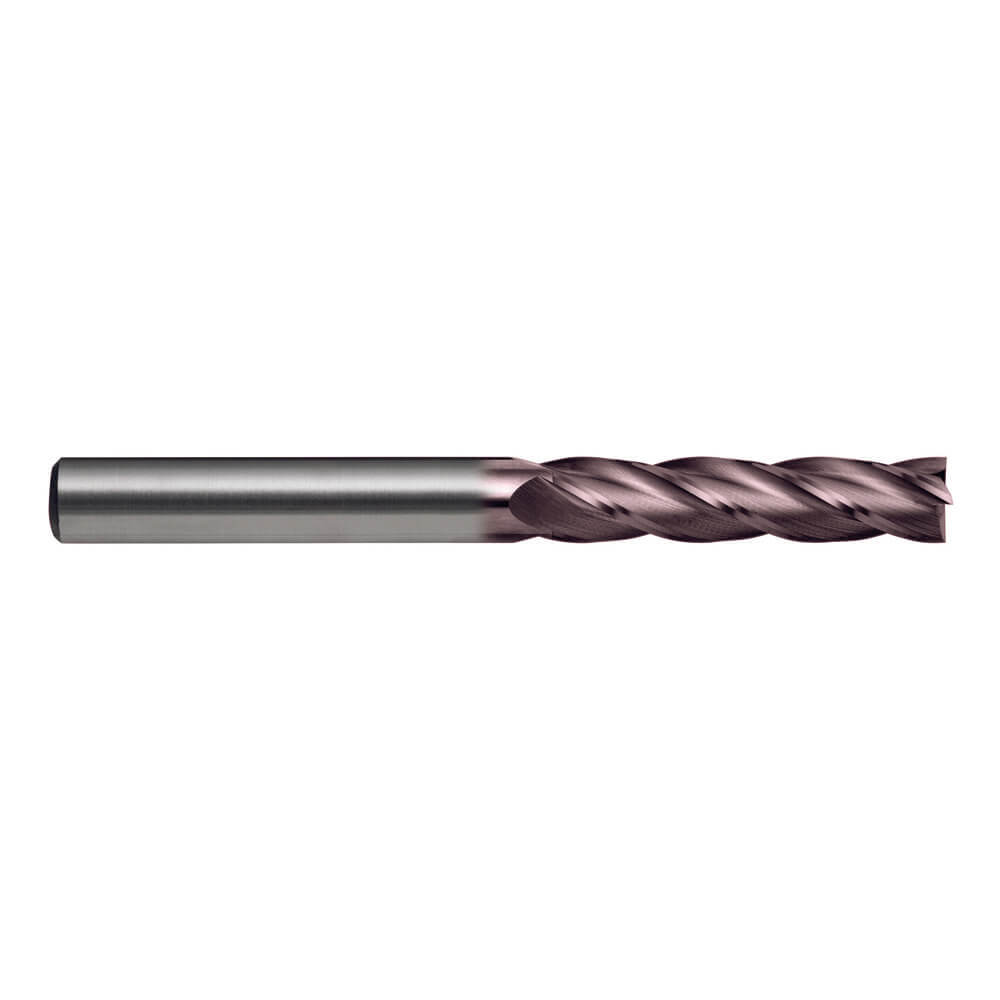

Sutton E3441600 16 x 16mm 4 Flute Endmill Carbide VHM AlCrNExtra Long

Sutton E3441800 18 x 18mm 4 Flute Endmill Carbide VHM AlCrNExtra Long

Sutton E3442000 20 x 20mm 4 Flute Endmill Carbide VHM AlCrNExtra Long

Description +

Description

For long-reach finish milling applications

Specifications +

Specifications

Designation: N
Material: VHM
Finish: TiAIN
Shank Form: HA
Helix Angle: R30
Point Tolerance: h10
Shank Tolerance: h6
Point Form: Square End
Type: N (finishing)
Rake Angle: 12
Standard: Sutton

Application +

Applications

Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 300 HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements- 300 HB
Optimal for Steel - High alloy, cast & tool- 200 HB
Optimal for Steel - Corrosion resistant & cast - Ferritic / Martensitic ‚Äì 200 HB
Optimal for Stainless Steel ‚Äì Austenitic- 180 HB
Optimal for Cast Iron, Grey (GG) - Ferritic / Pearlitic ‚Äì 180 HB
Optimal for Cast Iron, Grey (GG) - Pearlitic- 260 HB
Optimal for Cast Iron, Nodular (GGG) - Ferritic- 160 HB
Optimal for Cast Iron, Nodular (GGG) - Pearlitic- 250 HB
Optimal for Cast Iron, Malleable - Ferritic- 130 HB
Optimal for Cast Iron, Malleable ‚Äì Pearlitic ‚Äì 230 HB
Optimal for Aluminum & Magnesium, wrought alloy - Non Heat Treatable ‚Äì 60 HB
Optimal for Aluminum & Magnesium, wrought alloy - Heat Treatable ‚Äì 100 HB
Optimal for Cast Iron ‚Äì Chilled ‚Äì 400 HB

Features & Benefits +

Features

4 Flute Endmill R30 N
Suitable for materials up to 1300 N/mm2
TiAlN for longer tool life

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sutton E344 Metric 4 Flute Endmill - Carbide VHM AlCrN - Extra Long

SKU: A0009302

$74.39

Inc. GST

Buy It Now

Available

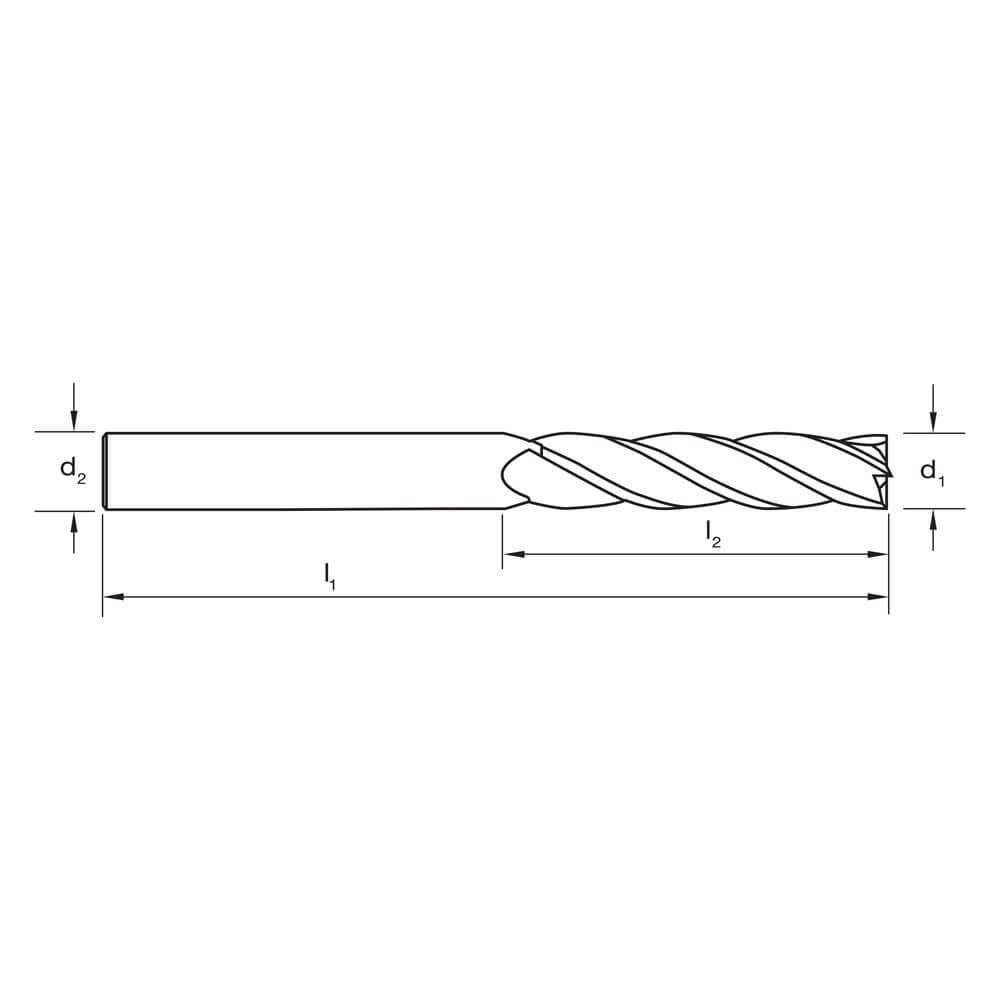

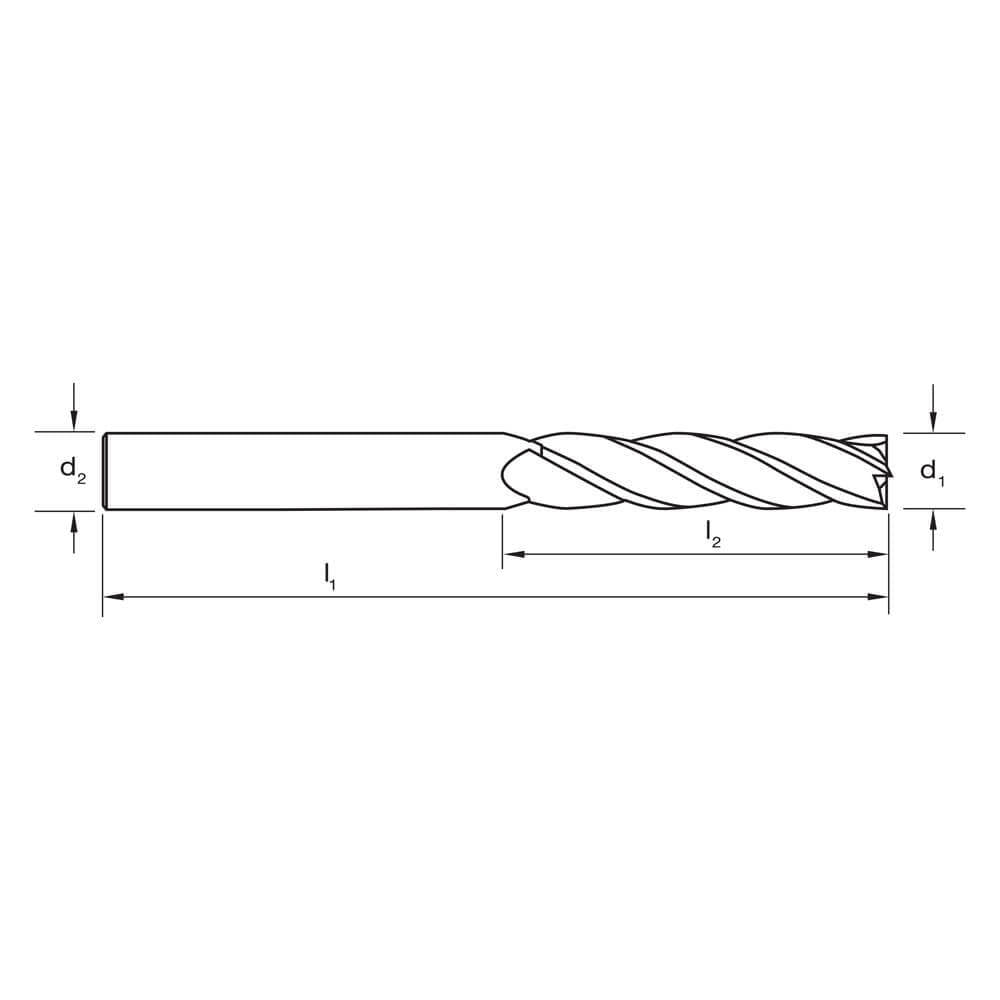

The Sutton E344 Metric 4 Flute Endmill is designed for long-reach finish milling applications. With dimensions of d1 and d2 at 10mm, l1 at 100mm, and l2 at 44mm, it's suitable for materials up to 1300 N/mm2. The TiAlN finish ensures a longer tool life.
