Description
Description
Description
- For long-reach finish milling applications
Specifications
Specifications

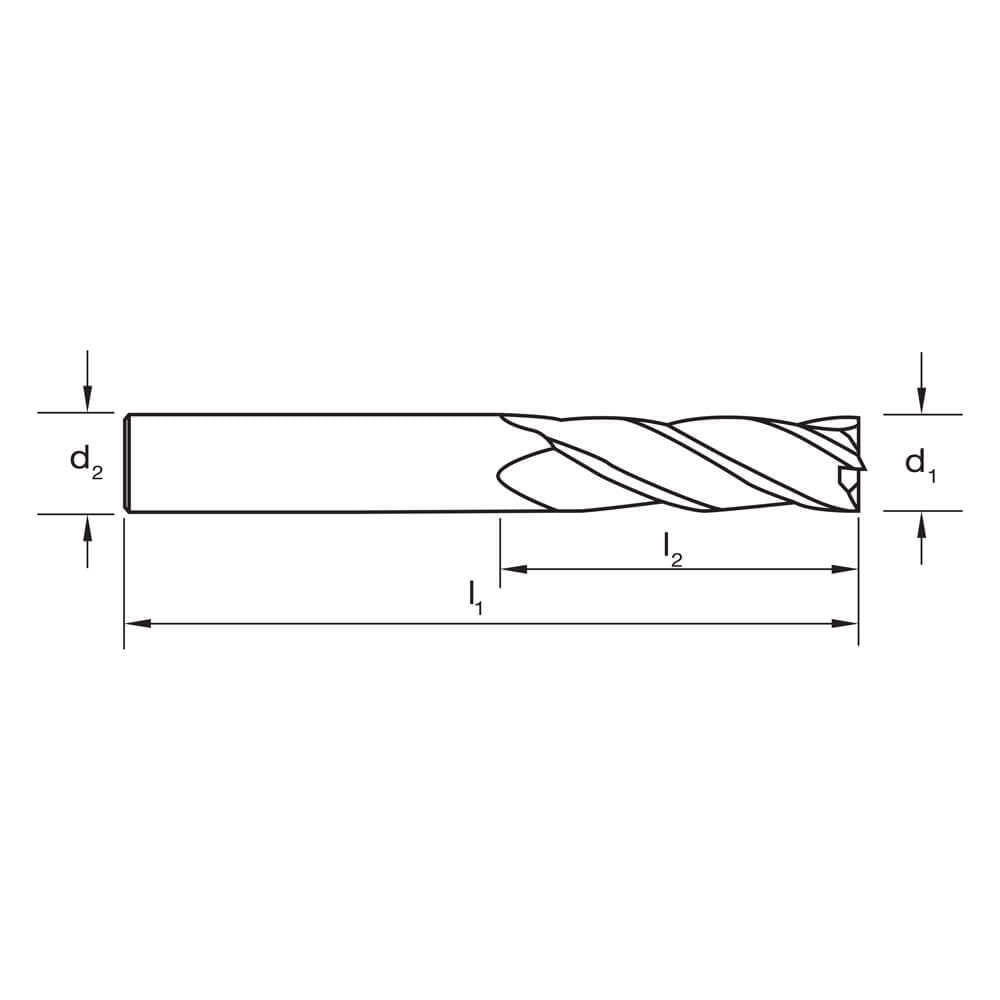

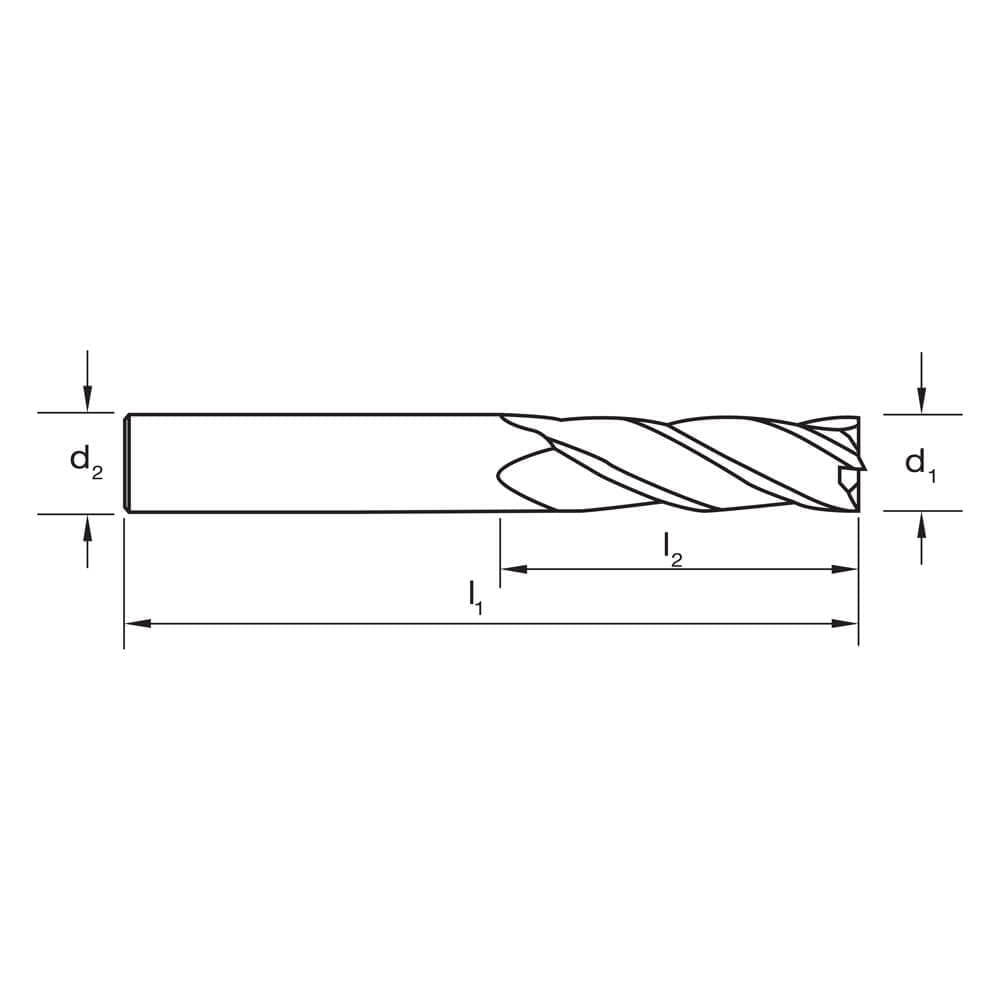

Dimensions
- d1 (in): 1/8
- d2 (in): 1/8
- l1 (in): 2-1/4
- l2 (in): 3/4
- Quantity: 1
Specifications
- Designation: N
- Material: VHM
- Finish: Bright
- Shank Form: HA
- Helix Angle: R30
- Point Tolerance: h10
- Shank Tolerance: h6
- Point Form: Square End
- Type: N (finishing)
- Rake Angle: 12
- Standard: Sutton
Applications
Applications
Applications
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
- Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
- Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
- Optimal for Steel - High alloy, cast & tool- 200 HB
- Optimal for Stainless Steel – Austenitic- 180 HB
- Optimal for Cast Iron, Grey (GG) - Ferritic / Pearlitic- 180 HB
- Optimal for Cast Iron, Nodular (GGG) - Ferritic- 160 HB
- Optimal for Aluminum & Magnesium, wrought alloy - Non Heat Treatable – 60 HB
- Optimal for Aluminum & Magnesium, wrought alloy - Heat Treatable – 100 HB
Features & Benefits
Features & Benefits
Features
- 4 Flute Endmill R30 N
- Suitable for materials up to 1300 N/mm2
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

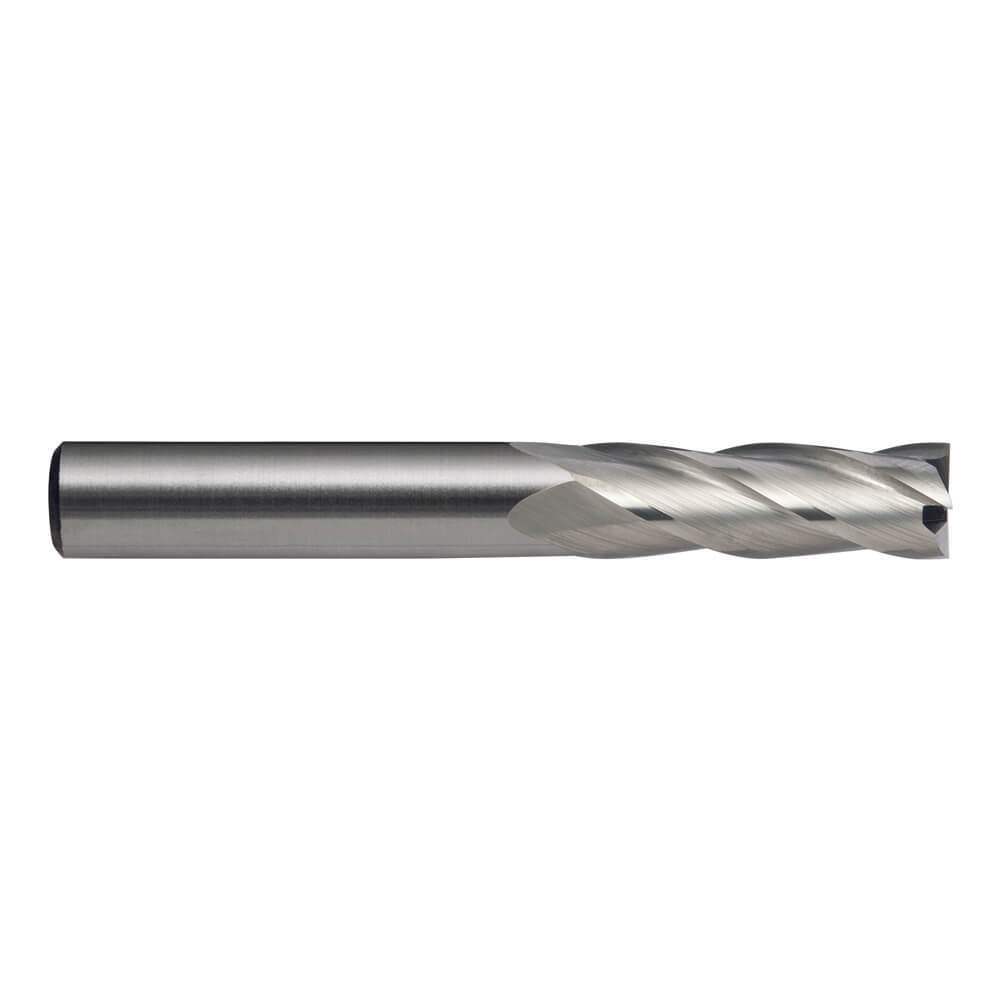

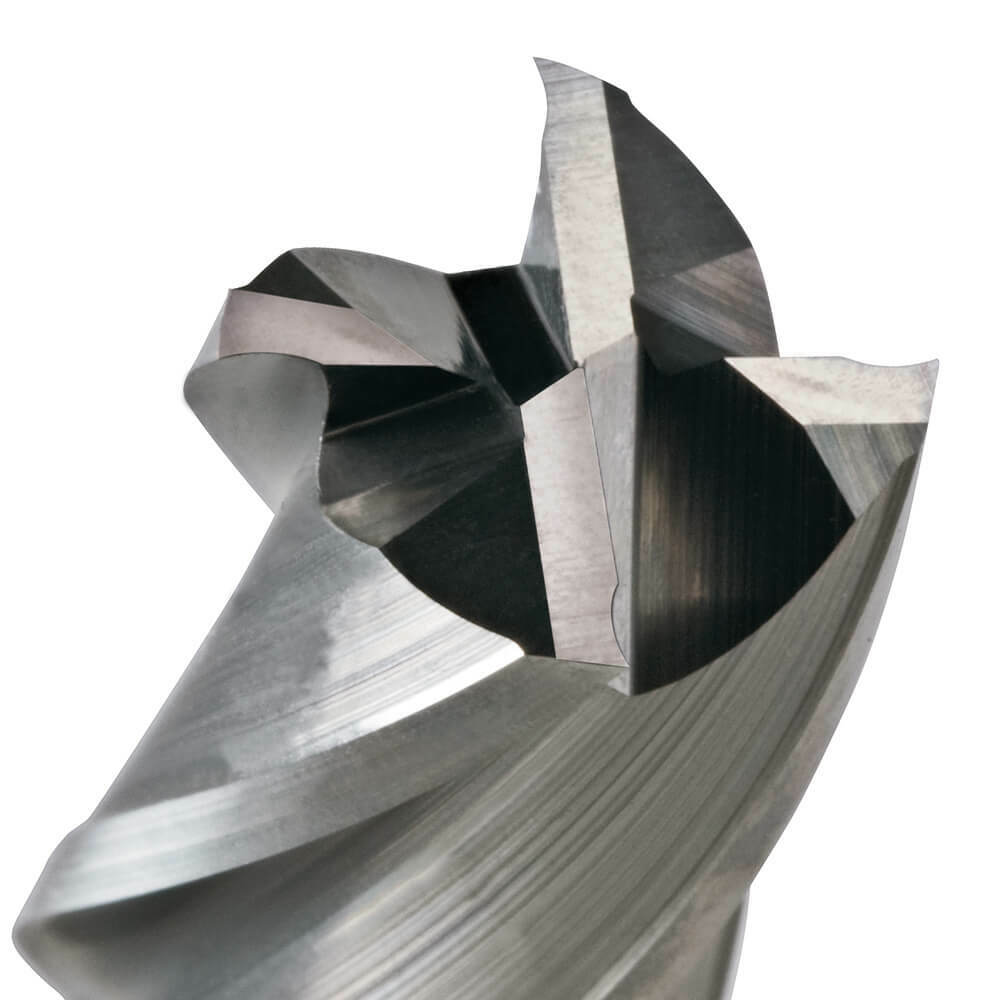

Sutton E337 Imperial 4 Flute Endmill - Solid Carbide VHM - Long
Sutton E337 Imperial 4 Flute Endmill - Solid Carbide VHM - Long
SKU: A0009256
- Wide Range
- Reliable Services
- Proven Trust
Available
The Sutton E337 Imperial 4 Flute Endmill, made from solid carbide VHM, is designed for long-reach finish milling. With dimensions of 1/2 inch for d1 and d2, and 4 and 2 inches for l1 and l2, it can handle materials up to 1300 N/mm2. It's suitable for use with steel, stainless steel, cast iron and aluminium.
