Sutton E444 3mm Endmill 1 Flute - Carbide VHM - Short
Available

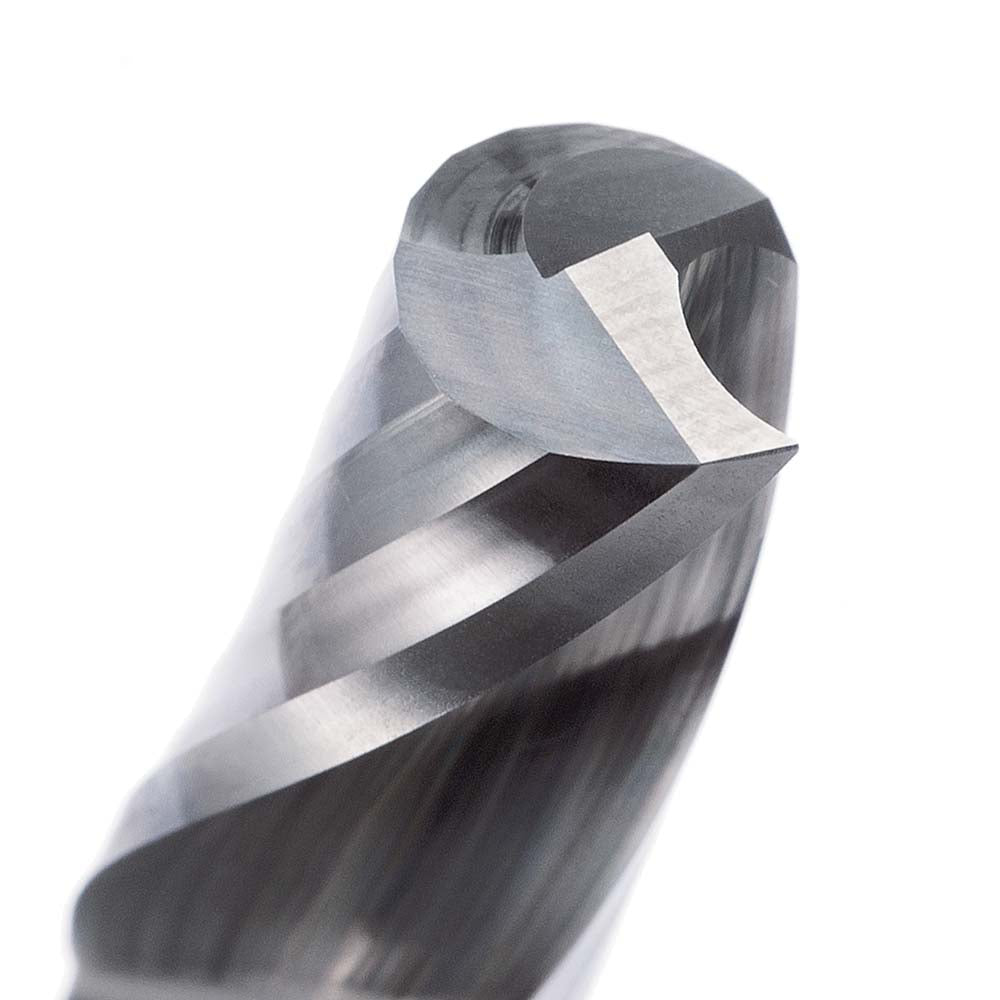

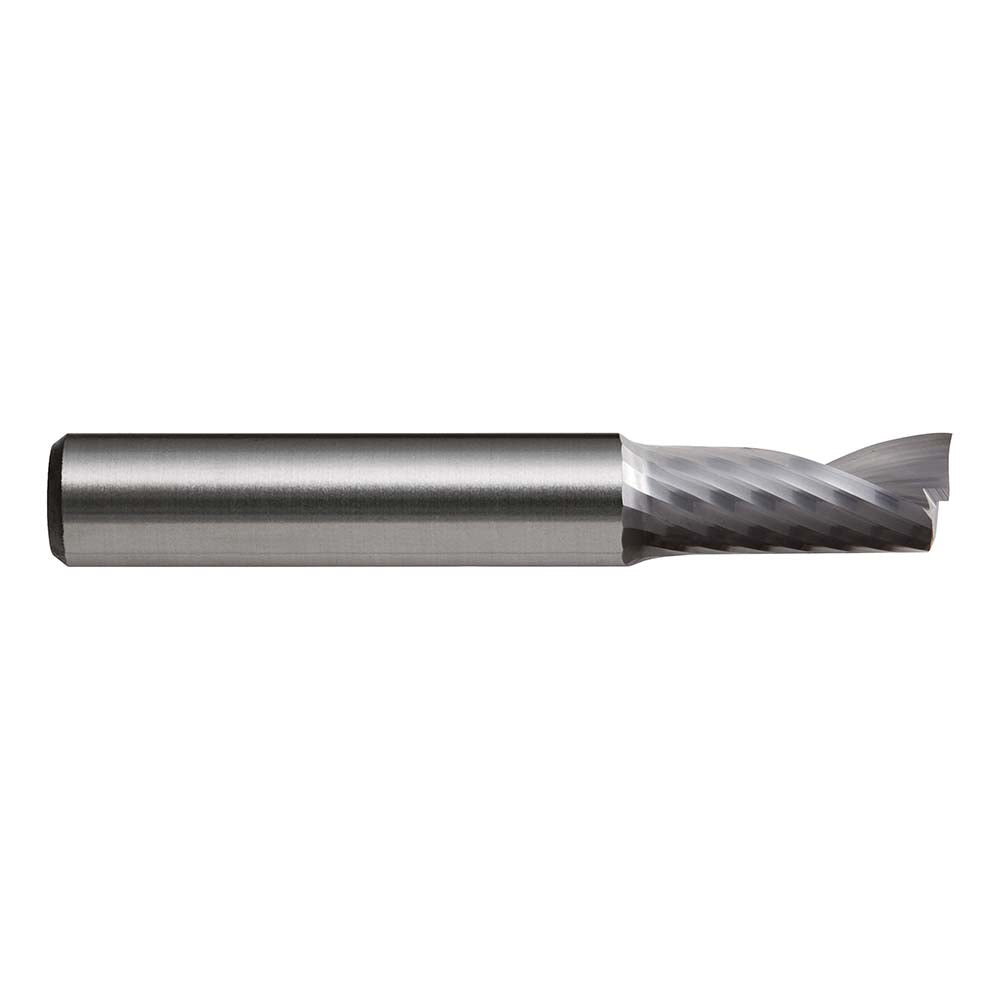

The Sutton E444 is a 1 flute endmill made from solid carbide (VHM), with a bright finish. It is in the short length series. This listing covers 7 metric sizes from 3 mm to 12 mm.
The cutting edge has a 30° helix and the designation is Al. The shank is a plain cylindrical shank (DIN 6535 form HA), with h6 shank tolerance and h10 cutting diameter tolerance.
Where this product is used
- Soft and non-ferrous materials, where the Al geometry is optimised for them.
Design features
- Solid carbide (VHM) construction.
- Bright finish.
- 1 flutes, 30° helix.
- Plain cylindrical shank (DIN 6535 form HA).
- Tolerances: cutting diameter (d1) h10, shank h6.
Sizes
Diameters and lengths are in millimetres. Item numbers are the Sutton catalogue numbers.

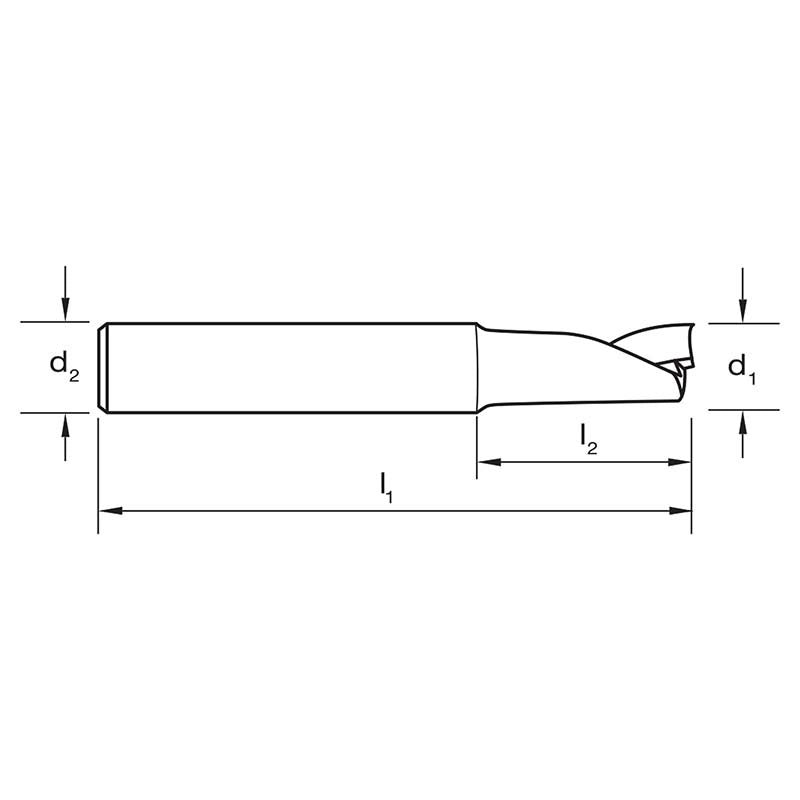

| Item no. | d1 (mm) | l1 overall (mm) | l2 flute (mm) | d2 shank (mm) | Flutes |
|---|---|---|---|---|---|
| E444 0300 | 3 | 50 | 8 | 6 | 1 |
| E444 0400 | 4 | 54 | 11 | 6 | 1 |
| E444 0500 | 5 | 54 | 13 | 6 | 1 |
| E444 0600 | 6 | 54 | 13 | 6 | 1 |
| E444 0800 | 8 | 58 | 19 | 8 | 1 |
| E444 1000 | 10 | 66 | 22 | 10 | 1 |
| E444 1200 | 12 | 73 | 26 | 12 | 1 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | E444 |
| Type | Endmill, 1 flute, short length |
| Material | solid carbide (VHM) |
| Finish | Bright |
| Helix / geometry | R30 |
| Designation | Al |
| Shank form | plain cylindrical shank (DIN 6535 form HA) |
| Cutting diameter tolerance (d1) | h10 |
| Shank tolerance | h6 |
| Sizes in this listing | 7 sizes, 3 to 12 mm |
Related products
Related Sutton carbide endmills: E344 metric endmill (extra long), TiAlN, plain shank, E309 metric endmill (extra long), plain shank, E337 5/8 in endmill (long), plain shank, E336 imperial endmill (regular), TiAlN, plain shank, E333 imperial endmill (regular), plain shank.
