Sutton E553 3mm Ball Nose Slot Drill 2 Flute - Carbide VHM - TiAlN - Regular
Available

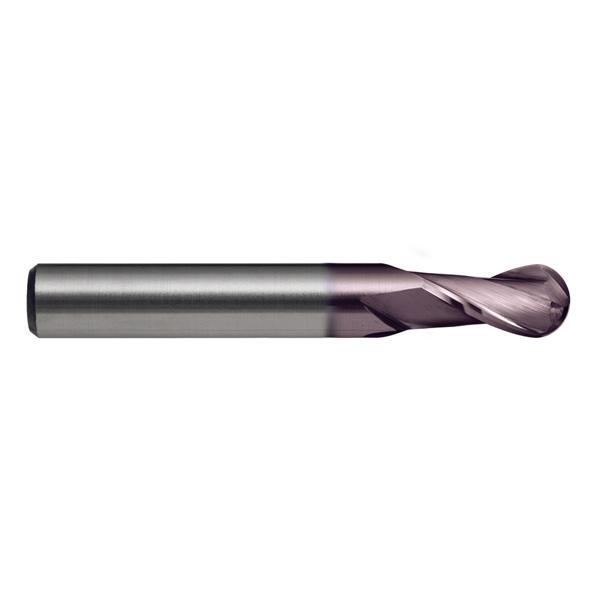

The Sutton E553 is a 2 flute ball nose slot drill made from solid carbide (VHM), with a TiAlN coating. It is in the regular length series. This listing covers 7 metric sizes from 2 mm to 12 mm.
The cutting edge has a 30° helix and the designation is N. The shank is a plain cylindrical shank (DIN 6535 form HA), with h6 shank tolerance and h10 cutting diameter tolerance. The cutting length is to DIN 6527 L.
Where this product is used
- Profile and contour milling.
- Materials up to 1600 N/mm2.
Design features
- Solid carbide (VHM) construction.
- TiAlN coating for longer tool life.
- 2 flutes, 30° helix.
- Plain cylindrical shank (DIN 6535 form HA).
- Tolerances: cutting diameter (d1) h10, shank h6.
Sizes
Diameters and lengths are in millimetres. Item numbers are the Sutton catalogue numbers.
| Item no. | d1 (mm) | l1 overall (mm) | l2 flute (mm) | d2 shank (mm) | Flutes |
|---|---|---|---|---|---|
| E553 0200 | 2 | 57 | 6 | 6 | 2 |
| E553 0300 | 3 | 57 | 7 | 6 | 2 |
| E553 0500 | 5 | 57 | 10 | 6 | 2 |
| E553 0600 | 6 | 57 | 10 | 6 | 2 |
| E553 0800 | 8 | 63 | 16 | 8 | 2 |
| E553 1000 | 10 | 72 | 19 | 10 | 2 |
| E553 1200 | 12 | 83 | 22 | 12 | 2 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | E553 |
| Type | Ball Nose Slot Drill, 2 flute, regular length |
| Material | solid carbide (VHM) |
| Finish | TiAlN |
| Helix / geometry | R30 |
| Designation | N |
| Shank form | plain cylindrical shank (DIN 6535 form HA) |
| Cutting diameter tolerance (d1) | h10 |
| Shank tolerance | h6 |
| Cutting length | DIN 6527 L |
| Sizes in this listing | 7 sizes, 2 to 12 mm |
Related products
Related Sutton carbide slot drills: E602 metric ball nose slot drill (regular), plain shank, E605 metric ball nose slot drill (regular), TiAlN, plain shank, E555 metric ball nose slot drill (long reach), AlCrN, plain shank, E556 metric ball nose slot drill (long reach), AlCrN, Weldon flat shank, E600 metric slot drill (regular), plain shank.
