Sutton E600 Metric 2 Flute Slot Drill - Carbide VHM - Regular1

Sutton E600 Metric 2 Flute Slot Drill - Carbide VHM - Regular2

Sutton E600 Metric 2 Flute Slot Drill - Carbide VHM - Regular3

Sutton E6000100 1mm x 3mm 2 Flute Slot Drill - Carbide VHM - Regular

Sutton E6000150 1.5mm x 3mm 2 Flute Slot Drill - Carbide VHM - Regular

Sutton E6000200 2mm x 3mm 2 Flute Slot Drill - Carbide VHM - Regular

Sutton E6000250 2.5mm x 3mm 2 Flute Slot Drill - Carbide VHM - Regular

Sutton E6000300 3mm x 3mm 2 Flute Slot Drill - Carbide VHM - Regular

Sutton E6000350 3.5mm x 4mm 2 Flute Slot Drill - Carbide VHM - Regular

Sutton E6000400 4mm x 4mm 2 Flute Slot Drill - Carbide VHM - Regular

Sutton E6000450 4.5mm x 6mm 2 Flute Slot Drill - Carbide VHM - Regular

Sutton E6000500 5mm x 6mm 2 Flute Slot Drill - Carbide VHM - Regular

Sutton E6000600 6mm x 6mm 2 Flute Slot Drill - Carbide VHM - Regular

Sutton E6000700 7mm x 8mm 2 Flute Slot Drill - Carbide VHM - Regular

Sutton E6000800 8mm x 8mm 2 Flute Slot Drill - Carbide VHM - Regular

Sutton E6000900 9mm x 10mm 2 Flute Slot Drill - Carbide VHM - Regular

Sutton E6001000 10mm x 10mm 2 Flute Slot Drill - Carbide VHM - Regular

Sutton E6001100 11mm x 12mm 2 Flute Slot Drill - Carbide VHM - Regular

Sutton E6001200 12mm x 12mm 2 Flute Slot Drill - Carbide VHM - Regular

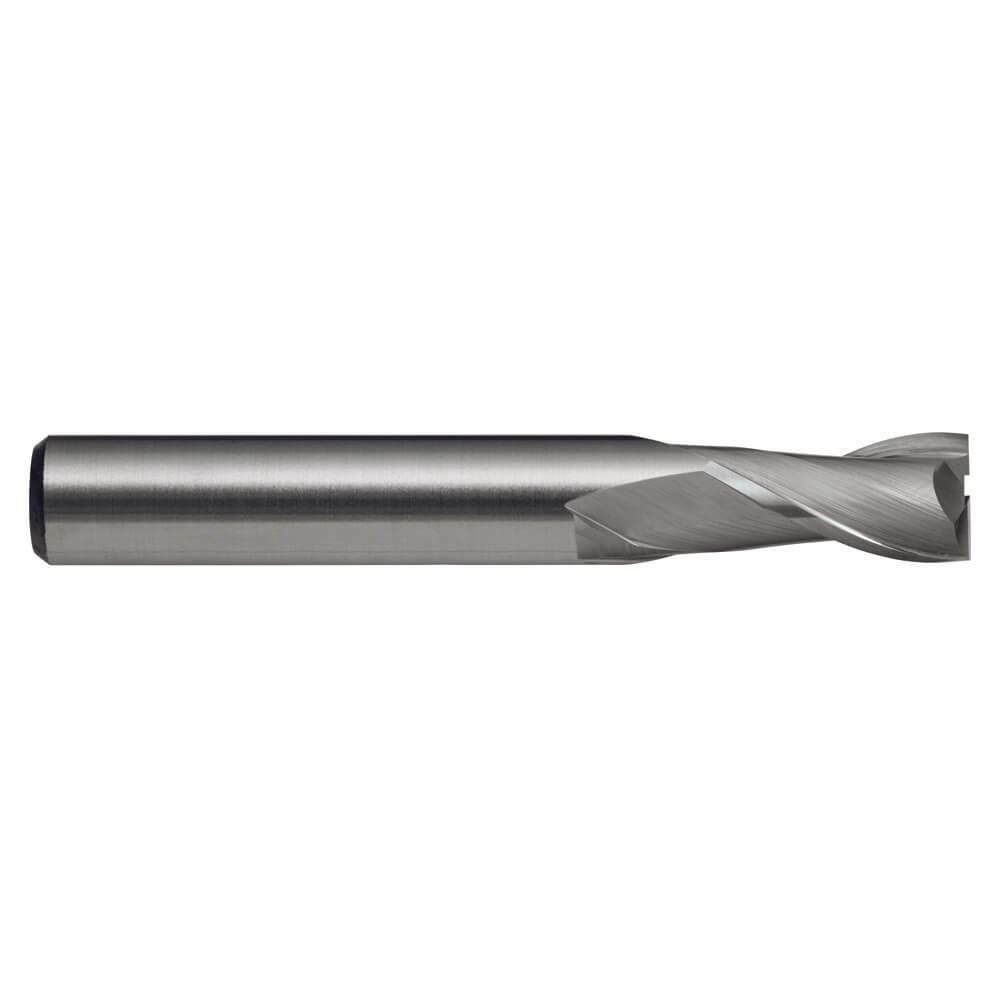

Sutton E6001400 14mm x 14mm 2 Flute Slot Drill - Carbide VHM - Regular

Sutton E6001600 16mm x 16mm 2 Flute Slot Drill - Carbide VHM - Regular

Sutton E6001800 18mm x 18mm 2 Flute Slot Drill - Carbide VHM - Regular

Sutton E6002000 20mm x 20mm 2 Flute Slot Drill - Carbide VHM - Regular

Sutton E6002500 25mm x 25mm 2 Flute Slot Drill - Carbide VHM - Regular

Description +

Description

For precision milling of slots & cavities

Specifications +

Specifications

Designation: N
Material: VHM
Finish: Bright
Shank Form: HA
Helix Angle: R30
Point Tolerance: h10
Shank Tolerance: h6
Point Form: Square End
Type: N (finishing)
Rake Angle: 12
Standard: Sutton

Application +

Applications

Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB

Features & Benefits +

Features

2 Flute Slot Drill R30 N
Suitable for materials up to 1600 N/mm2

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sutton E600 Metric 2 Flute Slot Drill - Carbide VHM - Regular

SKU: A0010090

$18.29

Inc. GST

Buy It Now

Available

The Sutton E600 Metric 2 Flute Slot Drill excels in precision milling of slots and cavities. Constructed from VHM material, it boasts a bright finish and a square end point form. It can handle materials up to 1600 N/mm2, offering dependable operation.
