Sutton E605 Metric 2 Flute Ball Nose Slot Drill Carbide TiAlN Regular1

Sutton E605 Metric 2 Flute Ball Nose Slot Drill Carbide TiAlN Regular2

Sutton E605 Metric 2 Flute Ball Nose Slot Drill Carbide TiAlN Regular3

Sutton E6050100 1 x 3mm 2 Flute Ball Nose Slot Drill Carbide TiAlN Regular

Sutton E6050150 1.5 x 3mm 2Flute BallNose Slot Drill Carbide TiAlN Regular

Sutton E6050200 2 x 3mm 2 Flute Ball Nose Slot Drill Carbide TiAlN Regular

Sutton E6050250 2.5 x 3mm 2Flute BallNose Slot Drill Carbide TiAlN Regular

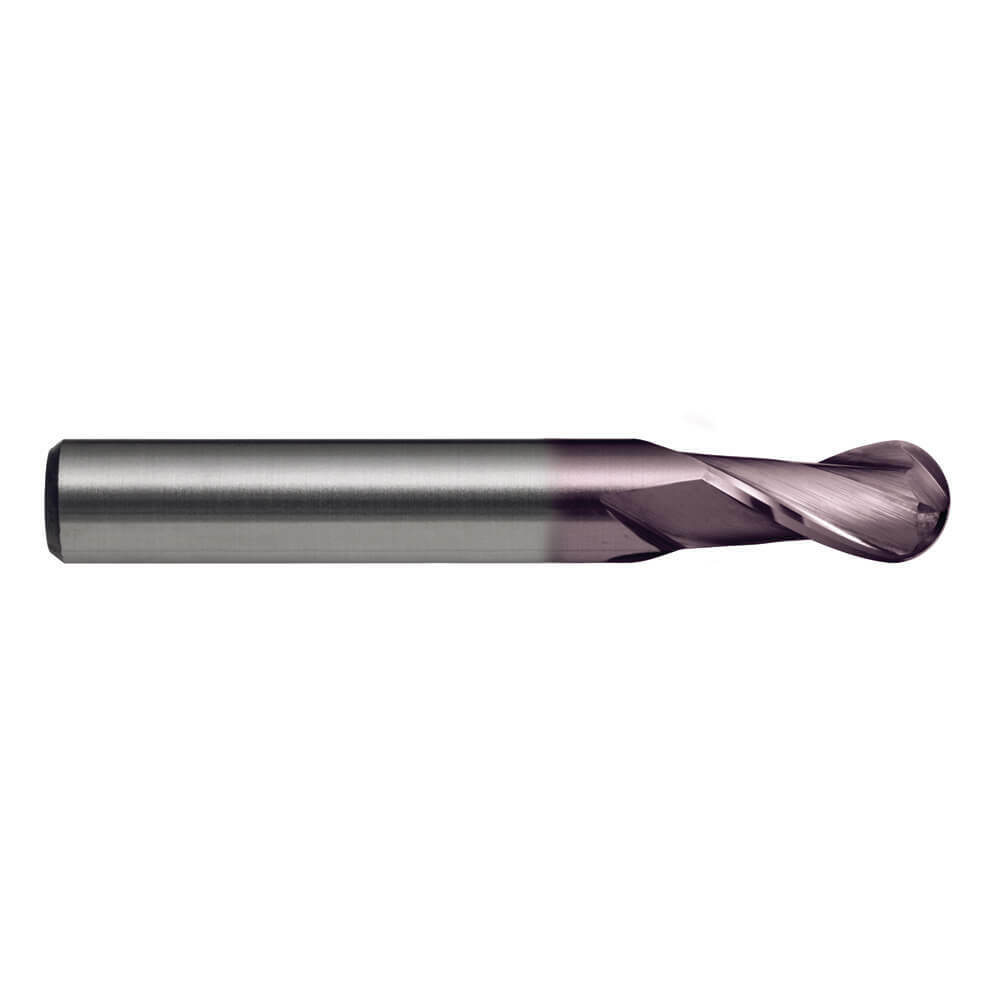

Sutton E6050300 3 x 4mm 2 Flute Ball Nose Slot Drill Carbide TiAlN Regular

Sutton E6050350 3.5 x 3mm 2Flute BallNose Slot Drill Carbide TiAlN Regular

Sutton E6050400 4 x 4mm 2 Flute Ball Nose Slot Drill Carbide TiAlN Regular

Sutton E6050500 5 x 6mm 2 Flute Ball Nose Slot Drill Carbide TiAlN Regular

Sutton E6050600 6 x 6mm 2 Flute Ball Nose Slot Drill Carbide TiAlN Regular

Sutton E6050700 7 x 8mm 2 Flute Ball Nose Slot Drill Carbide TiAlN Regular

Sutton E6050800 8 x 8mm 2 Flute Ball Nose Slot Drill Carbide TiAlN Regular

Sutton E6050900 9 x 10mm 2Flute Ball Nose Slot Drill Carbide TiAlN Regular

Sutton E6051000 10 x 10mm 2Flute BallNose Slot Drill Carbide TiAlN Regular

Sutton E6051100 11 x 12mm 2Flute BallNose Slot Drill Carbide TiAlN Regular

Sutton E6051200 12 x 12mm 2Flute BallNose Slot Drill Carbide TiAlN Regular

Sutton E6051400 14 x 14mm 2Flute BallNose Slot Drill Carbide TiAlN Regular

Sutton E6051600 16 x 16mm 2Flute BallNose Slot Drill Carbide TiAlN Regular

Sutton E6051800 18 x 18mm 2Flute BallNose Slot Drill Carbide TiAlN Regular

Sutton E6052000 20 x 20mm 2Flute BallNose Slot Drill Carbide TiAlN Regular

Sutton E6052500 25 x 25mm 2Flute BallNose Slot Drill Carbide TiAlN Regular

Sutton E605 Metric 2 Flute Ball Nose Slot Drill Carbide TiAlN Regular1

Sutton E605 Metric 2 Flute Ball Nose Slot Drill Carbide TiAlN Regular2

Sutton E605 Metric 2 Flute Ball Nose Slot Drill Carbide TiAlN Regular3

Sutton E6050100 1 x 3mm 2 Flute Ball Nose Slot Drill Carbide TiAlN Regular

Sutton E6050150 1.5 x 3mm 2Flute BallNose Slot Drill Carbide TiAlN Regular

Sutton E6050200 2 x 3mm 2 Flute Ball Nose Slot Drill Carbide TiAlN Regular

Sutton E6050250 2.5 x 3mm 2Flute BallNose Slot Drill Carbide TiAlN Regular

Sutton E6050300 3 x 4mm 2 Flute Ball Nose Slot Drill Carbide TiAlN Regular

Sutton E6050350 3.5 x 3mm 2Flute BallNose Slot Drill Carbide TiAlN Regular

Sutton E6050400 4 x 4mm 2 Flute Ball Nose Slot Drill Carbide TiAlN Regular

Sutton E6050500 5 x 6mm 2 Flute Ball Nose Slot Drill Carbide TiAlN Regular

Sutton E6050600 6 x 6mm 2 Flute Ball Nose Slot Drill Carbide TiAlN Regular

Sutton E6050700 7 x 8mm 2 Flute Ball Nose Slot Drill Carbide TiAlN Regular

Sutton E6050800 8 x 8mm 2 Flute Ball Nose Slot Drill Carbide TiAlN Regular

Sutton E6050900 9 x 10mm 2Flute Ball Nose Slot Drill Carbide TiAlN Regular

Sutton E6051000 10 x 10mm 2Flute BallNose Slot Drill Carbide TiAlN Regular

Sutton E6051100 11 x 12mm 2Flute BallNose Slot Drill Carbide TiAlN Regular

Sutton E6051200 12 x 12mm 2Flute BallNose Slot Drill Carbide TiAlN Regular

Sutton E6051400 14 x 14mm 2Flute BallNose Slot Drill Carbide TiAlN Regular

Sutton E6051600 16 x 16mm 2Flute BallNose Slot Drill Carbide TiAlN Regular

Sutton E6051800 18 x 18mm 2Flute BallNose Slot Drill Carbide TiAlN Regular

Sutton E6052000 20 x 20mm 2Flute BallNose Slot Drill Carbide TiAlN Regular

Sutton E6052500 25 x 25mm 2Flute BallNose Slot Drill Carbide TiAlN Regular

Description

Description

For profile & contour milling applications

Specifications

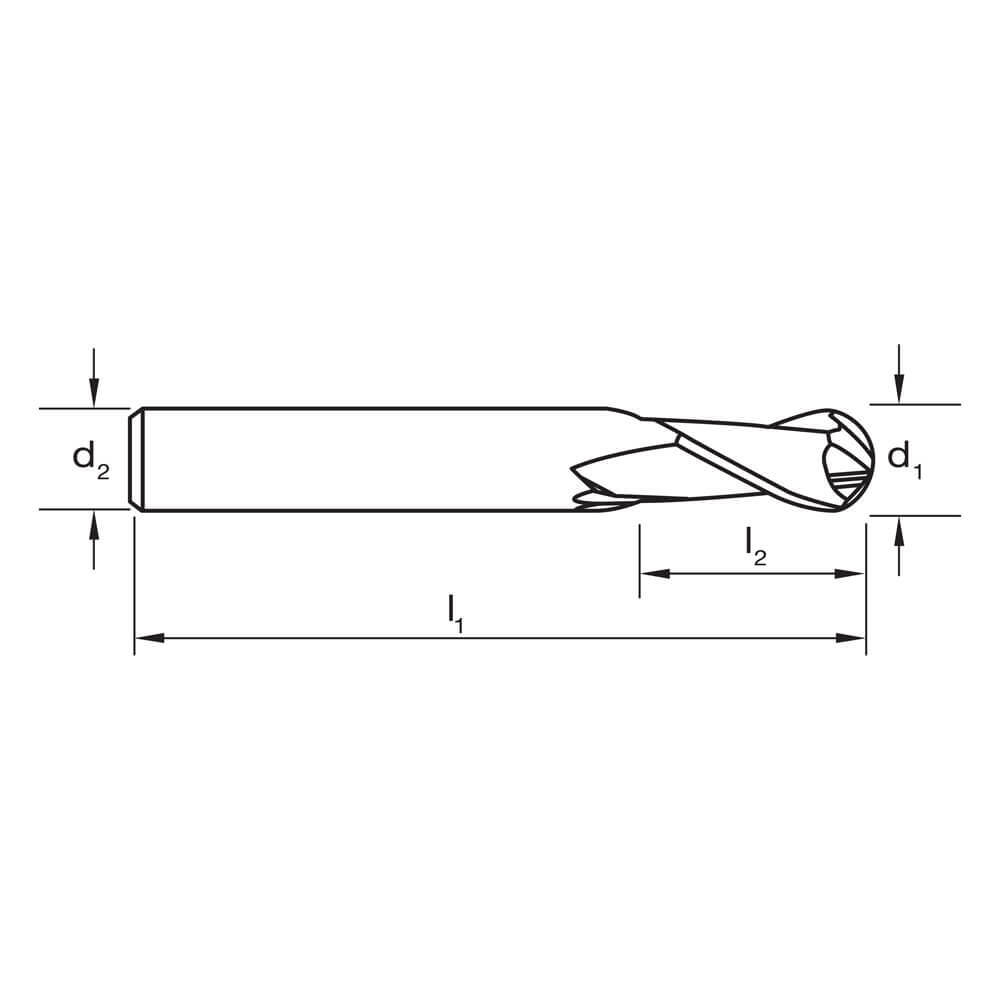

Dimensions

d1 (mm): 1
d2 (mm): 3
l1 (mm): 38
l2 (mm): 4
Quantity: 1

Specifications

Designation: N
Material: VHM
Finish: TiAIN
Shank Form: HA
Helix Angle: R30
Point Tolerance: h10
Shank Tolerance: h6
Point Form: Ballnose
Type: N (finishing)
Rake Angle: 12
Standard: Sutton

Applications

Applications

Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
Optimal for Steel - High alloy, cast & tool- 200 HB

Features & Benefits

Features

Ballnose Slot Drill 2 Flute
Suitable for materials up to 1600 N/mm2
TiAIN for longer tool life

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sutton E605 Metric 2 Flute Ball Nose Slot Drill Carbide TiAlN Regular

Sutton E605 Metric 2 Flute Ball Nose Slot Drill Carbide TiAlN Regular

SKU: A0010193

$25.72

$25.72

Tax included. Shipping calculated at checkout.

Wide Range
Reliable Services
Proven Trust

Available

The Sutton E605 is a 2 Flute Ball Nose Slot Drill, ideal for profile and contour milling. It features a TiAlN finish and can handle materials up to 1600 N/mm2. Its dimensions are d1: 1.5mm, d2: 3mm, l1: 38mm, and l2: 4.5mm.

Buy Now

FREE SHIPPING OVER $299*
RETURN AND EXCHANGE POLICY

Resources

Description

Description

For profile & contour milling applications

Specifications

Dimensions

d1 (mm): 1
d2 (mm): 3
l1 (mm): 38
l2 (mm): 4
Quantity: 1

Specifications

Designation: N
Material: VHM
Finish: TiAIN
Shank Form: HA
Helix Angle: R30
Point Tolerance: h10
Shank Tolerance: h6
Point Form: Ballnose
Type: N (finishing)
Rake Angle: 12
Standard: Sutton

Applications

Applications

Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
Optimal for Steel - High alloy, cast & tool- 200 HB

Features & Benefits

Features

Ballnose Slot Drill 2 Flute
Suitable for materials up to 1600 N/mm2
TiAIN for longer tool life
