Sutton E556 5mm Ball Nose Slot Drill 2 Flute - Carbide VHM Ultra - AlCrN - Long Reach
Available

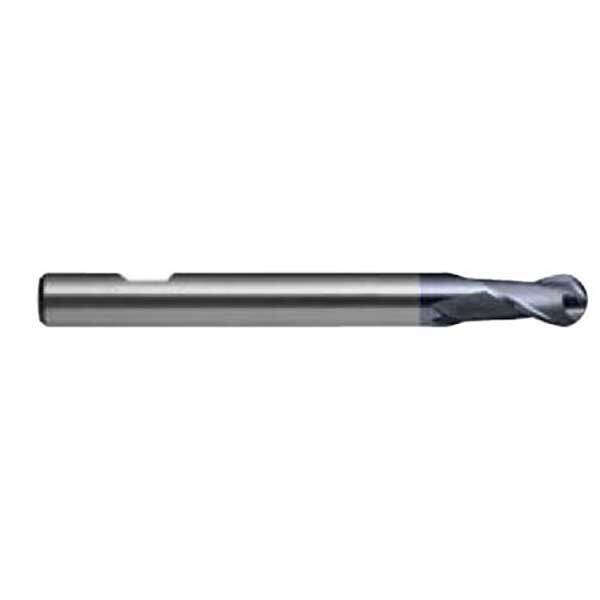

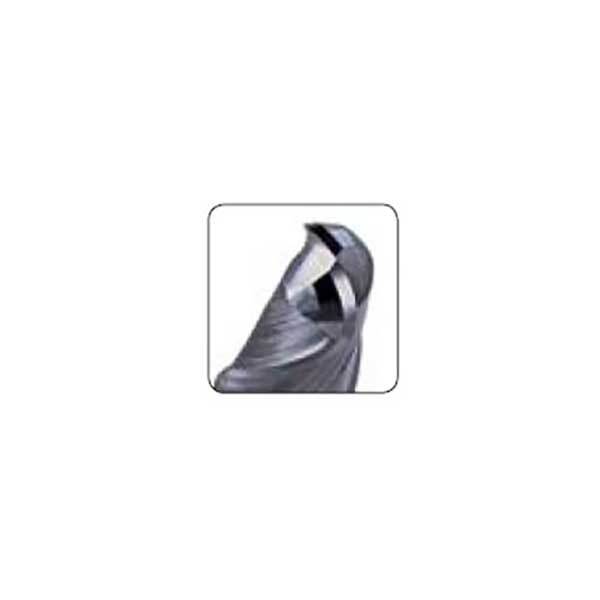

The Sutton E556 is a 2 flute ball nose slot drill made from VHM-ULTRA grade solid carbide, with an AlCrN coating. It is in the long reach series. This listing covers 8 metric sizes from 2 mm to 12 mm.
The cutting edge has a 30° helix and the designation is N. The shank is a cylindrical shank with Weldon flat (DIN 6535 form HB), with h6 shank tolerance and h10 cutting diameter tolerance.
Where this product is used
- Profile and contour milling in long reach applications.
- Materials up to 1600 N/mm2.
Design features
- VHM-ULTRA grade solid carbide construction.
- AlCrN coating for longer tool life.
- 2 flutes, 30° helix.
- Cylindrical shank with Weldon flat (DIN 6535 form HB).
- Tolerances: cutting diameter (d1) h10, shank h6.
Sizes

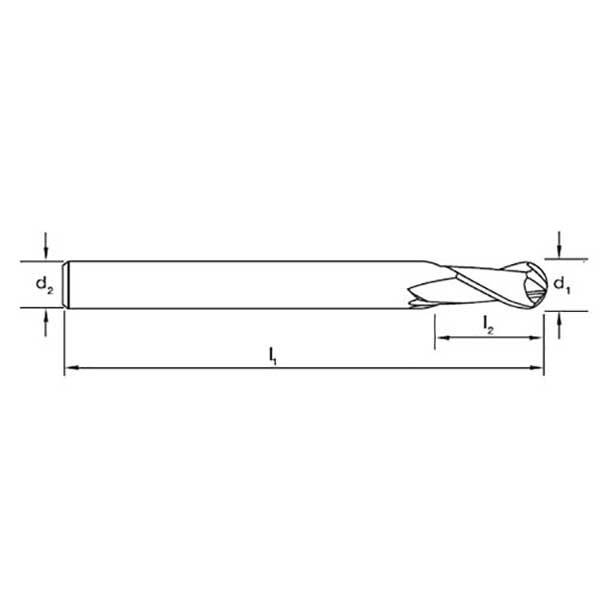

Diameters and lengths are in millimetres. Item numbers are the Sutton catalogue numbers.
| Item no. | d1 (mm) | l1 overall (mm) | l2 flute (mm) | d2 shank (mm) | Flutes |
|---|---|---|---|---|---|
| E556 0200 | 2 | 50 | 5 | 6 | 2 |
| E556 0300 | 3 | 60 | 8 | 6 | 2 |
| E556 0400 | 4 | 70 | 8 | 6 | 2 |
| E556 0500 | 5 | 80 | 10 | 6 | 2 |
| E556 0600 | 6 | 90 | 12 | 6 | 2 |
| E556 0800 | 8 | 100 | 14 | 8 | 2 |
| E556 1000 | 10 | 100 | 18 | 10 | 2 |
| E556 1200 | 12 | 110 | 22 | 12 | 2 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | E556 |
| Type | Ball Nose Slot Drill, 2 flute, long reach |
| Material | VHM-ULTRA solid carbide |
| Finish | AlCrN |
| Helix / geometry | R30 |
| Designation | N |
| Shank form | cylindrical shank with Weldon flat (DIN 6535 form HB) |
| Cutting diameter tolerance (d1) | h10 |
| Shank tolerance | h6 |
| Sizes in this listing | 8 sizes, 2 to 12 mm |
