Sutton E603 Metric 2 Flute Endmill - Carbide VHM TiAlN - Regular1

Sutton E603 Metric 2 Flute Endmill - Carbide VHM TiAlN - Regular2

Sutton E603 Metric 2 Flute Endmill - Carbide VHM TiAlN - Regular3

Sutton E6030100 1mm x 3mm 2 Flute Endmill - Carbide VHM TiAlN - Regular

Sutton E6030150 1.5mm x 3mm 2 Flute Endmill - Carbide VHM TiAlN - Regular

Sutton E6030200 2mm x 3mm 2 Flute Endmill - Carbide VHM TiAlN - Regular

Sutton E6030250 2.5mm x 3mm 2 Flute Endmill - Carbide VHM TiAlN - Regular

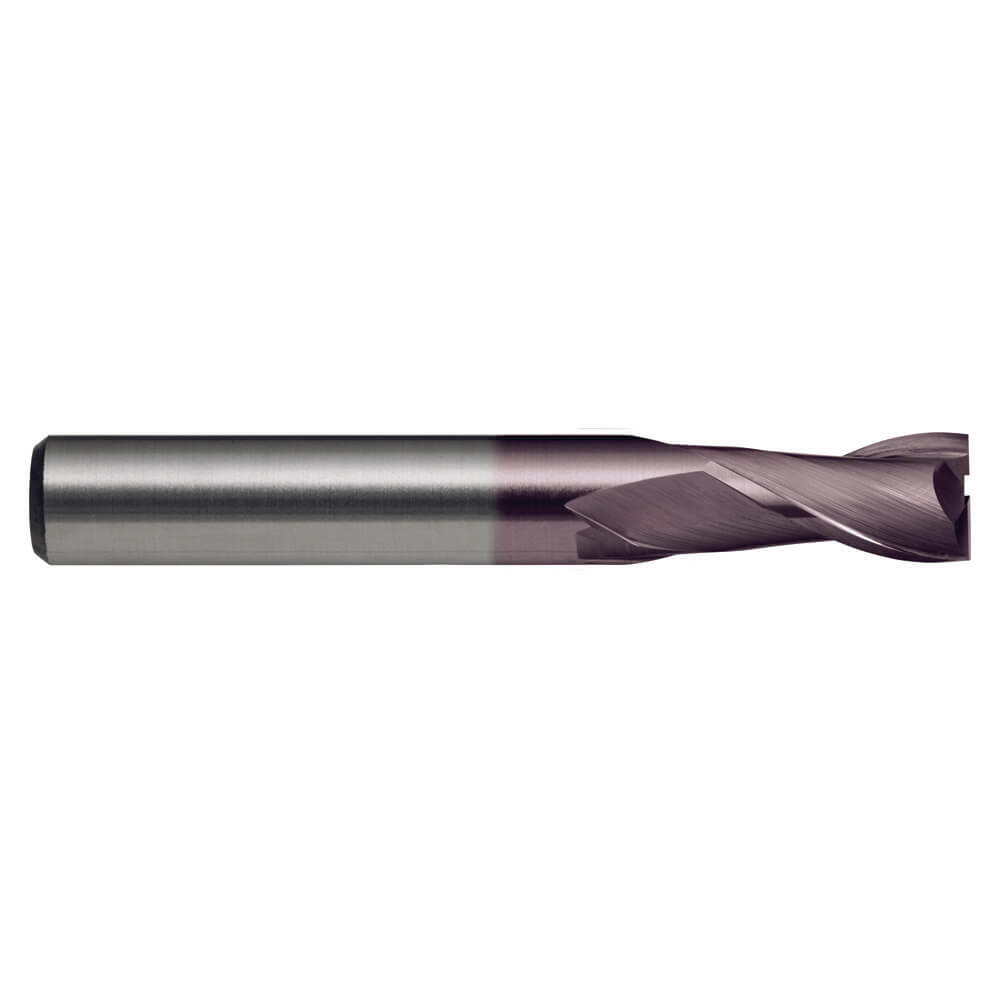

Sutton E6030300 3mm x 3mm 2 Flute Endmill - Carbide VHM TiAlN - Regular

Sutton E6030350 3.5mm x 4mm 2 Flute Endmill - Carbide VHM TiAlN - Regular

Sutton E6030400 4mm x 4mm 2 Flute Endmill - Carbide VHM TiAlN - Regular

Sutton E6030450 4.5mm x 6mm 2 Flute Endmill - Carbide VHM TiAlN - Regular

Sutton E6030500 5mm x 6mm 2 Flute Endmill - Carbide VHM TiAlN - Regular

Sutton E6030600 6mm x 6mm 2 Flute Endmill - Carbide VHM TiAlN - Regular

Sutton E6030700 7mm x 8mm 2 Flute Endmill - Carbide VHM TiAlN - Regular

Sutton E6030800 8mm x 8mm 2 Flute Endmill - Carbide VHM TiAlN - Regular

Sutton E6030900 9mm x 10mm 2 Flute Endmill - Carbide VHM TiAlN - Regular

Sutton E6031000 10mm x 10mm 2 Flute Endmill - Carbide VHM TiAlN - Regular

Sutton E6031100 11mm x 12mm 2 Flute Endmill - Carbide VHM TiAlN - Regular

Sutton E6031200 12mm x 12mm 2 Flute Endmill - Carbide VHM TiAlN - Regular

Sutton E6031400 14mm x 14mm 2 Flute Endmill - Carbide VHM TiAlN - Regular

Sutton E6031600 16mm x 16mm 2 Flute Endmill - Carbide VHM TiAlN - Regular

Sutton E6031800 18mm x 18mm 2 Flute Endmill - Carbide VHM TiAlN - Regular

Sutton E6032000 20mm x 20mm 2 Flute Endmill - Carbide VHM TiAlN - Regular

Sutton E6032500 25mm x 25mm 2 Flute Endmill - Carbide VHM TiAlN - Regular

Description +

Description

For precision milling of slots & cavities

Specifications +

Specifications

Designation: N
Material: VHM
Finish: Bright
Shank Form: HA
Helix Angle: R30
Point Tolerance: h10
Shank Tolerance: h6
Point Form: Square End
Type: N (finishing)
Rake Angle: 12
Standard: Sutton

Application +

Applications

Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
Optimal for Steel - High alloy, cast & tool- 200 HB

Features & Benefits +

Features

2 Flute Slot Drill R30 N
Suitable for materials up to 1600 N/mm2
TiAIN for longer tool life

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sutton E603 Metric 2 Flute Endmill - Carbide VHM TiAlN - Regular

SKU: A0010151

$21.31

Inc. GST

Buy It Now

Available

The Sutton E603 Metric 2 Flute Endmill is designed for precision milling of slots and cavities. With a TiAlN finish for extended tool life, this endmill can handle materials up to 1600 N/mm2. It features a square end point form and a helix angle of R30.
