Sutton T152 Metric Spiral Flute Tap - Cobalt Steel TiCN1

Sutton T152 Metric Spiral Flute Tap - Cobalt Steel TiCN2

Sutton T1520300 Metric M3 x 0.5 Spiral Flute Tap - Cobalt Steel TiCN

Sutton T1520400 Metric M4 x 0.7 Spiral Flute Tap - Cobalt Steel TiCN

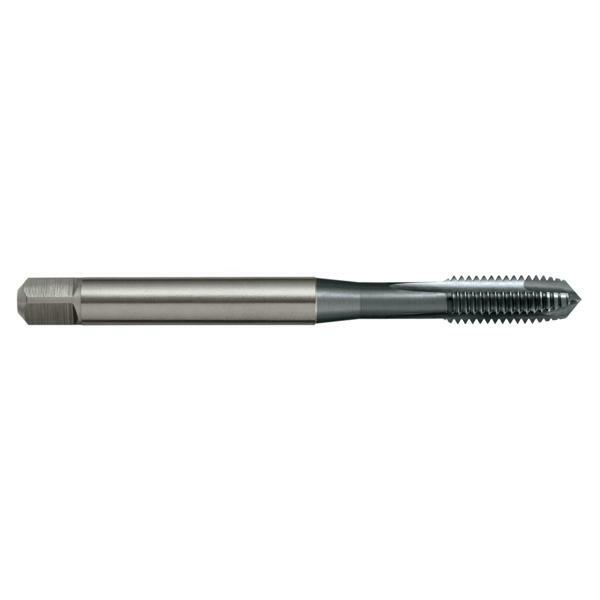

Sutton T1520500 Metric M5 x 0.8 Spiral Flute Tap - Cobalt Steel TiCN

Sutton T1520600 Metric M6 x 1 Spiral Flute Tap - Cobalt Steel TiCN

Sutton T1520800 Metric M8 x 1.25 Spiral Flute Tap - Cobalt Steel TiCN

Sutton T1521000 Metric M10 x 1.5 Spiral Flute Tap - Cobalt Steel TiCN

Specifications +

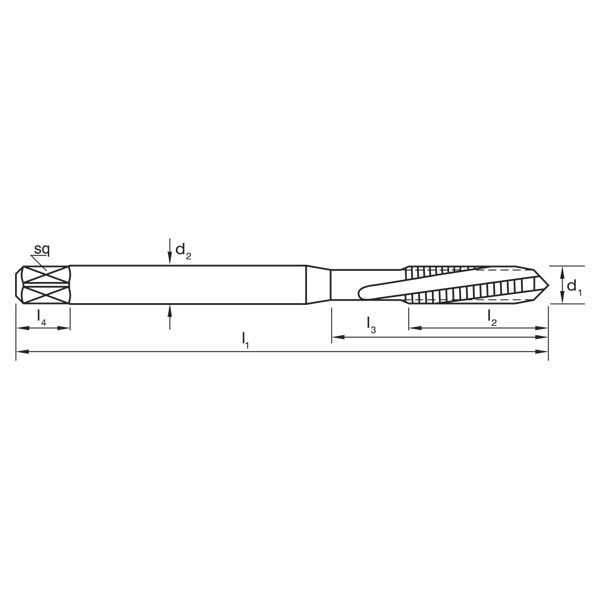

Dimensions

d1 (mm): M3
d2 (mm): 3.5
l1 (mm): 56
l2 (mm): 11
l3 (mm): 18
l4 (mm): 6
Square Size (mm): 2.7
z: 3
Drill Size (mm): 2.5 (drill)
Pitch (mm): 0.5 (pitch)

Specifications

Designation: Ti (for titaniums)
Material: Powdered Metallurgy- High Speed Steel Cobalt (PM-HSS Co8%)
Finish: Titanium Carbonitride (TiCN)
Max Cut Depth: 1.5xD
Shank Form: Reinforced Shank (with square drive)
Helix Angle: L12
X: als
Type: Spiral Flute
Standard: DIN371
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: 6HX
Lead: Form B / 4.5 x P

Application +

Applications

Titanium & Titanium alloys - Alpha alloys
Titanium & Titanium alloys - Alpha / Beta alloys: Annealed
Titanium & Titanium alloys - Beta alloys: Annealed

Features & Benefits +

Features

Use in stainless steels and high strength steels up to 1000N/mm2
For Titanium based alloys
For duplex and super duplex stainless steels
For Nickel based alloys >850N/mm2 <1150N/mm2
Tight tolerances and optimised microfinish
For optimal process reliability and excellent thread quality
Through holes up to approx. 1.5 x d1

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Save 30%

Sutton T152 Metric Spiral Flute Tap - Cobalt Steel TiCN

SKU: A0013082

Type: Spiral Flute Tap

$52.00

$52.00 ~~$74.29~~

Inc. GST

⚙Cobalt HSS Construction

⚙Sutton Metric Spiral Flute

📐Multiple Sizes Available

🔩Precise Thread Cutting

🏗Metalworking & Manufacturing

☑High Speed Operation Rated

Available

Product Highlights −

Dimensions

d1 (mm): M3
d2 (mm): 3.5
l1 (mm): 56
l2 (mm): 11
l3 (mm): 18
l4 (mm): 6
Square Size (mm): 2.7
z: 3
Drill Size (mm): 2.5 (drill)
Pitch (mm): 0.5 (pitch)

Features

Use in stainless steels and high strength steels up to 1000N/mm2
For Titanium based alloys
For duplex and super duplex stainless steels
For Nickel based alloys >850N/mm2 <1150N/mm2
Tight tolerances and optimised microfinish
For optimal process reliability and excellent thread quality
Through holes up to approx. 1.5 x d1

Specifications

Designation: Ti (for titaniums)
Material: Powdered Metallurgy- High Speed Steel Cobalt (PM-HSS Co8%)
Finish: Titanium Carbonitride (TiCN)
Max Cut Depth: 1.5xD
Shank Form: Reinforced Shank (with square drive)
Helix Angle: L12
X: als
Type: Spiral Flute
Standard: DIN371
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: 6HX
Lead: Form B / 4.5 x P

Applications

Titanium & Titanium alloys - Alpha alloys
Titanium & Titanium alloys - Alpha / Beta alloys: Annealed
Titanium & Titanium alloys - Beta alloys: Annealed
