Sutton T202 M6 x 1 Spiral Flute Tap R45 VA DH - HSSE - TiCN - DIN 376
Available

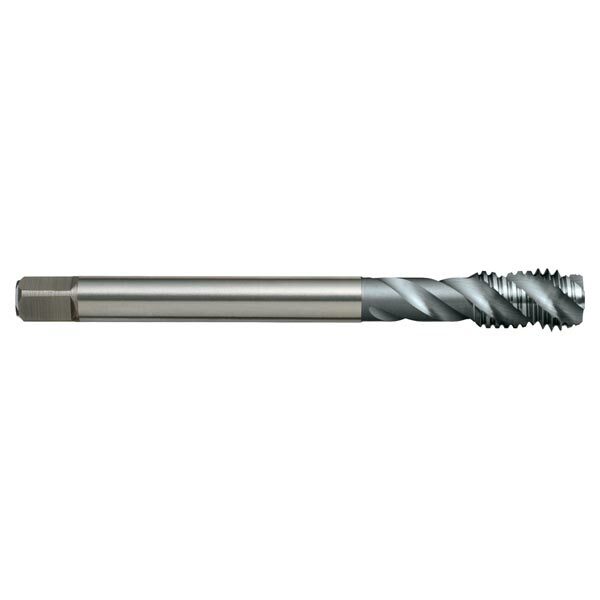

The Sutton T202 is a spiral flute tap (R45 spiral, VA DH designation) for metric coarse (M) threads, made from premium grade high speed steel (HSSE) with a TiCN coating. This listing covers 13 sizes from M6 x 1 to M36 x 4.
The 45° right-hand spiral flute suits blind holes in long chipping materials: the high helix angle curls the chips and transports them back out of the hole. The tap cuts on reversal, so the flutes have rake on both front and back faces. The chamfer is Form C (2.5 x P), generally for blind holes.
The thread tolerance is ISO 2 / 6H. The tap is built to DIN 376: reduced shank with square drive.
Where this product is used
- Suitable for controlled tapping in deep holes.
- Use in stainless steels and high strength steels up to 850 N/mm2.
- Blind holes.
- Depths up to 3 x d1.
Design features
- Premium grade high speed steel (HSSE). The vanadium grade gives high wear resistance and toughness for most tapping applications.
- TiCN coating for abrasive materials such as cast iron and aluminium alloys, and adhesive materials such as copper and copper-based alloys.
- 3 to 4 flutes, depending on size.
- 45° right-hand spiral flute.
- Form C chamfer, 2.5 x P.
- Thread tolerance ISO 2 / 6H.
- DIN 376 construction, reduced shank with square drive.
Sizes
Dimensions are in millimetres. Item numbers are the Sutton catalogue numbers. If you are not sure which tapping drill to use, try our tap drill size selector.
| Item no. | Thread size | Pitch (mm) | Tapping drill (mm) | l1 overall (mm) | l2 thread (mm) | d2 shank (mm) | sq square (mm) | l4 square length (mm) | Flutes |
|---|---|---|---|---|---|---|---|---|---|
| T202 0600 | M6 x 1 | 1 | 5 | 80 | 10 | 4.5 | 3.4 | 6 | 3 |
| T202 0800 | M8 x 1.25 | 1.25 | 6.8 | 90 | 12.5 | 6 | 4.9 | 8 | 3 |
| T202 1000 | M10 x 1.5 | 1.5 | 8.5 | 100 | 15 | 7 | 5.5 | 8 | 3 |
| T202 1200 | M12 x 1.75 | 1.75 | 10.2 | 110 | 17.5 | 9 | 7 | 10 | 3 |
| T202 1400 | M14 x 2 | 2 | 12 | 110 | 20 | 11 | 9 | 12 | 3 |
| T202 1600 | M16 x 2 | 2 | 14 | 110 | 20 | 12 | 9 | 12 | 4 |
| T202 1800 | M18 x 2.5 | 2.5 | 15.5 | 125 | 25 | 14 | 11 | 14 | 4 |
| T202 2000 | M20 x 2.5 | 2.5 | 17.5 | 140 | 25 | 16 | 12 | 15 | 4 |
| T202 2200 | M22 x 2.5 | 2.5 | 19.5 | 140 | 25 | 18 | 14.5 | 17 | 4 |
| T202 2400 | M24 x 3 | 3 | 21 | 160 | 30 | 18 | 14.5 | 17 | 4 |
| T202 2700 | M27 x 3 | 3 | 24 | 160 | 30 | 20 | 16 | 19 | 4 |
| T202 3000 | M30 x 3.5 | 3.5 | 26.5 | 180 | 35 | 22 | 18 | 21 | 4 |
| T202 3600 | M36 x 4 | 4 | 32 | 200 | 40 | 28 | 22 | 25 | 4 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | T202 |
| Type | Spiral flute tap |
| Thread series | Metric coarse (M) |
| Material | HSSE |
| Finish | TiCN |
| Designation | VA DH |
| Spiral | R45 (45° right-hand) |
| Chamfer | Form C / 2.5 x P |
| Thread tolerance | ISO 2 / 6H |
| Standard | DIN 376 |
| Flutes | 3 to 4 |
| Sizes in this listing | 13 sizes, M6 x 1 to M36 x 4 |
