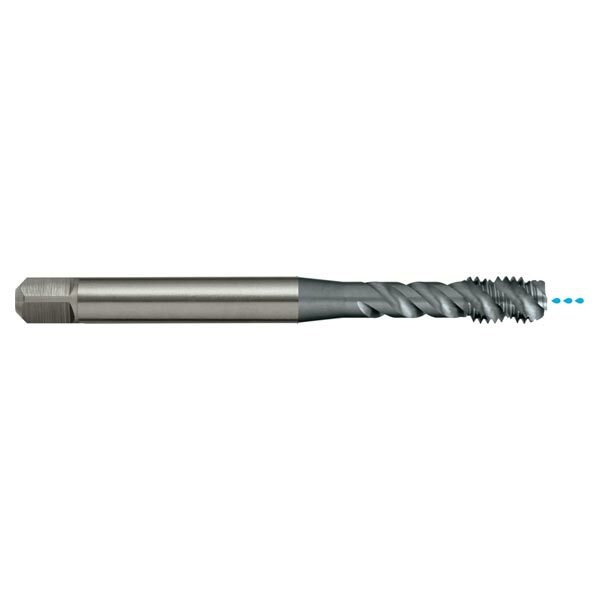

Sutton T207 M5 x 0.8 Spiral Flute Tap R50 VA PM IK - PM-HSSE V3 - TiCN - DIN 371
Available
The Sutton T207 is a spiral flute tap (R50 spiral, VA PM designation, internal coolant) for metric coarse (M) threads, made from powder metallurgy, vanadium grade high speed steel (PM-HSSE V3) with a TiCN coating. This listing covers 4 sizes from M5 x 0.8 to M10 x 1.5.
The 50° right-hand spiral flute suits blind holes in long chipping materials: the high helix angle curls the chips and transports them back out of the hole. The tap cuts on reversal, so the flutes have rake on both front and back faces. The VA PM designation is for stainless and tough steels, with the VA geometry in powder metal high speed steel. The chamfer is Form C (2.5 x P), generally for blind holes.
The thread tolerance is 6HX. The tap is built to DIN 371: reinforced shank with square drive. The internal coolant duct (IK) delivers coolant through the tap to the cutting zone.
Where this product is used
- Universal high performance tapping.
- Use in stainless steels and high strength steels up to 850 N/mm2.
- Deep blind holes.
- Depths up to 3 x d1.
Design features
- Powder metallurgy, vanadium grade high speed steel (PM-HSSE V3). The very fine and uniform grain structure allows high hardness while keeping good toughness, for materials up to 40 HRC and difficult-to-machine materials such as stainless steels.
- TiCN coating for abrasive materials such as cast iron and aluminium alloys, and adhesive materials such as copper and copper-based alloys.
- 4 flutes.
- 50° right-hand spiral flute.
- Form C chamfer, 2.5 x P.
- Thread tolerance 6HX.
- The VA PM designation is for stainless and tough steels, with the VA geometry in powder metal high speed steel.
- PM-HSSE V3 offers superior tool life.
- DIN 371 construction, reinforced shank with square drive.
Sizes

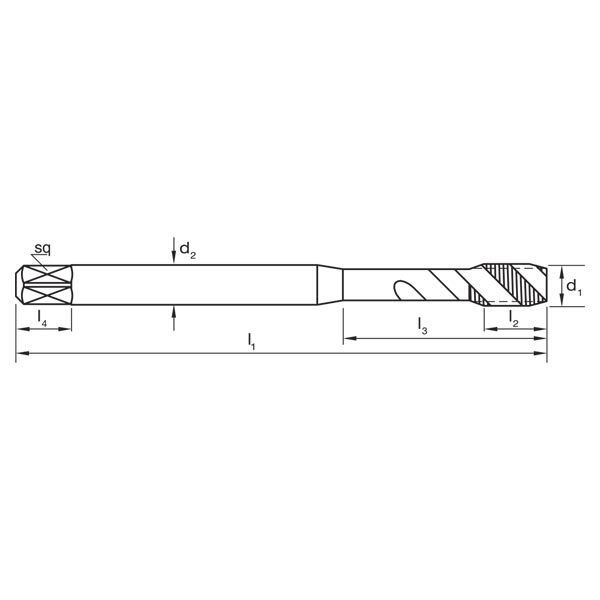

Dimensions are in millimetres. Item numbers are the Sutton catalogue numbers. If you are not sure which tapping drill to use, try our tap drill size selector.
| Item no. | Thread size | Pitch (mm) | Tapping drill (mm) | l1 overall (mm) | l2 thread (mm) | l3 (mm) | d2 shank (mm) | sq square (mm) | l4 square length (mm) | Flutes |
|---|---|---|---|---|---|---|---|---|---|---|
| T207 0500 | M5 x 0.8 | 0.8 | 4.2 | 70 | 8 | 25 | 6 | 4.9 | 8 | 4 |
| T207 0600 | M6 x 1 | 1 | 5 | 80 | 10 | 30 | 6 | 4.9 | 8 | 4 |
| T207 0800 | M8 x 1.25 | 1.25 | 6.8 | 90 | 12.5 | 35 | 8 | 6.2 | 9 | 4 |
| T207 1000 | M10 x 1.5 | 1.5 | 8.5 | 100 | 15 | 39 | 10 | 8 | 11 | 4 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | T207 |
| Type | Spiral flute tap |
| Thread series | Metric coarse (M) |
| Material | PM-HSSE V3 |
| Finish | TiCN |
| Designation | VA PM - IK |
| Spiral | R50 (50° right-hand) |
| Chamfer | Form C / 2.5 x P |
| Thread tolerance | 6HX |
| Standard | DIN 371 |
| Flutes | 4 |
| Sizes in this listing | 4 sizes, M5 x 0.8 to M10 x 1.5 |
Related products
Related Sutton taps: T208 Metric Coarse Spiral Flute Tap R50 VA PM IK - PM-HSSE V3 - TiCN - DIN 376, T206 Metric Coarse Spiral Flute Tap R50 VA PM - PM-HSSE V3 - TiCN - DIN 376, T205 Metric Coarse Spiral Flute Tap R50 VA PM - PM-HSSE V3 - TiCN - DIN 371, T209 Metric Coarse Spiral Flute Tap R15 H - PM-HSS Co - Steam Oxide - DIN 371, T210 Metric Coarse Spiral Flute Tap R15 H - PM-HSS Co - Steam Oxide - DIN 376.
