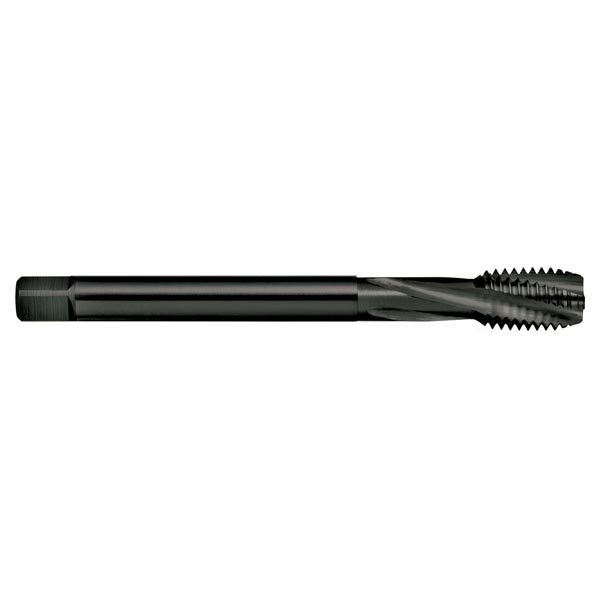

Sutton T2102000 M20 x 2.5 Spiral Flute Tap - R15 H - Cobalt Steel Blue
Sutton T210 Metric Spiral Flute Tap - R15 H - Cobalt Steel Blue1
Sutton T210 Metric Spiral Flute Tap - R15 H - Cobalt Steel Blue2
Sutton T2101200 M12 x 1.75 Spiral Flute Tap - R15 H - Cobalt Steel Blue
Sutton T2101400 M14 x 2 Spiral Flute Tap - R15 H - Cobalt Steel Blue
Sutton T2101600 M16 x 2 Spiral Flute Tap - R15 H - Cobalt Steel Blue
Sutton T2101800 M18 x 2.5 Spiral Flute Tap - R15 H - Cobalt Steel Blue
Sutton T2102000 M20 x 2.5 Spiral Flute Tap - R15 H - Cobalt Steel Blue

Sutton T210 Metric Spiral Flute Tap - R15 H - Cobalt Steel Blue

Sutton T210 Metric Spiral Flute Tap - R15 H - Cobalt Steel Blue

SKU: A0013654

$96.55
$96.55
Inc. GST
Buy It Now

Available

The Sutton T210 Metric Spiral Flute Tap by Sutton Tools is a 0 made of Powdered Metallurgy High Speed Steel Cobalt (PM-HSS Co8%). It provides M12 thread size and is suitable for Steel - High alloy, cast & tool: Hardened & Tempered.

Resources

File icon
Sutton-Tools-Taps-Dies-Threading-Catalogue
File icon
Sutton-Tools-ISO-Taps-Catalogue

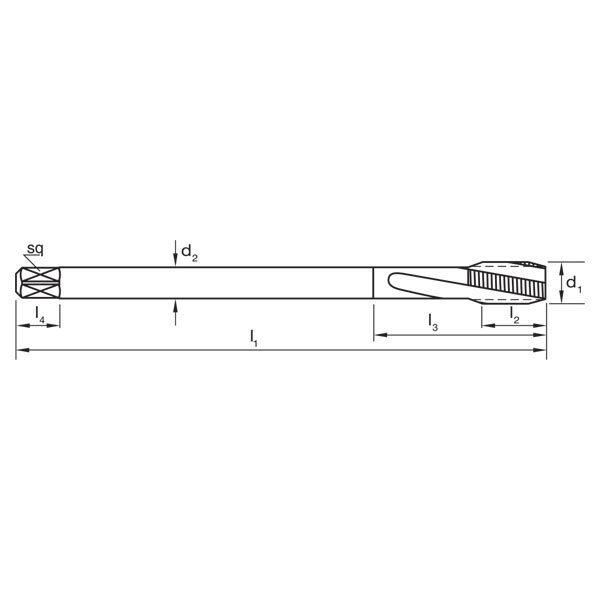

Dimensions

  • d1: M12
  • d2 (mm): 9
  • l1 (mm): 110
  • l2 (mm): 17.5
  • l4 (mm): 10
  • Square Size (mm): 7
  • z: 4
  • Drill Size (mm): 10.2 (drill)
  • Pitch (mm): 1.75 (pitch)

Features

  • Suitable for harder short chipping materials up to 45 HRc
  • Blind holes
  • Depths up to 1.5 x d1

Specifications

  • Designation: H (for hard materials forming short chips)
  • Material: Powdered Metallurgy- High Speed Steel Cobalt (PM-HSS Co8%)
  • Finish: Steam Oxide (Blue)
  • Max Cut Depth: 1.5xD
  • Shank Form: Reduced Shank (with square drive)
  • Helix Angle: R15
  • X: als
  • Type: Spiral Flute
  • Standard: DIN376
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: ISO 2 / 6HX
  • Lead: Form C / 3 x P

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Quenched & Tempered
  • Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
  • Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
  • Steel - High alloy, cast & tool: Hardened & Tempered

Dimensions

  • d1: M12
  • d2 (mm): 9
  • l1 (mm): 110
  • l2 (mm): 17.5
  • l4 (mm): 10
  • Square Size (mm): 7
  • z: 4
  • Drill Size (mm): 10.2 (drill)
  • Pitch (mm): 1.75 (pitch)

Specifications

  • Designation: H (for hard materials forming short chips)
  • Material: Powdered Metallurgy- High Speed Steel Cobalt (PM-HSS Co8%)
  • Finish: Steam Oxide (Blue)
  • Max Cut Depth: 1.5xD
  • Shank Form: Reduced Shank (with square drive)
  • Helix Angle: R15
  • X: als
  • Type: Spiral Flute
  • Standard: DIN376
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: ISO 2 / 6HX
  • Lead: Form C / 3 x P

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Quenched & Tempered
  • Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
  • Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
  • Steel - High alloy, cast & tool: Hardened & Tempered

Features

  • Suitable for harder short chipping materials up to 45 HRc
  • Blind holes
  • Depths up to 1.5 x d1
