Description
Description
Dimensions
- d1: M3
- d2 (mm): 3.5
- l1 (mm): 56
- l2 (mm): 6
- l3 (mm): 18
- l4 (mm): 6
- Square Size (mm): 2.7
- z: 3
- Drill Size (mm): 2.5 (drill)
- Pitch (mm): 0.5 (pitch)
Features
- Suitable for harder short chipping materials up to 45 HRc
- Blind holes
- Depths up to 1.5 x d1
Specifications
- Designation: H (for hard materials forming short chips)
- Material: Powdered Metallurgy- High Speed Steel Cobalt (PM-HSS Co8%)
- Finish: Steam Oxide (Blue)
- Max Cut Depth: 1.5xD
- Shank Form: Reinforced Shank (with square drive)
- Helix Angle: R15
- X: als
- Type: Spiral Flute
- Standard: DIN371
- Thread Form: ISO Metric Coarse (M)
- Nut Tolerance: ISO 2 / 6HX
- Lead: Form C / 3 x P
Applications
- Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Quenched & Tempered
- Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
- Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
- Steel - High alloy, cast & tool: Hardened & Tempered
Specifications
Specifications
Dimensions
- d1: M3
- d2 (mm): 3.5
- l1 (mm): 56
- l2 (mm): 6
- l3 (mm): 18
- l4 (mm): 6
- Square Size (mm): 2.7
- z: 3
- Drill Size (mm): 2.5 (drill)
- Pitch (mm): 0.5 (pitch)
Specifications
- Designation: H (for hard materials forming short chips)
- Material: Powdered Metallurgy- High Speed Steel Cobalt (PM-HSS Co8%)
- Finish: Steam Oxide (Blue)
- Max Cut Depth: 1.5xD
- Shank Form: Reinforced Shank (with square drive)
- Helix Angle: R15
- X: als
- Type: Spiral Flute
- Standard: DIN371
- Thread Form: ISO Metric Coarse (M)
- Nut Tolerance: ISO 2 / 6HX
- Lead: Form C / 3 x P
Applications
Applications
Applications
- Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Quenched & Tempered
- Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
- Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
- Steel - High alloy, cast & tool: Hardened & Tempered
Features & Benefits
Features & Benefits
Features
- Suitable for harder short chipping materials up to 45 HRc
- Blind holes
- Depths up to 1.5 x d1
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

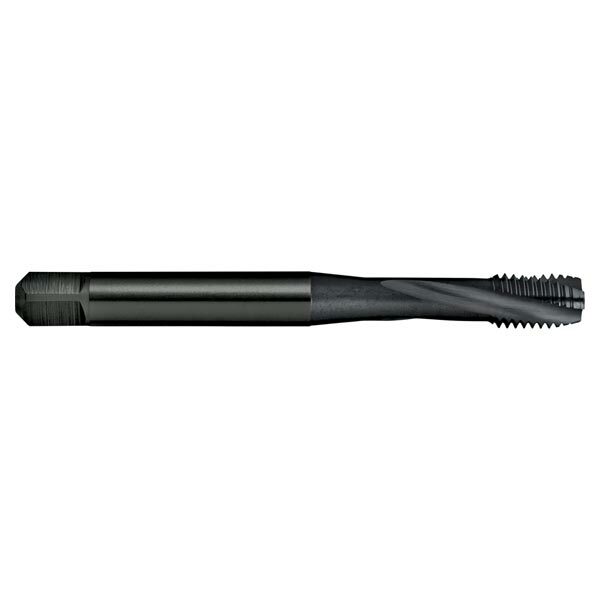

Sutton T209 Metric Spiral Flute Tap - R15 H - Cobalt Steel Blue
Sutton T209 Metric Spiral Flute Tap - R15 H - Cobalt Steel Blue
SKU: A0013648
- Wide Range
- Reliable Services
- Proven Trust
Available
The Sutton T209 Metric Spiral Flute Tap by Sutton Tools is a 0 made from Powdered Metallurgy- High Speed Steel Cobalt (PM-HSS Co8%). It provides 100 mm l1 length and is suitable for Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Quenched & Tempered.
- FREE SHIPPING OVER $299*
- RETURN AND EXCHANGE POLICY
Couldn't load pickup availability
Description
Description
Dimensions
- d1: M3
- d2 (mm): 3.5
- l1 (mm): 56
- l2 (mm): 6
- l3 (mm): 18
- l4 (mm): 6
- Square Size (mm): 2.7
- z: 3
- Drill Size (mm): 2.5 (drill)
- Pitch (mm): 0.5 (pitch)
Features
- Suitable for harder short chipping materials up to 45 HRc
- Blind holes
- Depths up to 1.5 x d1
Specifications
- Designation: H (for hard materials forming short chips)
- Material: Powdered Metallurgy- High Speed Steel Cobalt (PM-HSS Co8%)
- Finish: Steam Oxide (Blue)
- Max Cut Depth: 1.5xD
- Shank Form: Reinforced Shank (with square drive)
- Helix Angle: R15
- X: als
- Type: Spiral Flute
- Standard: DIN371
- Thread Form: ISO Metric Coarse (M)
- Nut Tolerance: ISO 2 / 6HX
- Lead: Form C / 3 x P
Applications
- Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Quenched & Tempered
- Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
- Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
- Steel - High alloy, cast & tool: Hardened & Tempered
Specifications
Specifications
Dimensions
- d1: M3
- d2 (mm): 3.5
- l1 (mm): 56
- l2 (mm): 6
- l3 (mm): 18
- l4 (mm): 6
- Square Size (mm): 2.7
- z: 3
- Drill Size (mm): 2.5 (drill)
- Pitch (mm): 0.5 (pitch)
Specifications
- Designation: H (for hard materials forming short chips)
- Material: Powdered Metallurgy- High Speed Steel Cobalt (PM-HSS Co8%)
- Finish: Steam Oxide (Blue)
- Max Cut Depth: 1.5xD
- Shank Form: Reinforced Shank (with square drive)
- Helix Angle: R15
- X: als
- Type: Spiral Flute
- Standard: DIN371
- Thread Form: ISO Metric Coarse (M)
- Nut Tolerance: ISO 2 / 6HX
- Lead: Form C / 3 x P
Applications
Applications
Applications
- Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Quenched & Tempered
- Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
- Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
- Steel - High alloy, cast & tool: Hardened & Tempered
Features & Benefits
Features & Benefits
Features
- Suitable for harder short chipping materials up to 45 HRc
- Blind holes
- Depths up to 1.5 x d1
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Sutton T209 Metric Spiral Flute Tap - R15 H - Cobalt Steel Blue
Customer Service
Mon-Fri, 08:00-05:00pm
Call Us
(02) 9773-0122
Talk to a Sales Engineer
sales@aimsindustrial.com.au
Warehouse Address
Milperra NSW 2214, Australia
Your cart
(0)
Your cart is currently empty.
Not sure where to start? Try these collections:
Order note
Estimate Shipping
Product Comparison
| Description |
| Price |
| Vendor |
| Type |
| Product variants |
|
| The Sutton T209 Metric Spiral Flute Tap by Sutton Tools is a 0 made from Powdered Metallurgy- High Speed Steel Cobalt (PM-HSS Co8%). It provides 100 mm l1 length and is suitable for Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Quenched & Tempered. |
Regular price
From $50.19
Sale price
From $50.19
Regular price
Unit price
/per
| Sutton Tools |
Diameter (metric)
M3,M4,M5,M6,M8,M10
|
Choose your option
Sutton T209 Metric Spiral Flute Tap - R15 H - Cobalt Steel Blue
Sutton T209 Metric Spiral Flute Tap - R15 H - Cobalt Steel Blue
SKU: A0013648
Hurry up, only 6 items left in stock.
The Sutton T209 Metric Spiral Flute Tap by Sutton Tools is a 0 made from Powdered Metallurgy- High Speed Steel Cobalt (PM-HSS Co8%). It provides 100 mm l1 length and is suitable for Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Quenched & Tempered.
