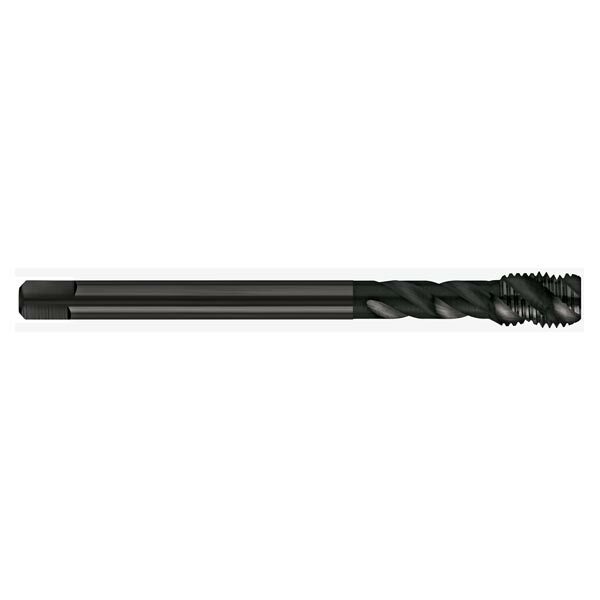

Sutton T249 M6 x 0.75 Spiral Flute Tap R45 VA DH - HSSE - Steam Oxide - DIN 374
Available
The Sutton T249 is a spiral flute tap (R45 spiral, VA DH designation) for metric fine (MF) threads, made from premium grade high speed steel (HSSE) with a blue steam-oxide finish. This listing covers 7 sizes from M6 x 0.75 to M14 x 1.5.
The 45° right-hand spiral flute suits blind holes in long chipping materials: the high helix angle curls the chips and transports them back out of the hole. The tap cuts on reversal, so the flutes have rake on both front and back faces. The chamfer is Form C (2.5 x P), generally for blind holes.
The thread tolerance is ISO 2 / 6H. The tap is built to DIN 374: reduced shank with square drive.
Where this product is used
- Use in stainless steels and high strength steels up to 1000 N/mm2.
- Blind holes.
- Suitable for synchronous tapping in machine operations.
- Depths up to approx. 3 x d1.
Design features
- Premium grade high speed steel (HSSE). The vanadium grade gives high wear resistance and toughness for most tapping applications.
- Blue steam-oxide finish for ferrous metals; it helps prevent chip build-up on the cutting edges and carries lubricant well.
- 3 flutes.
- 45° right-hand spiral flute.
- Form C chamfer, 2.5 x P.
- Thread tolerance ISO 2 / 6H.
- DIN 374 construction, reduced shank with square drive.
Sizes

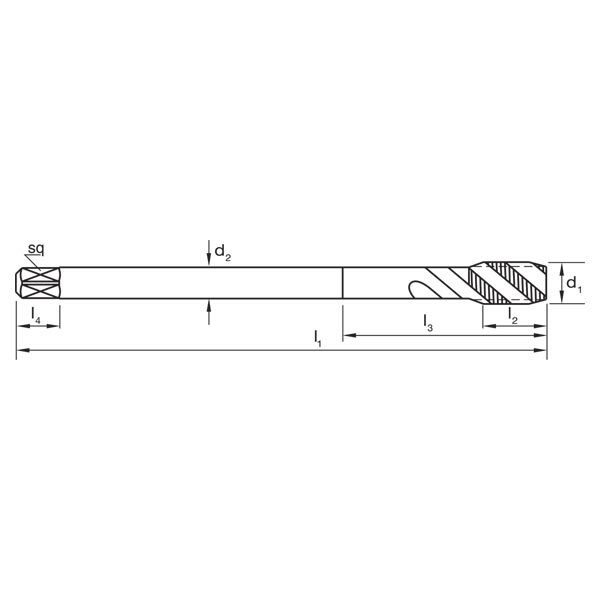

Dimensions are in millimetres. Item numbers are the Sutton catalogue numbers. If you are not sure which tapping drill to use, try our tap drill size selector.
| Item no. | Thread size | Pitch (mm) | Tapping drill (mm) | l1 overall (mm) | l2 thread (mm) | d2 shank (mm) | sq square (mm) | l4 square length (mm) | Flutes |
|---|---|---|---|---|---|---|---|---|---|
| T249 0604 | M6 x 0.75 | 0.75 | 5.3 | 80 | 8 | 4.5 | 3.4 | 6 | 3 |
| T249 0805 | M8 x 1 | 1 | 7 | 90 | 8 | 6 | 4.9 | 8 | 3 |
| T249 1005 | M10 x 1 | 1 | 9 | 90 | 10 | 7 | 5.5 | 8 | 3 |
| T249 1006 | M10 x 1.25 | 1.25 | 8.8 | 100 | 13 | 7 | 5.5 | 8 | 3 |
| T249 1205 | M12 x 1 | 1 | 11 | 100 | 14 | 9 | 7 | 10 | 3 |
| T249 1206 | M12 x 1.25 | 1.25 | 10.8 | 100 | 14 | 9 | 7 | 10 | 3 |
| T249 1407 | M14 x 1.5 | 1.5 | 12.5 | 100 | 16 | 11 | 9 | 12 | 3 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | T249 |
| Type | Spiral flute tap |
| Thread series | Metric fine (MF) |
| Material | HSSE |
| Finish | Steam Oxide |
| Designation | VA DH |
| Spiral | R45 (45° right-hand) |
| Chamfer | Form C / 2.5 x P |
| Thread tolerance | ISO 2 / 6H |
| Standard | DIN 374 |
| Flutes | 3 |
| Sizes in this listing | 7 sizes, M6 x 0.75 to M14 x 1.5 |
