Description
Description

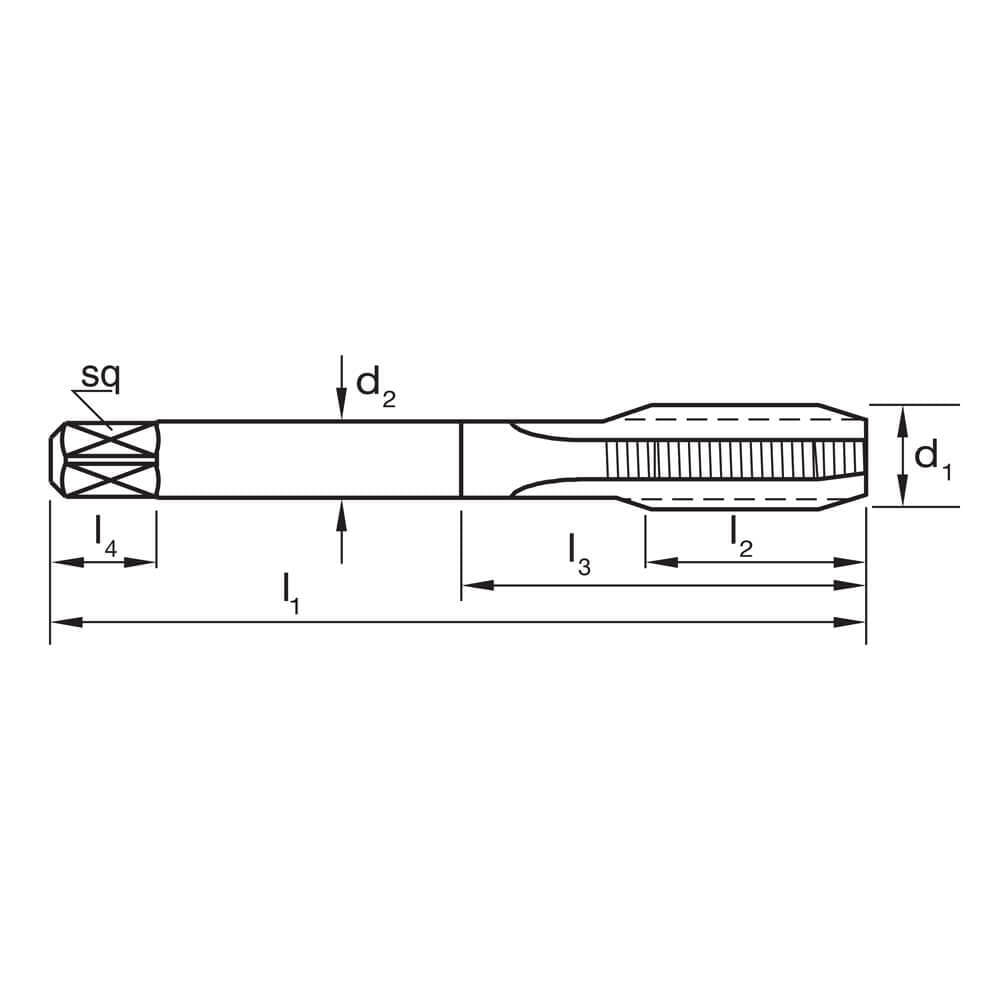

Dimensions
- d1: G 1/8
- d2 (mm): 8
- l1 (mm): 59
- l2 (mm): 15
- l4 (mm): 9
- sq: 6.3
- z: 4
- Drill Size (mm): 8.8 (drill)
- TPI: 28 (TPI)
Features
- General Purpose use for materials up to approx. 1000 N/mm2
- Through & blind holes
- Suitable for both hand and machine operations
- Depths up to approx. 1 x d1
Specifications
- Designation: N (for normal general purpose type materials)
- Material: High Speed Steel (HSS)
- Finish: Bright
- Max Cut Depth: 1xD
- Shank Form: Reduced Shank (with square drive)
- X: als
- Type: Straight Flute
- Standard: ISO2284
- Thread Form: ISO G Parallel Series 55° (G-BSPF)
- Nut Tolerance: Z3
- Lead: Intermediate
Applications
- Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
- Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
- Steel - Low alloy & cast < 5% of alloying elements: Annealed
Specifications
Specifications
Dimensions
- d1: G 1/8
- d2 (mm): 8
- l1 (mm): 59
- l2 (mm): 15
- l4 (mm): 9
- sq: 6.3
- z: 4
- Drill Size (mm): 8.8 (drill)
- TPI: 28 (TPI)
Specifications
- Designation: N (for normal general purpose type materials)
- Material: High Speed Steel (HSS)
- Finish: Bright
- Max Cut Depth: 1xD
- Shank Form: Reduced Shank (with square drive)
- X: als
- Type: Straight Flute
- Standard: ISO2284
- Thread Form: ISO G Parallel Series 55° (G-BSPF)
- Nut Tolerance: Z3
- Lead: Intermediate
Applications
Applications
Applications
- Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
- Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
- Steel - Low alloy & cast < 5% of alloying elements: Annealed
Features & Benefits
Features & Benefits
Features
- General Purpose use for materials up to approx. 1000 N/mm2
- Through & blind holes
- Suitable for both hand and machine operations
- Depths up to approx. 1 x d1
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

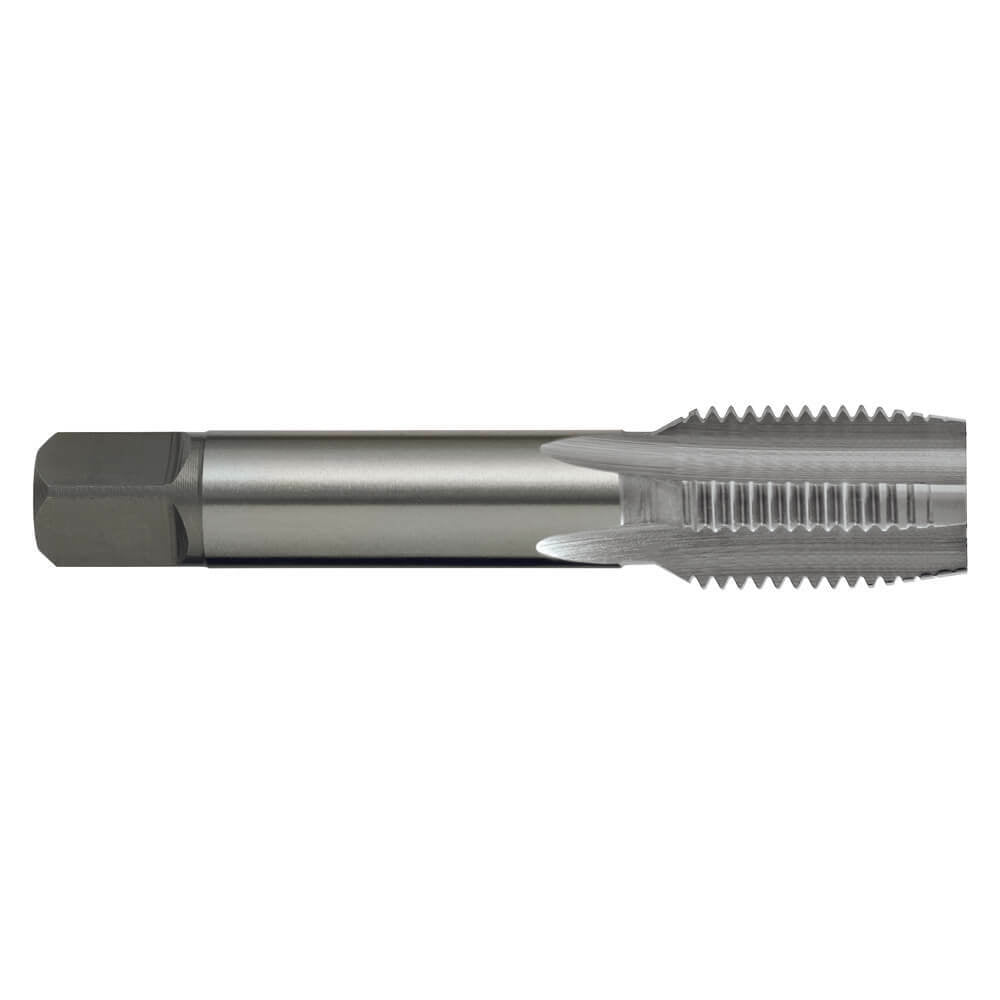

Sutton T480 G-BSPF Straight Flute Tap - Intermediate - HSS
Sutton T480 G-BSPF Straight Flute Tap - Intermediate - HSS
SKU: A0015775
- Wide Range
- Reliable Services
- Proven Trust
Available
The Sutton T480 G-BSPF Straight Flute Tap by Sutton Tools is a 0 made of High Speed Steel (HSS). It offers Drill Size (mm) 45.5 (drill) and is suitable for Steel - Low alloy & cast < 5% of alloying elements: Annealed.
