Sutton T670 M8 x 1.25 Straight Flute Tap GGG - Carbide VHM - TiCN - DIN 371
Available

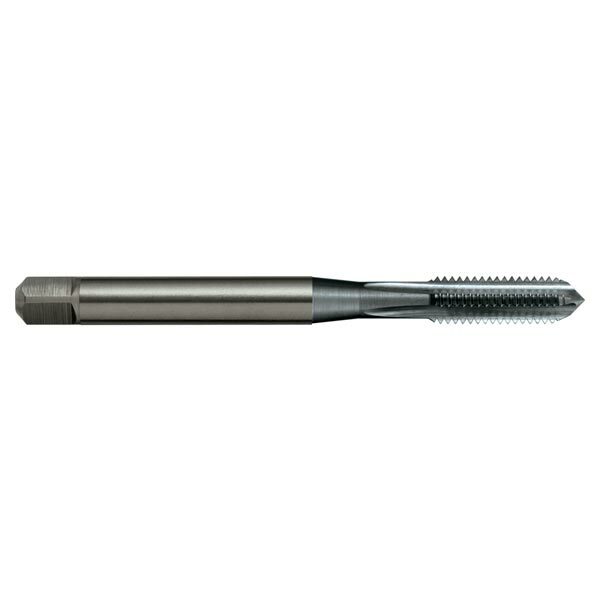

The Sutton T670 is a straight flute tap (GGG designation) for metric coarse (M) threads, made from sub-micron grade solid carbide (VHM) with a TiCN coating. This listing covers 3 sizes from M6 x 1 to M10 x 1.5.
Straight flutes suit through or blind holes, but they hold only a small amount of chips and do not transport them axially, so deep holes are best avoided except in short chipping materials. The chamfer is Form C (2.5 x P), generally for blind holes.
The thread tolerance is 6H. The tap is built to DIN 371: reinforced shank with square drive.
Where this product is used
- VHM, for use in Al >10% Si & cast iron (GGG).
- Through & blind holes.
- Depths up to 3 x d1.
Design features
- Sub-micron grade solid carbide (VHM). Sub-micron carbide with maximum toughness and high hardness, for tapping hardened steel.
- TiCN coating for abrasive materials such as cast iron and aluminium alloys, and adhesive materials such as copper and copper-based alloys.
- 4 flutes.
- Form C chamfer, 2.5 x P.
- Thread tolerance 6H.
- DIN 371 construction, reinforced shank with square drive.
Sizes
Dimensions are in millimetres. Item numbers are the Sutton catalogue numbers. If you are not sure which tapping drill to use, try our tap drill size selector.
| Item no. | Thread size | Pitch (mm) | Tapping drill (mm) | l1 overall (mm) | l2 thread (mm) | l3 (mm) | d2 shank (mm) | sq square (mm) | l4 square length (mm) | Flutes |
|---|---|---|---|---|---|---|---|---|---|---|
| T670 0600 | M6 x 1 | 1 | 5.1 | 80 | 19 | 30 | 6 | 4.9 | 8 | 4 |
| T670 0800 | M8 x 1.25 | 1.25 | 6.9 | 90 | 22 | 35 | 8 | 6.2 | 9 | 4 |
| T670 1000 | M10 x 1.5 | 1.5 | 8.6 | 100 | 24 | 39 | 10 | 8 | 11 | 4 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | T670 |
| Type | Straight flute tap |
| Thread series | Metric coarse (M) |
| Material | solid carbide (VHM) |
| Finish | TiCN |
| Designation | GGG |
| Chamfer | Form C / 2.5 x P |
| Thread tolerance | 6H |
| Standard | DIN 371 |
| Flutes | 4 |
| Sizes in this listing | 3 sizes, M6 x 1 to M10 x 1.5 |
Related products
Related Sutton taps: T671 Metric Coarse Straight Flute Tap GGG - Carbide VHM - TiCN - DIN 376, T392 Metric Coarse Straight Flute Tap Oversize Bottoming - HSS - Bright - ISO 529, T391 Metric Coarse Straight Flute Tap Left Hand Bottoming - HSS - Bright - ISO 529, T390 Metric Coarse Straight Flute Tap Left Hand Intermediate - HSS - Bright - ISO 529, T389 Metric Coarse Straight Flute Tap Left Hand Taper - HSS - Bright - ISO 529.
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Sutton T670 Metric Coarse Straight Flute Tap GGG - Carbide VHM - TiCN - DIN 371: M8
SKU: A0015878 | Model: T6700800
Diameter (metric) M8. Features
The Sutton T670 is a straight flute tap (GGG designation) for metric coarse (M) threads, made from sub-micron grade solid carbide (VHM) with a TiCN coating. This listing covers 3 sizes from M6 x 1 to M10 x 1.5.
Straight flutes suit through or blind holes, but they hold only a small amount of chips and do not transport them axially, so deep holes are best avoided except in short chipping materials. The chamfer is Form C (2.5 x P), generally for blind holes.
The thread tolerance is 6H. The tap is built to DIN 371: reinforced shank with square drive.
