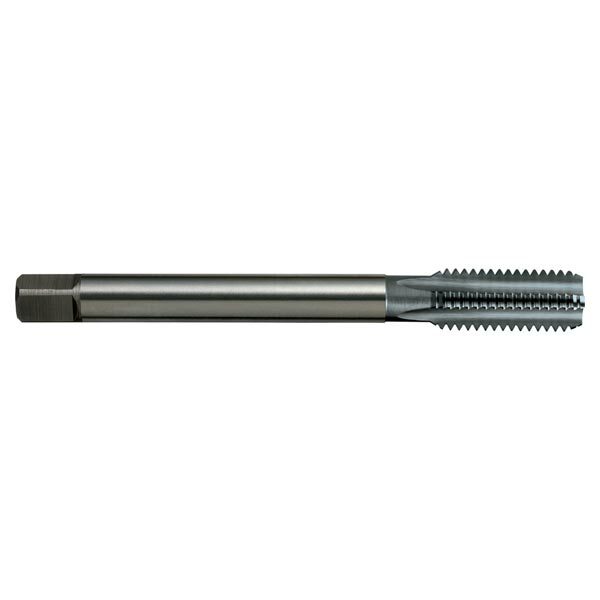

Sutton T671 Metric Straight Flute Tap - Carbide TiCN1

Sutton T671 Metric Straight Flute Tap - Carbide TiCN2

Sutton T6711600 Metric M16 x 2 Straight Flute Tap - Carbide TiCN

Sutton T6711200 Metric M12 x 1.75 Straight Flute Tap - Carbide TiCN

Description +

Dimensions

d1: M12
d2 (mm): 9
l1 (mm): 110
l2 (mm): 28
l4 (mm): 10
Square Size (mm): 7
z: 4
Drill Size (mm): 10.3 (drill)
Pitch (mm): 1.75 (pitch)

Features

VHM
for use in Al >10% Si & cast iron (GGG)
Through & blind holes
Depths up to 3 x d1

Specifications

Designation: GGG (for cast iron materials)
Material: Sub-Micron Grade Solid Carbide (VHM-ISO K15-K30)
Finish: Titanium Carbonitride (TiCN)
Max Cut Depth: 3xD
Shank Form: Reduced Shank (with square drive)
X: als
Type: Straight Flute
Standard: DIN376
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: 6H
Lead: Form C / 3 x P

Applications

Cast Iron, Grey (GG) - Ferritic / Pearlitic
Cast Iron, Grey (GG) – Pearlitic
Cast Iron, Nodular (GGG) – Ferritic
Cast Iron, Nodular (GGG) – Pearlitic
Aluminum & Magnesium, cast alloy >12% Si - Non Heat Treatable
Copper & Copper alloys (Brass/Bronze) - Brass (CuZn, CuSnZn)
Cast Iron - Chilled: Cast

Specifications +

Dimensions

d1: M12
d2 (mm): 9
l1 (mm): 110
l2 (mm): 28
l4 (mm): 10
Square Size (mm): 7
z: 4
Drill Size (mm): 10.3 (drill)
Pitch (mm): 1.75 (pitch)

Specifications

Designation: GGG (for cast iron materials)
Material: Sub-Micron Grade Solid Carbide (VHM-ISO K15-K30)
Finish: Titanium Carbonitride (TiCN)
Max Cut Depth: 3xD
Shank Form: Reduced Shank (with square drive)
X: als
Type: Straight Flute
Standard: DIN376
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: 6H
Lead: Form C / 3 x P

Application +

Applications

Cast Iron, Grey (GG) - Ferritic / Pearlitic
Cast Iron, Grey (GG) – Pearlitic
Cast Iron, Nodular (GGG) – Ferritic
Cast Iron, Nodular (GGG) – Pearlitic
Aluminum & Magnesium, cast alloy >12% Si - Non Heat Treatable
Copper & Copper alloys (Brass/Bronze) - Brass (CuZn, CuSnZn)
Cast Iron - Chilled: Cast

Features & Benefits +

Features

VHM
for use in Al >10% Si & cast iron (GGG)
Through & blind holes
Depths up to 3 x d1

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sutton T671 Metric Straight Flute Tap - Carbide TiCN

SKU: A0015880

$590.56

Inc. GST

Buy It Now

Available

The Sutton T671 Metric Straight Flute Tap by Sutton Tools is a 0 with Sub-Micron Grade Solid Carbide material. It provides a Drill Size of 10.3 mm (drill) and is suitable for Cast Iron, Nodular (GGG) ferritic components.

FREE SHIPPING OVER $299*
RETURN AND EXCHANGE POLICY

Resources

Sutton-Tools-Taps-Dies-Threading-Catalogue

Sutton-Tools-ISO-Taps-Catalogue
