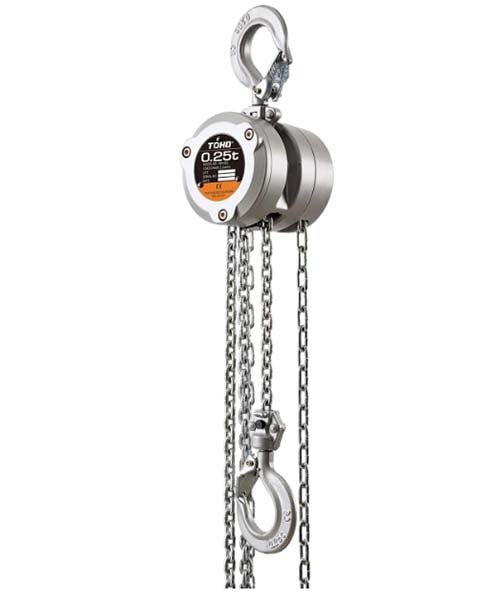

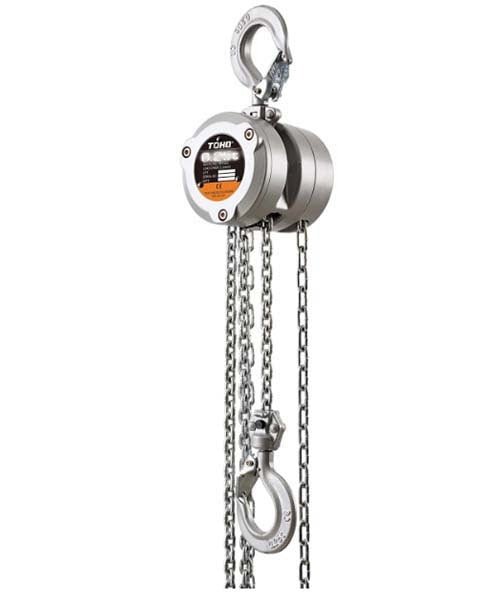

Toho lightweight aluminium chain block, 0.5T load capacity

The Toho aluminium chain block is a lightweight manual (hand chain) hoist in 0.25 tonne (250kg) and 0.5 tonne (500kg) capacities, each with a 2.5 m lift. The aluminium body keeps the weight down to 2.14kg on the 0.25 tonne model and 3.85kg on the 0.5 tonne model, and an enclosed cover protects the mechanism from dust and corrosion.

The chain blocks comply with AS/NZS 1418.2. A test certificate and instruction manual are supplied with every chain block.

Where this product is used

• Light rigging and lifting in workshops, on site and in maintenance work where the block is carried to the job
• Lifting where no power supply is available

Features

• Lightweight aluminium construction, stated to be 40 percent lighter than regular chain blocks
• Compact and portable
• Enclosed cover, anti-dust and anti-corrosion
• 0.25 tonne (250kg) and 0.5 tonne (500kg) capacities with a 2.5 m lift
• Test certificate and instruction manual supplied with every chain block

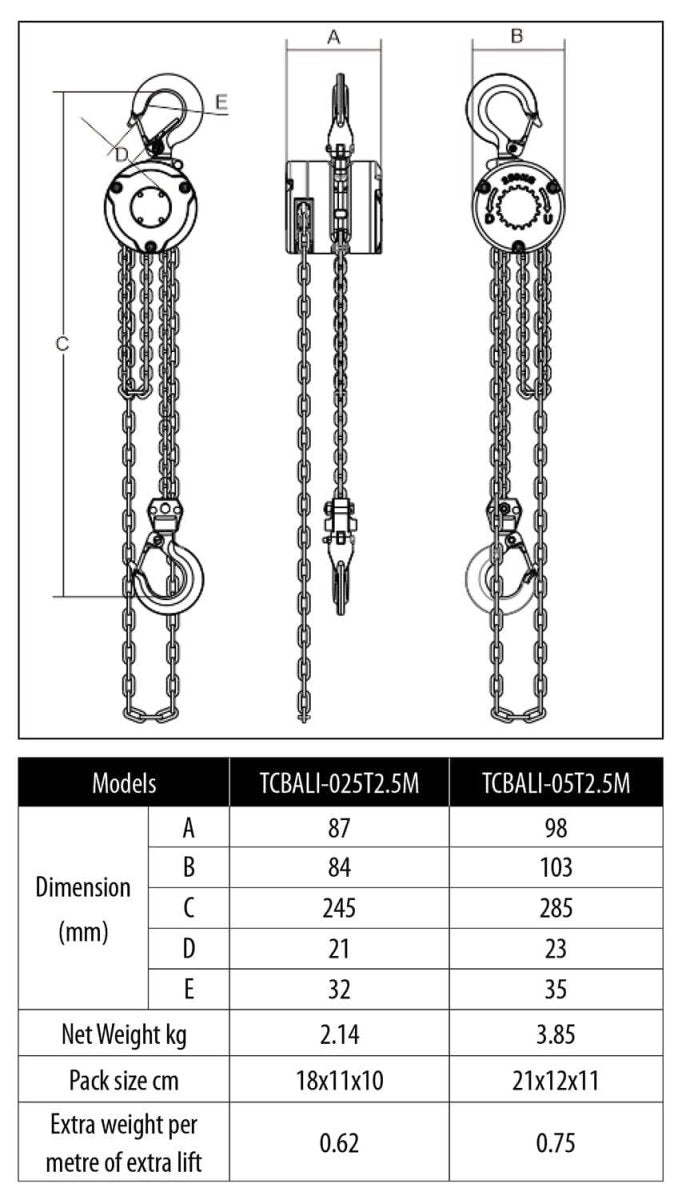

Key specifications

Choosing the right option

Choose the capacity for the heaviest load, allowing for the weight of any rigging used with the block. For a stainless steel block for washdown or corrosive areas see the Toho stainless steel chain blocks. Lifting equipment must be used within its marked working load limit (WLL), inspected before each use, and selected and used in line with your site lifting procedure and the relevant Australian Standards.

To move the load along a beam see the: Toho stainless steel push trolley, Toho Grade S bow shackles.
